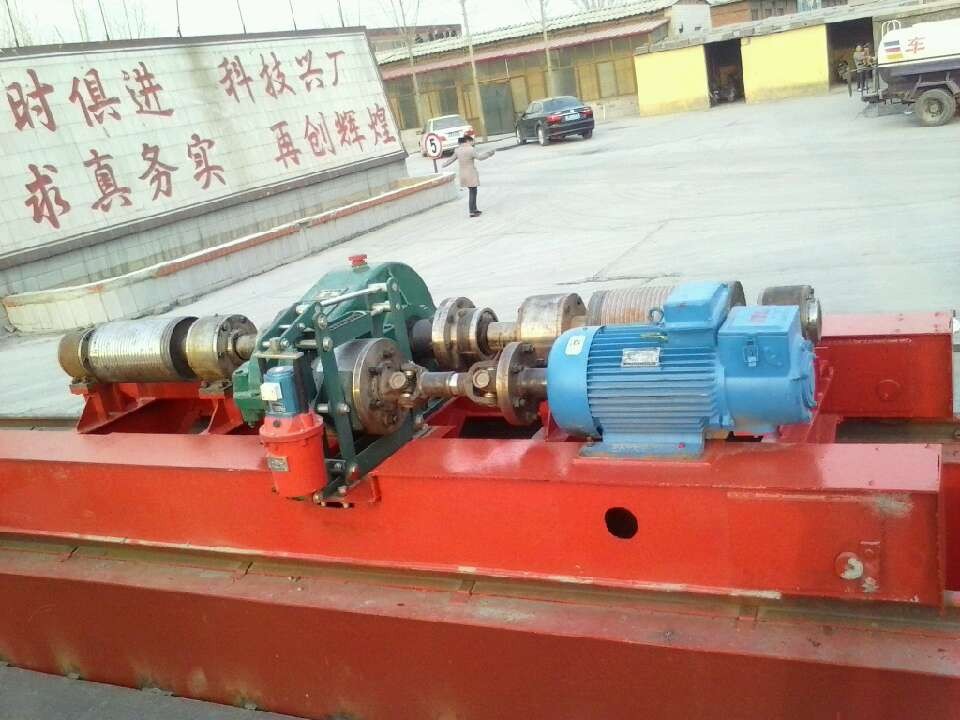

厂家直供起重机 电动单双梁桥式起重机 高品质 高保障
'
以人为本 诚信为先
| 起重量Lifting Weight | t | 32/5 | 50/10 |
| 跨度Span | m | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 |
| 最大起升高度Max.Lifting Height | 主Primary | 16 | 12 |
| 副Secondary | 18 | 16 |
速度
speed | 起升Lift | 主Primary | A5 | m/min | 7.51 | 5.9 |
| A6 | 9.5 | 7.8 |
| 副Secondary | A5 | 19.7 | 13.2 |
| A6 | 19.7 | 13.2 |
| 小车运行handcart travel | 42.4 | 38.5 |
| 大车运行cart travel | A5 | 87.6 | 74.2 | 75.2 | 85.9 |
| A6 | 101.4 | 101.8 | 85.5 | 87.3 |
电动机
Motor | 起升Lift | 主Primary | A5 | kw | YZR280S-10Z/42 | YZR280M-10Z/55 |
| A6 | YZR280M-8/55 | YZR315S-8/75 |
| 副Secondary | YZR180-6Z/17 | YZR200L-6Z/26 |
| 小车运行handcart travel | YZR160M1-6/6.3 | YZR160M2-6/8.5 |
| 大车运行cart travel | A5 | YZR160M2-6/8.5×2 | YZR160L-6/13×2 | YZR180L-8/13×2 |
| A6 | YZR160L-6/11×2 | YZR180L-8/11×2 | YZR200L-8/15×2 |
主要尺寸
(mm)
Main Size | H | A5 | 2343 | 2345 | 2475 | 2726 | 2732 |
| A6 | 2343 | 2347 | 2477 | 2726 | 2728 | 2734 |
| H1 | A5 | 2580 | 2584 | 2614 | 2644 | 2794 | 2944 | 3094 | 3194 | 2531 | 2526 | 2532 | 2632 | 2782 | 2932 | 3082 | 3182 |
| A6 | 2580 | 2586 | 2616 | 2646 | 2796 | 2946 | 3096 | 3196 | 2531 | 2528 | 2534 | 2634 | 2784 | 2934 | 3084 | 3184 |
| H2 | A5 | 940+H0 | 1035+H0 | 1070+H0 | 1090+H0 |
| A6 | 940+H0 | 1070+H0 | 1090+H0 | 1130+H0 |
| H3 | A5 | 705 | 701 | 571 | 1020 | 1014 |
| A6 | 703 | 699 | 571 | 569 | 1020 | 1018 | 1012 |
| H4 | 790 | 948 |
| h | 820 | 675 |
| k | 2500 |
| | A5 | 6474 | 6620 | 6924 | 6724 | 6824 | 7144 |
| A6 | 6574 | 6744 | 7044 | 6944 | 7024 |
| W | 4650 | 4700 | 5000 | 4800 | 5000 |
| W | 2800 | 3580 |
| b | 260 | 300 |
| | A5 | 90 | 94 | 244 | 264 | 414 | 564 | 714 | 814 | -79 | 96 | 102 | 252 | 402 | 552 | 702 | 802 |
| A6 | 90 | 96 | 246 | 266 | 416 | 566 | 716 | 816 | -79 | 98 | 104 | 254 | 404 | 554 | 704 | 804 |
| S1 | 1070 | 1005 |
| S2 | 2050 | 2200 |
| S3 | 1700 | 2000 |
| S4 | 2680 | 3195 |
重量
Weight | 小车handcart | A5 | t | 10.9 | 15.5 |
| A6 | 11.7 | 16 |
| 总重Total Weight | A5 | 27 | 30 | 33 | 38 | 41 | 46 | 50 | 54 | 37 | 40 | 44 | 49 | 53 | 58 | 62 | 68 |
| A6 | 28 | 31 | 35 | 40 | 43 | 48 | 52 | 56 | 40 | 43 | 48 | 52 | 56 | 62 | 67 | 72 |
| 最大轮压Max.Wheel Pressure | A5 | t | 24.8 | 26.4 | 27.8 | 30.1 | 31.1 | 33.1 | 34.4 | 35.4 | 36.5 | 39.9 | 42.0 | 43.0 | 45.6 | 47.4 | 48.7 | 50.3 |
| A6 | 26.4 | 28.2 | 29.6 | 31.0 | 32.4 | 34.0 | 35.0 | 36.4 | 37.9 | 40.3 | 42.5 | 44.4 | 46.0 | 47.8 | 49.2 | 50.8 |
| 荐用钢轨Steel track | | QU70 □90×90 | QU80 □100×100 |
| 电源Power Supply | | 三相交流3-Phase A.C.50Hz,380V |
'
