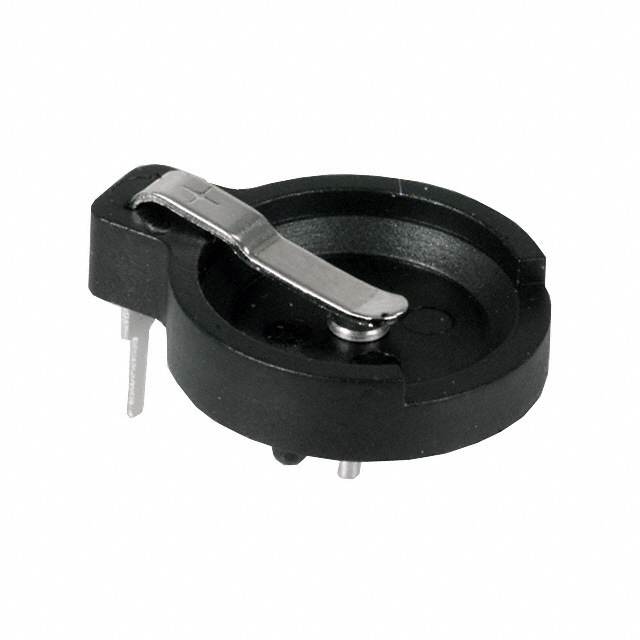

FOR 12mm COIN CELL HOLDERS

DESIGN ADVANTAGES…
• Low profile for high density packaging
• Contacts feature clearly marked polarities to help guard against improper insertion.
• Reliable spring tension assures low contact resistance
• Retains battery securely to withstand shock and vibration
• Unique notched slots assure quick and easy battery insertion and replacement
• Base material UL Rated 94V-0. Impervious to most industrial solvents
• Operating temperature range: -60°F to +293°F (-50°C to +145°C)
• Advanced air-flow design pattern enhances air circulation around battery
