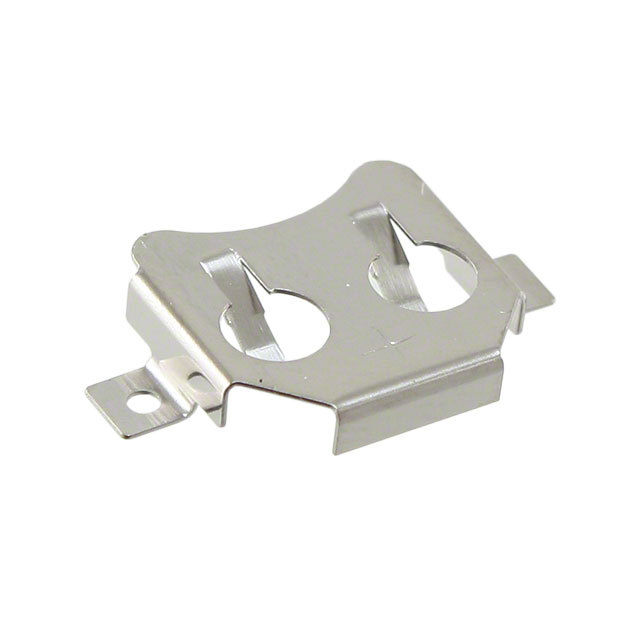

Battery retainers are suited for high density PCB packaging. Engineered with reliable spring tension,these contacts assure low resistance while firmly securing the battery within the retainer.
• Compatible with all wave and reflow operations

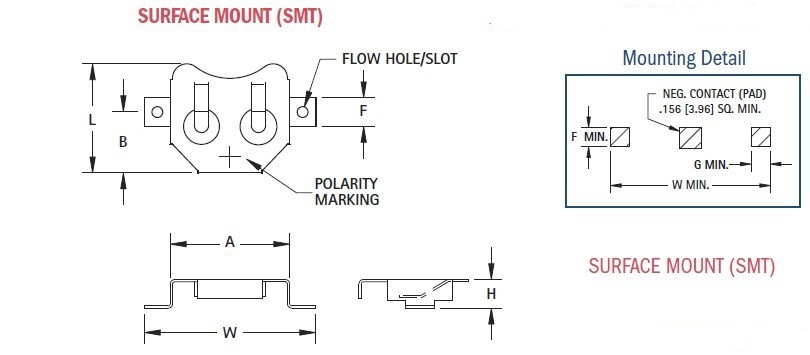

• Solder tails located outside of retainer body which facilitates visual inspection of the solder joints
• Flow-hole solder tail designed for increased joint strength
• Compatible with most vacuum and mechanical pick & place assembly systems
• Matte Tin Plate for lower soldering temperatures ideal where other temperature sensitive components are being used
• Tin-Nickel plated retainers are ideal for lead free, high temperature soldering applications
• All conductive polystyrene carrier tape meets ANSI/EIA-481 standards

MATERIAL: .010 (.25) Phosphor Bronze
