供应APEC富鼎AP95T07GP-HF原装现货，假一赔十！

10台起批

￥1.2

中国深圳

产品属性

图文详情

品牌推荐

品牌

APEC富鼎

型号

AP95T07GP-HF

类型

绝缘栅型场效应管/MOS场效应管

沟道类型

N型沟道

导电方式

增强型

适合频率

中频

封装外形

P-DIT/塑料双列直插

材质

GE-N-FET锗N沟道

工作电压

75V

工作电流

80A

最大允许功耗

300W

用途

开关

外形尺寸

10mm

加工定制

否

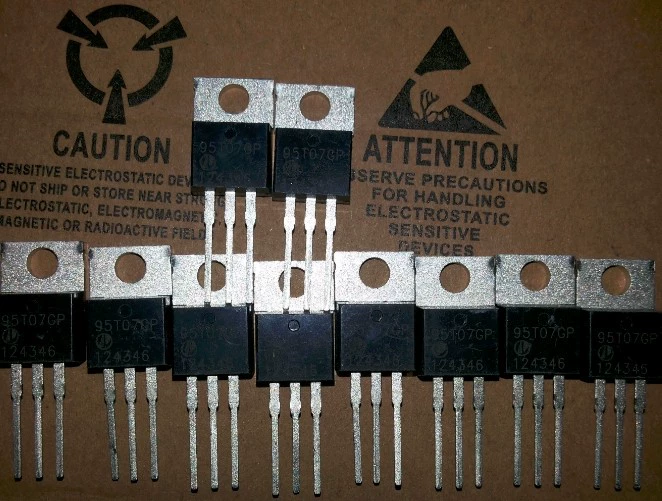

AP95T07GP To-220铁头电压：75V 电流：80A 功率：300W

原装台湾富鼎APEC非拆机、散新货长期现货优势供应

AP95T07

part No.	Vds	Vgs	Rds(on) / Max(mΩ) Vgs@10V	Rds(on) / Max(mΩ) Vgs@4.5V	Rds(on) / Max(mΩ) Vgs@2.5V	Rds(on) / Max(mΩ) Vgs@1.8V	Qg (nC)	Qgs (nC)	Qgd (nC)	Id(A)	Pd(W)	Configuration	Package	DataSeet
AP95T07AGP-HF	75V	±20V	4.8				150	13	43	170	680	Single N	TO-220
AP95T07GP-HF	75V	±20V	5				85	25	36	80	300	Single N	TO-220
AP95T07GS-HF	75V	±20V	5				85	25	36	80	300	Single N	TO-263
AP95T07BGP-HF	75V	±20V	5				96	25	40	125	2	Single N	TO-220
AP95T07BGS-HF	75V	±20V	5				96	25	40	125	3.13	Single N	TO-263

part No.	Vds	Vgs	Rds(on) / Max(mΩ) Vgs@10V	Rds(on) / Max(mΩ) Vgs@4.5V	Rds(on) / Max(mΩ) Vgs@2.5V	Rds(on) / Max(mΩ) Vgs@1.8V	Qg (nC)	Qgs (nC)	Qgd (nC)	Id(A)	Pd(W)	Configuration	Package
AP9560GH-HF	-40V	±20V	12	16			42	6	24	-52	54.3	Single P	TO-252
AP9561GH-HF	-40V	±20V	16	28			25	4.4	18	-45	54.3	Single P	TO-252
AP9561GI-HF	-40V	±20V	16	28			25	5	17	-36	33.7	Single P	TO-220CFM
AP9561GP-HF	-40V	±20V	16	28			25	4.4	18	-45	54.3	Single P	TO-220
AP9563GK-HF	-40V	±25V	40	60			20	4	10	6.8	2.8	Single P	SOT-223
AP9560GP-HF	-40V	±20V	12.5	16			42	6	24	51	54.3	Single P	TO-220
AP9561GJ-HF	-40V	±20V	16	28			25	4.4	18	-45	54.3	Single P	TO-251
AP9561GM-HF	-40V	±20V	18	30			26	4	17	-9.4	25	Single P	SO-8
AP9562GP-HF	-40V	±20V	32	50			15	3	9	27	39	Single P	TO-220
AP9563GH-HF	-40V	±25V	40	60			16	2.5	9	-26	39	Single P	TO-252
AP9563GJ-HF	-40V	±25V	40	60			16	2.5	9	-16	39	Single P	TO-251
AP9563GM-HF	-40V	±25V	40	60			19	5	8	-6	2.5	Single P	SO-8
AP9564GM-HF	-40V	±25V	28	40			27	6	14	-7.3	2.5	Single P	SO-8
AP9565AGH-HF	-40V	±20V	42	60			12	2.3	6.9	-18.5	25	Single P	TO-252
AP9565AGJ-HF	-40V	±20V	42	60			12	2.3	6.9	-18.5	25	Single P	TO-251
AP9565BGH-HF	-40V	±20V	52	90			7.8	1.7	4.8	-17	25	Single P	TO-252
AP9565BGJ-HF	-40V	±20V	52	90			7.8	1.7	4.8	17	25	Single P	TO-251
AP9565GEH	-40V	±16V	38	58			10	2	6	-24	35.7	Single P	TO-252
AP9565GEJ	-40V	±16V	38	58			10	2	6	-24	35.7	Single P	TO-251
AP9565GEM	-40V	±16V	38	48			12.8	2.1	6.3	-6.5	2.5	Single P	SO-8
AP9566GH	-40V	±20V	65	100			6.5	1.6	3.6	-13.5	20.8	Single P	TO-252
AP9566GM-HF	-40V	±20V	72	100			6.5	1.7	3.5	-4.5	2.5	Single P	SO-8
AP9567GH-HF	-40V	±25V	50	70			12	2.5	7	-22	34.7	Single P	TO-252
AP9567GJ-HF	-40V	±25V	50	70			11	3	6	-22	34.7	Single P	TO-251
AP9567GM	-40V	±25V	50	80			11	3	5	-6	2.5	Single P	SO-8
AP9569GH-HF	-40V	±20V	90	130			7	2	4	-14	26	Single P	TO-252
AP9569GJ-HF	-40V	±20V	90	130			7	2	4	-14	26	Single P	TO-251
AP9569GM	-40V	±20V	90	130			8	1.6	4	-4.2	2.5	Single P	SO-8
AP9573GH-HF	-60V	±20V	95	150			9	1.5	6	-13.5	31	Single P	TO-252
AP9575AGH-HF	-60V	±30V	64				35	5	12	-17	36	Single P	TO-252
AP9575AGI-HF	-60V	±20V	64				35	5	12	--17	31.3	Single P	TO-220CFM
AP9575AGJ-HF	-60V	±30V	64				35	5	12	-17	36	Single P	TO-251
AP9575GH-HF	-60V	±25V	90	120			14	3	8	-15	31.3	Single P	TO-252
AP9575GJ-HF	-60V	±25V	90	120			14	3	8	-15	31.3	Single P	TO-251
AP9575GM-HF	-60V	±25V	90	120			14	3.3	8	-4	2.5	Single P	SO-8
AP9575GP-HF	-60V	±25V	70	90			14	3	8	-16	31.3	Single P	TO-220
AP9575GS-HF	-60V	±25V	70	90			14	3	8	-16	31.3	Single P	TO-263
AP9576GH	-60V	±20V	100	120			14	3	6	-14	36.8	Single P	TO-252
AP9576GJ	-60V	±20V	100	120			14	3	6	-14	36.8	Single P	TO-251
AP9576GM-HF	-60V	±25V	90	120			13	2	5	-4	2.5	Single P	SO-8
AP9579GS-HF	-60V	±20V	25	30			45	7.5	26	-45	3.13	Single P	TO-263
AP9581GS-HF	-80V	±20V	15	20			72	11	45	60	165	Single P	TO-263
AP9585GH	-80V	±25V	180	200			19	5	7	-11.2	44.6	Single P	TO-252
AP9585GJ	-80V	±25V	180	200

本公司代销APEC富鼎MOS管！种类繁多，不能一一叙述，有意者可联系：18028744011（关生）QQ:474224719
