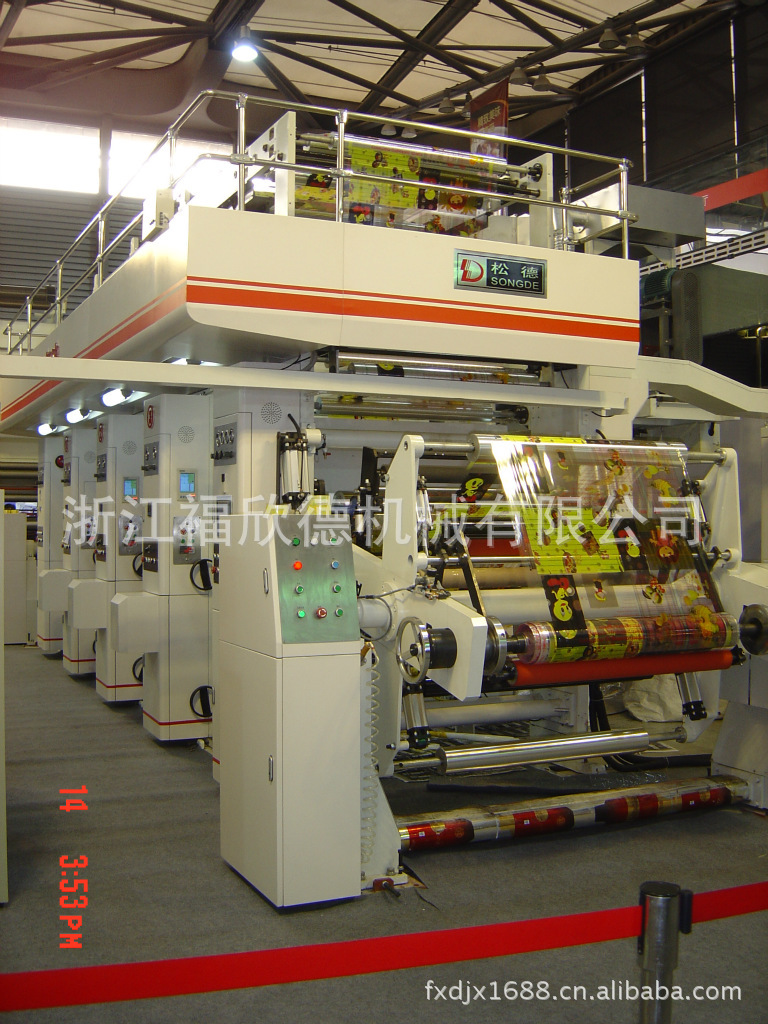

产品简介:主要用于4色的的较复杂的图案的专色印刷或双面2色同时印刷或层次版印刷

Product brief introduction:main used for onlying have four color of of printing or two-sided dichromatic in the meantime printing or layer version printing

印刷色数

4色（任意增减）

Printing color

4 Special color

印刷宽度

1100mm

Matecial feeding width

1100mm

过料宽度

1200 mm

Lead to anticipate width

1200mm

印刷长度

190~1016mm(7.5″~40″)、(7.5″~60″)、(7.5″~80″)

printing length

190~1016mm(7.5″~40″)、(7.5″~60″)、(7.5″~80″)

起落版方式

油压

printing plate lifting

Pneumatic

最高机械速度

120米/分

Mechanical speed

120m/min

最高印刷速度

100米/分

printing speed

80m/min

网纹辊

80~170DK       德国

Anilox cylinder

80DK-170DK(Germany)/180LPI-800LPI

套准精度

纵向±0.02mm(手动) / 横向±0.02mm(手动)

Register precision

ongitude:±0.02mm Transverse:±0.02mm

放卷直径

600 mm / 800 mm

Unwinder DIA

600 mm / 800 mm

收卷直径

600 mm / 800 mm

Rewinder DIA

600 mm / 800 mm

压印力

机械调节

Stamping strength

Machinery adjustment

干燥方式

电加热

Dry way

Electric heating

电热

32kw

Electrical heater

32kw

电热送风机

1.1KW

Blower of heater

1.1KW

主马达

5.5KW (减速比1:5) - 台湾

Master motor

5.5KW- Taiwan

主变频

Panasonic变频器调速 - 日本

Master frequency converter

The Panasonic change the Pin machine adjust soon- Japan

行墨马达

370w - 台湾

Inkking motor

370W- Taiwan

普通轴承

日本NSK

Common bearings

NSK in Japan

单向轴承

德国ASNU

One-way bearings

ASNU in Germany

机械尺寸

4m×2.0m×2.7m

Dimension

4m×2.0m×2.7m

承印材料

Accept to print material

PVC  35~70μm                    OPP  20~70μm

BOPP 20~60μm                    PE   35~100μm

NY   20~50μm                    PET  20~60μm

CPP  20~60μm                   纸张 20~150g/㎡

主要配置说明

Main llocation elucidation

1  操作简单方便,套色准确,使用寿命长

The operation is simple convenience, set the color be accurate, service life long

2  采用台湾马达,日本变频调速,节省电,运行波动小

Adoption Taiwan motor, Japan change the Pin adjust soon, economical electricity, circulate motion small

3  落版自动停止行墨马达，起版自动开始行墨装置

Fall a version auto stop line Mo motor, version auto beginning line Mo equip

4  供墨方式为胶网辘刮墨,单面刮刀三套

Provide a Mo way to pare off Mo for the gum net Lu

5  采用特制模数直齿齿轮传动,印刷尺寸准确

Adoption specially made mold number keep Chi wheel gear to spread to move, printing the size be accurate

6  设有吹风发热两套装置,其中发热采用中央恒温控制系统并分组控制，冷风定型装置

Establish to blow breeze to have fever two suits to place, have fever adoption central constant temperature control system to combine cent set control among them, cold breeze already set equip

7  低辊采用德国特殊钢材加工，并经过特殊工艺处理,并电镀10丝厚的硬铬保护层

Low Gun adoption special steel material in Germany process, and through special craft processing, and electroplate 10 silks thick hard chrome protection layer

8  铝合金导轮进行硬质氧化、动平衡、静平衡处理

The aluminum metal alloy lead a round to carry on hard quality to oxidize, move balance, quiet balance processing
