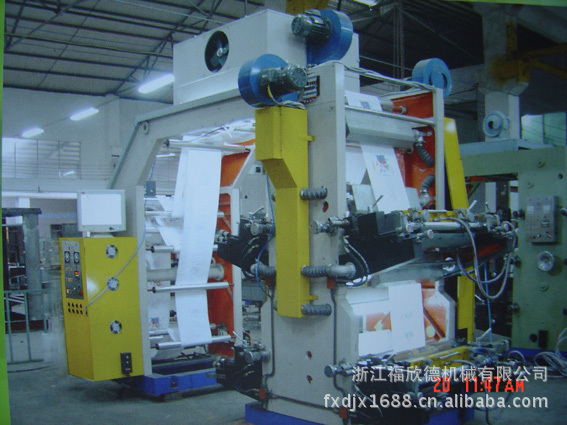

Description: mainly used for 2-color printing or 2-color printing plate

印刷色数

4色（任意增减）

Printing color

4 color

印刷宽度

900mm

Printing width

900mm

过料宽度

920 mm

Lead to anticipate width

920 mm

印刷长度

190-1016mm(7.5″-40″)、(7.5″-60″)、(7.5″-80″)

Printing length

190-1016mm(7.5″-40″)、(7.5″-60″)、(7.5″-80″)

起落版方式

手动、油压或气压系统

Plate lifting pattern

Manual, hydraulic or pneumatic systems

最高机械速度

120米/分

Max speed

120m/min

最高印刷速度

100-150米/分

Max printing speed

100-150m/min

网纹辊

80~170DK

Anilox cylinder

80DK-170DK/180LPI-800LPI

套准精度

纵向±0.15mm(手动) / 横向±0.15mm(手动)

Register precision

ongitude:±0.15mm Transverse:±0.15mm

放卷直径

600 mm /1000 mm

Unwinder diameter

600 mm / 1000 mm

收卷直径

600 mm / 1000 mm

Rewinder diameter

600 mm / 1000 mm

压印力

机械调节

Stamping strength

Machinery adjustment

干燥方式

电加热/红外线

Drying pattern

Electric heating / infrared

电热

6kw

Electrical heater

6kw

电热送风机

2KW

Blower of heater

2KW

主马达

1.5KW (减速比1:5) -台湾

Master motor

1.5KW- Taiwan

主变频

Panasonic变频器调速-日本

Master frequency converter

The Panasonic change the Pin machine adjust soon- Japan

行墨马达

400w - 台湾

Inking motor

400W- Taiwan

普通轴承

日本NSK

Common bearings

NSK in Japan

单向轴承

德国ASNU

One-way bearings

ASNU in Germany

机械尺寸

2.5m×1.7m×2m

Dimension

2.5m×1.7m×2m

 承印材料

Acceptable printing material

PVC  35~70μm                         OPP  20~70μm

BOPP 20~60μm                        PE   35~100μm

NY   20~50μm                          PET  20~60μm

CPP  20~60μm                         纸张Paper 20~150g/㎡

 主要配置说明

Main allocation elucidation

1  操作简单方便,套色准确,使用寿命长

The operation is simple,color register is accurate, service life is long

2  采用台湾马达,日本变频调速,节省电,运行波动小

Taiwanmotor and Japanese transducer is adopted, electricity saving,little moving wave

3  落版自动停止行墨马达，起版自动开始行墨装置（按选择配套）

The printing plate stops the ink motor, and restarts the ink equipment automatically.

4  供墨方式为胶网辘刮墨,单面刮刀两套（选配）

Providing ink by shaving ink of squeegee,two sets of single scraper(optional)

5  采用特制模数直齿齿轮传动,印刷尺寸准确

Special-made wheel gear is adopted for moving, accurately printing dimension

6  设有吹风发热两套装置,其中发热采用中央恒温控制系统并分组控制，冷风定型装置

Equiped with blowing Establish to blower and heater,and the heater adopted in   central constant-temperature system and control them by group

7  低辊采用德国特殊钢材加工，并经过特殊工艺处理,并电镀10丝厚的硬铬保护层

The cylinder use special steel by Germany process,special craft processing, and hard chrome protection layer of 0.1m

8  铝合金导轮进行硬质氧化、动平衡、静平衡处理

The aluminum alloy cylinder with chrome protection,moving balance and static conducting

9.光电纠偏控制系统（选配）

Control system of photoelectric deviation changing (optional)

10.收放卷恒张力全自动控制系统（选配）

Automatic control system of rewinder and unwinder(optional)
