Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Shen Zhen Nyton

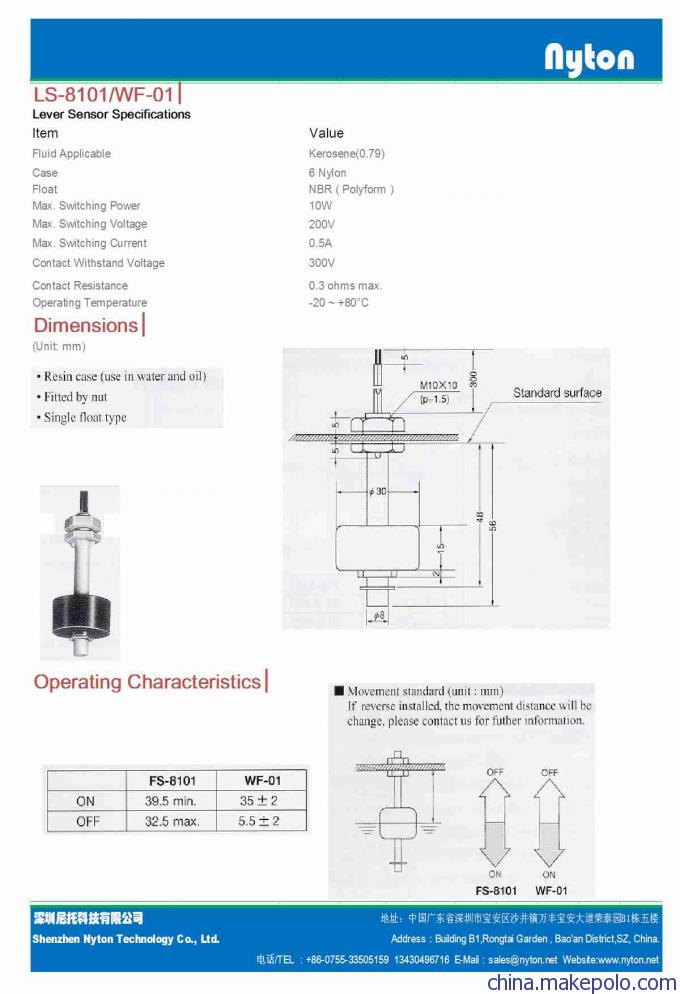

Model Number: LS-8101
Color: Nature
Material: Flame Retardant PP

Packaging & Delivery
Packaging Details:
Inner Packing: 10sets/plastic bag Mater Packing: 500sets/carton
Delivery Period: 7days

Electrical Properties:
Contact Form: A type (Normal open) contact.
Contact Rating: 10W
Switching Voltage: DC200V
witching Current: DC0.5A
Carrying Current: DC 1.0A
Max. Initial Contact Resistance: 300mohms max.
Isulation Resistance :109 ohms min. (DC 100V with Megga)
Breakdown Voltage: DC 250V min. (leakage current 1mA max.)
Electrical Life: 108 operations min. (10mVDC, 10?A, R Loaded)
Shock Resistance: 30G min.
Vibration Resistance: Vibration frequency of 10~55Hz. Amplitude of 1.52mm at (X, Y, Z,) 3 directions, 2 hours.
Mechanical Life: 108 operations min. (without load at switching contact.)
Operating Temperature: -10 ~ 60°c
Operating Humidity : RH80% max.
Application: Indoor
