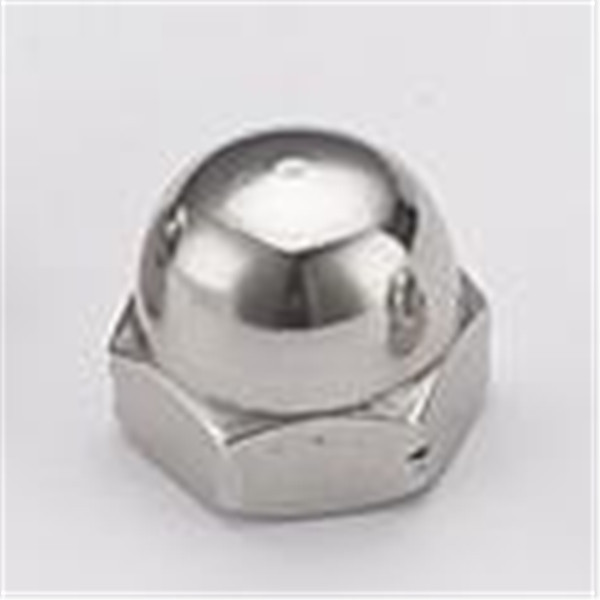

DIN1587 HEXAGON CAP NUTS

d1

M4

M5

M6

M8

M10

M12

M14

M16

M18

M20

M24

P

0.7

0.8

1

1.25

1.5

1.75

2

2

2.5

2.5

3

s

7

8

10

13

16/17

18/19

21/22

24

27

30

36

t max

3.2

4

5

6.5

8

10

11

13

15

16

19

e min

7.66

8.79

11.05

14.38

18.9

21.1

24.49

26.75

30.14

35.53

39.98

h

8

10

12

15

18

22

25

28

32

34

42
