参数标准/Parameter standard

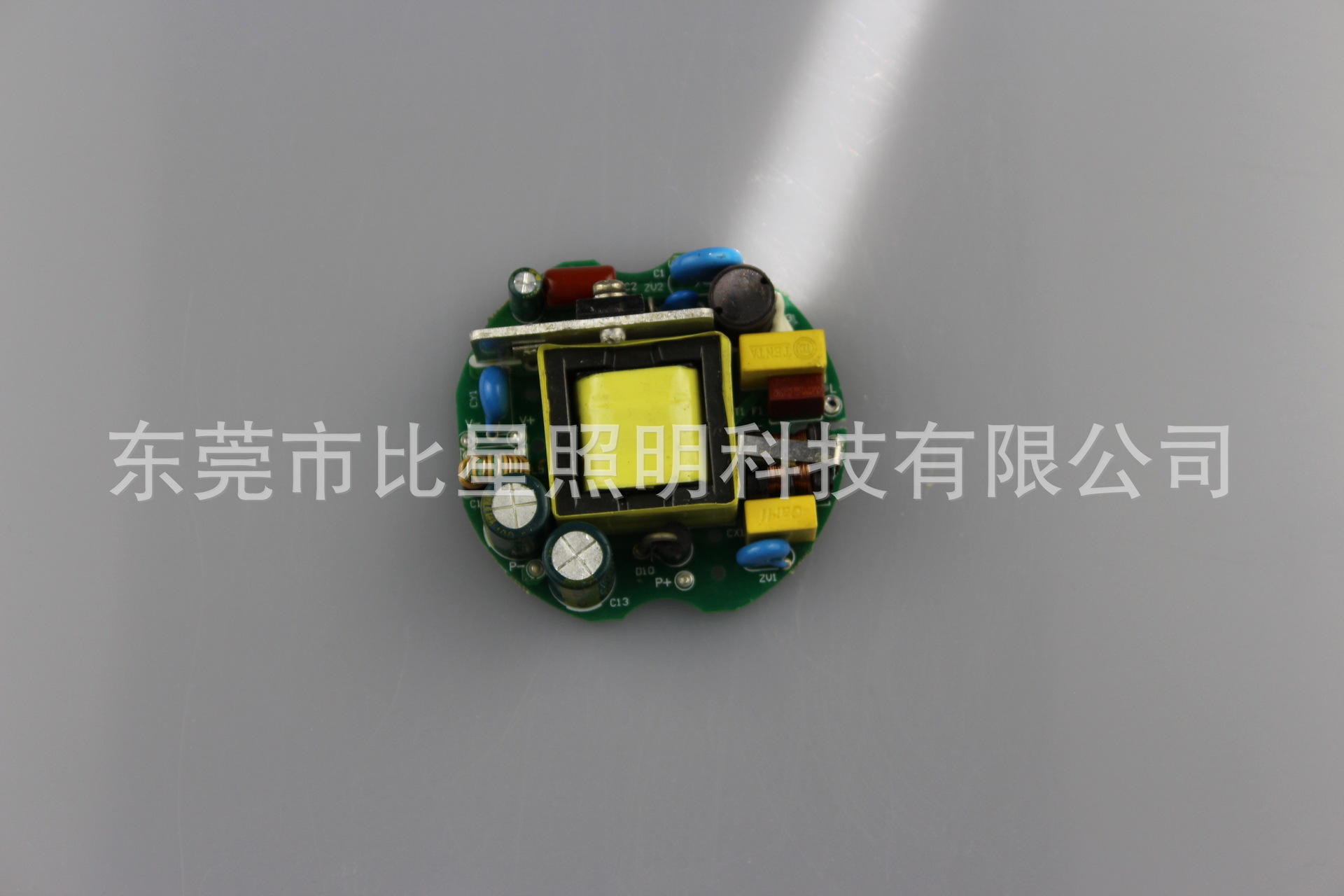

型号/ Model: VS-CLC-450-32

引用标准Based on: IEC 61347
        技术参数/Technologic Data
        输   入/Input 额定电压/Rated voltage: AC85～265V
        工作频率/Frequency: 50～60Hz
        输入功率(负载)/Input power(Loading): ≤15W
        输   出/Output 输出电流(负载)/Output current (Loading):450MA±5%
        输出电压(负载)/Output voltage (loading): DC18～25V
        输出电压(空载)/Output voltage(no loading) DC≤37V
        短路保护/Short-circuits protect: OK
        超载/Over loading: OK
        绝缘强度/Voltage resistance 输入—输出/Input-Output AC 1.5KV/5mA  1Min
        输入—机壳/Input-Housing AC 1.5KV/5mA  1Min
        纹波/ripple  ≤600MVpp (120Hz)
        效率/efficiency ≥80%

       PF>0.95
        工作温度/Working Temperature -25℃～+40℃
using Size (mm): L*W*H=F65*24mm

安规版可通过EMI(EN55015)和3700V 高压测试，符合CE/UL/GS 等安规要求
