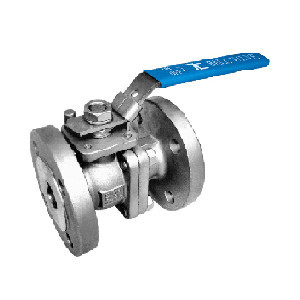

上海思铭不锈钢301球阀 型号Q41F-25P DN50
'
Q41F/PPL法兰浮动球阀应用规范
1、设计制造造GB12235-89
2、结构长度按GB12221-89
3、法兰尺寸按JB/T79-94
4、阀门检查和试验按APID.598
Q41F/PPL法兰浮动球阀主要零件材料
序号
No. | 材料标准 | 材料牌号 | 序号
No. | 材料标准 | 材料牌号 | 碳钢 | 不锈钢 | 碳钢 | 不锈钢 | 零件名称 | GB | ASTM | GB | ASTM | 零件名称 | GB | ASTM | GB | ASTM | 01 | 阀体 | WCB | A216-WCB | ZG1Cr18Ni9Ti
ZG1Cr18Ni12Mo2Ti | CF8/CF8M/
CF3/CF3M | 10 | 阀座密封圈 | 石墨 | 02 | 阀盖 | WCB | A216-WCB | ZG1Cr18Ni9Ti
ZG1Cr18Ni12Mo2Ti | CF8/CF8M/
CF3/CF3M | 11 | 阀杆 | 2Cr13 | A276-410 | 1Cr18Ni9Ti
1Cr18Ni12Mo2Ti | F304/F316/
F304L/F316L | 03 | 双头螺柱 | 35CrMoA | A193-B7 | 1Cr17Ni2 | A193-B8M | 12 | 止推轴承 | 金属夹PTEE | 04 | 螺母 | 45 | A194-2H | 0Cr18Ni | A194-8M | 13 | 阀杆填料 | 石墨 | 05 | 垫圈 | 金属夹石墨 | 14 | 填料压环 | 2Cr13 | A276-410 | 1Cr18Ni9Ti
1Cr18Ni12Mo2Ti | F304/F316/
F304L/F316L | 06 | 球体 | 2Cr13渗氮 | A276-410渗氮 | 1Cr18Ni9Ti
1Cr18Ni12Mo2T
渗氮 | F304/F316/
F304L/F316L
渗氮 | 15 | 填料压盖 | WCB | A216-WCB | ZG1Cr18Ni9Ti
ZG1Cr18Ni12Mo2Ti | CF8/CF8M/
CF3/CF3M | 07 | 阀座 | 2Cr13渗氮 | A276-410渗氮 | 1Cr18Ni9Ti
1Cr18Ni12Mo2T
渗氮 | F304/F316/
F304L/F316L
渗氮 | 16 | 螺钉 | 35CrMoA | A193-B7 | 1Cr17Ni2 | A193-B8M | 08 | 阀座支承圈 | 2Cr13 | A276-410 | 1Cr18Ni9Ti
1Cr18Ni12Mo2T | F304/F316/
F304L/F316L | 17 | 定位板 | 2Cr13 | A276-410 | 1Cr18Ni9Ti | 304 | 09 | 阀座弹簧 | 17-7PH | 17-7PH | 17-7PH | 17-7PH | | | | | | |
PN1.6MPa浮动球阀主要连接尺寸
公称通径DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | L | 130 | 140 | 150 | 165 | 180 | 200 | 220 | 250 | 280 | 320 | 360 | 400 | H | 59 | 63 | 75 | 80 | 95 | 107 | 142 | 152 | 178 | 252 | 272 | 342 | W | 130 | 130 | 160 | 180 | 230 | 230 | 400 | 400 | 650 | 1050 | 1050 | 1410 |
PN2.5MPa浮动球阀主要连接尺寸 公称通径DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | L | 130 | 140 | 150 | 165 | 180 | 200 | 220 | 250 | 320 | 400 | 400 | 550 | H | 59 | 63 | 75 | 97 | 107 | 142 | 152 | 178 | 252 | 272 | 342 | 345 | W | 130 | 130 | 160 | 230 | 230 | 400 | 400 | 700 | 1100 | 1100 | 1500 | 1500 |
PN4.0MPa浮动球阀主要连接尺寸
公称通径DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | L | 130 | 140 | 150 | 165 | 180 | 200 | 220 | 250 | 320 | 400 | 400 | 550 | H | 59 | 63 | 75 | 97 | 107 | 142 | 152 | 178 | 252 | 272 | 342 | 345 | W | 130 | 130 | 160 | 230 | 230 | 400 | 400 | 700 | 1100 | 1100 | 1500 | 1500 |
PN6.4MPa浮动球阀主要连接尺寸
公称通径DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | L | 165 | 190 | 216 | 229 | 241 | 292 | 330 | 356 | 432 | 508 | 559 | 660 | H | 59 | 63 | 75 | 97 | 107 | 142 | 152 | 178 | 252 | 272 | 305 | 398 | W | 130 | 130 | 160 | 230 | 230 | 400 | 400 | 700 | 1000 | 1100 | 1500 | 1800 |
PN10.0MPa浮动球阀主要连接尺寸
公称通径DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | L | 165 | 190 | 216 | 229 | 241 | 292 | 330 | 356 | 432 | 508 | 559 | 660 | H | 59 | 63 | 75 | 97 | 107 | 142 | 152 | 178 | 252 | 272 | 305 | 398 | W | 130 | 130 | 160 | 230 | 230 | 400 | 400 | 700 | 1000 | 1100 | 1500 | 1800 |
|
'
