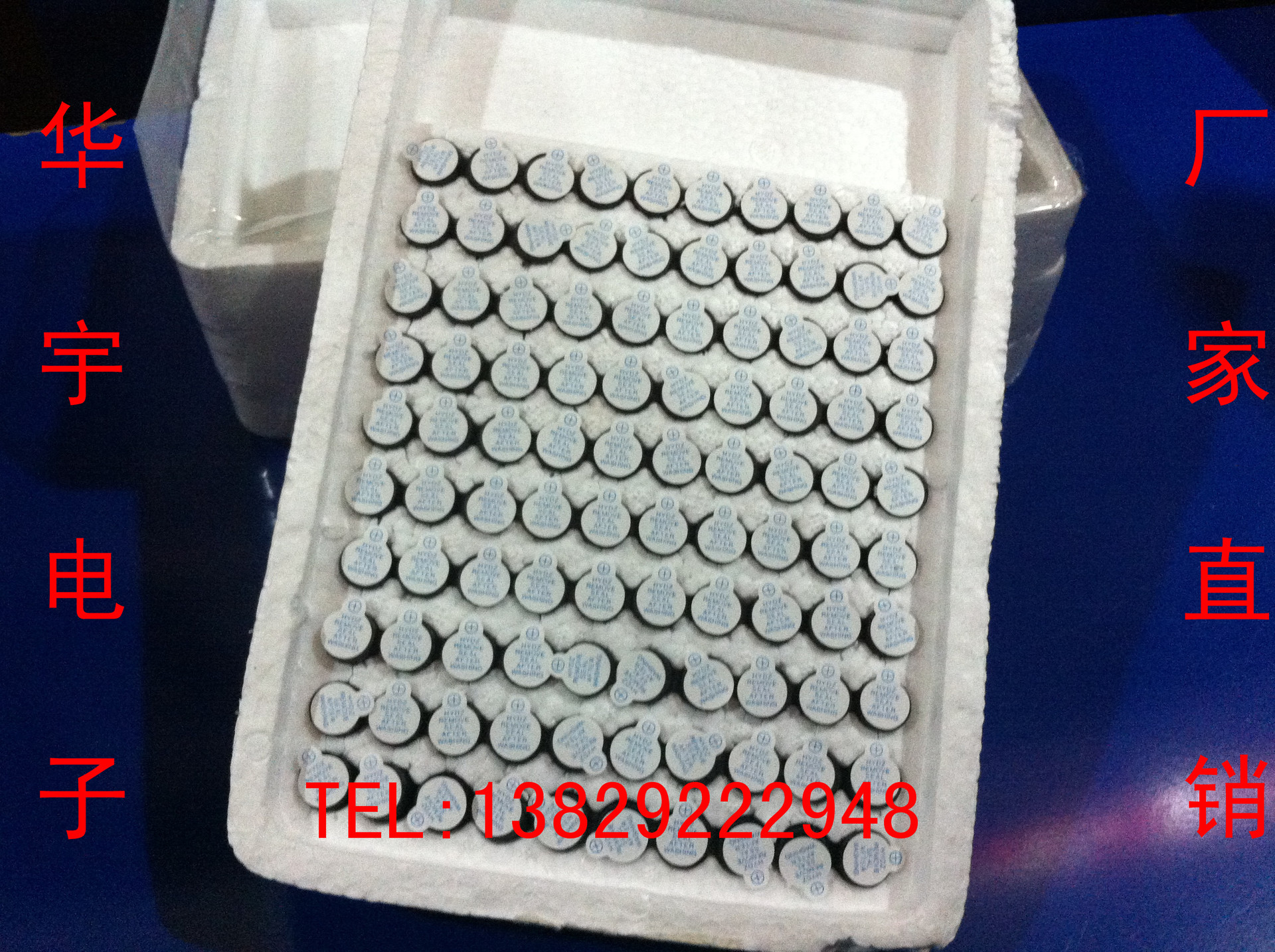

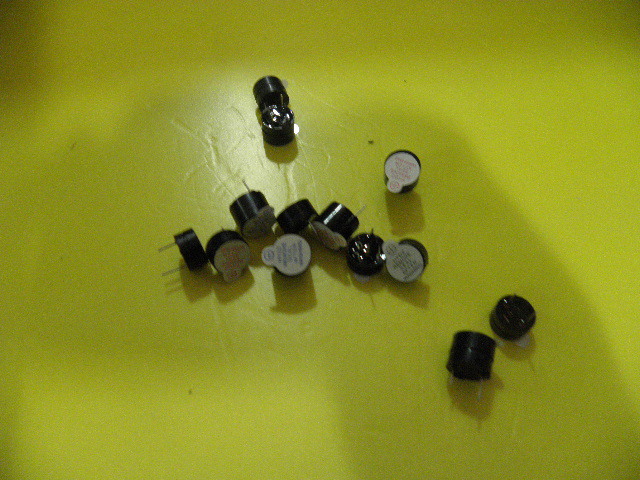

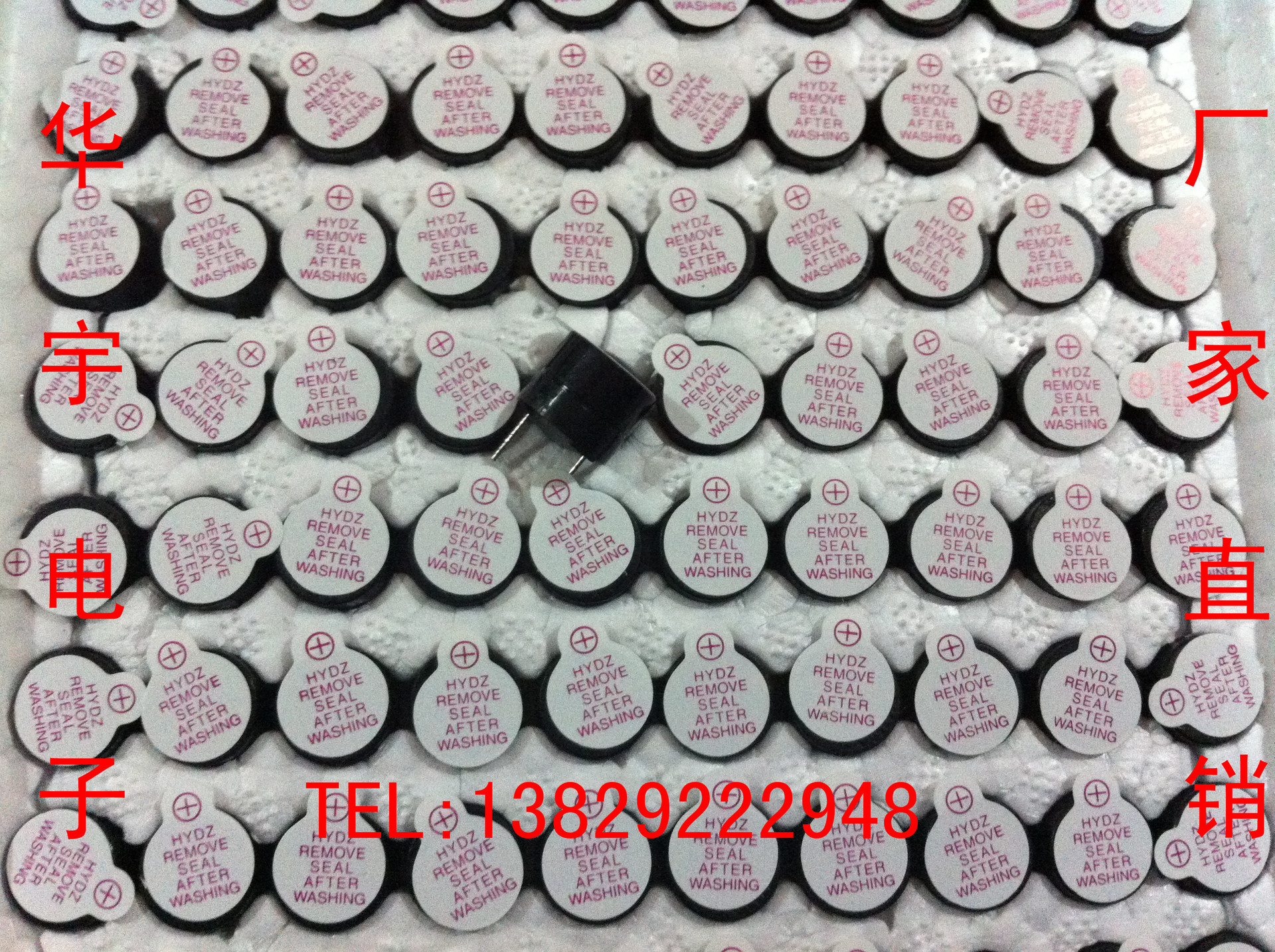

供应HYDZ电磁式有源蜂鸣器 TMB12A05一体有源蜂鸣器
'
![]()
| FREQUENCY RESPONSE ![]()
|
|
![]()
|
| SPECIFICATIONS |
| Type | Unit | HYT-1201 | HYT-1203 | HYT-1205 | HYT-1212 | | Rated Voltage | V | 1.5 | 3 | 5 | 12 | | Operating Voltage | V | 1.2-3 | 2-5 | 4-7 | 8-16 | | *Rated Current(MAX) | mA | 20 | 30 | 30 | 30 | | *Min Sound Output at 10 cm | dB | 80 | 85 | 85 | 85 | | *Resonant Frequency | Hz | 2300±300 | | Operating Temperature | ℃ | -20～+70 | | Storage Temperature | ℃ | -30～+85 | | Housing Material | | NORYL | | Weight | g | 2 |
|
| |
'
