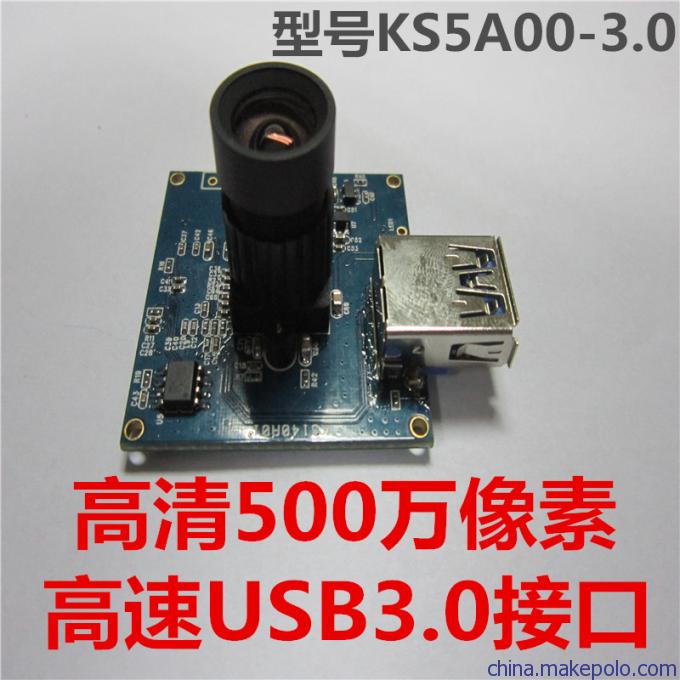

Module No.

        KS5A00-3.0

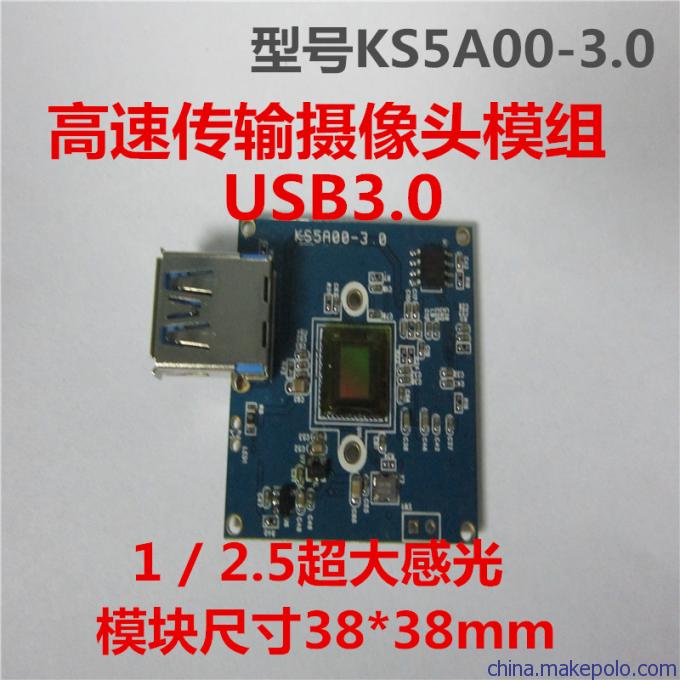

Module Size 尺寸大小

38mm × 38mm

Temperature (Operation)  温度环境

-20°C to 70°C

Temperature (Stable Image)  最适温度

0°C to 50°C

Assembly technique

SMT (ROSH)

Focus

Fix

Object distance  拍摄距离（建议值）

1CM~500CM

Resolution  像素

500W

PCB printing ink  模板颜色

Blue

Interface  接口

USB 3.0

Power

USB bus power

Power consumption

110mW （VGA）; 130 mW （UXGA）;

Operating system request 操作系统

Windows XP / Windows 7 / Windows 8

Focus  调焦模式

Manual

Package

Paper Pulp

Certifications

FCC and CE

Image compression  图像压缩格式

YUY2 / MJPG

Sensor Type  感光

 1 / 2.5

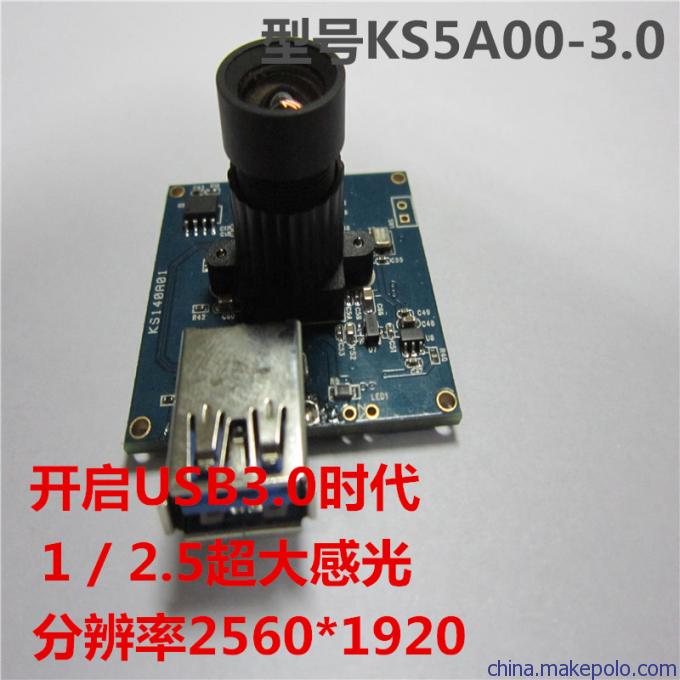

Active Array Size 最大分辨率

2560*1920 (4：3)

Max S/N ratio

36dB(maximum)

  Power supply

Core

1.5V±5%（with embedded 1.5V regulator)

Analog

2.6~3.0V(2.8V typical)

I/O

1.8V/2.8V

  Dynamic range

68dB @ 8x gain

Sensitivity

TBD

Pixel Size

1.4µm x1.4µm

Maximum Image Transfer Rate

See table2-1 for detils

S/N Ratio

TBD

Dynamic Range

TBD

Package

CSP,Bare Die

AGC/AEC/Whiter balance

Auto

Output Formats

USB suspend out

Fixed Pattern Noise

< 0.03% of VPEAK-TO-PEAK
