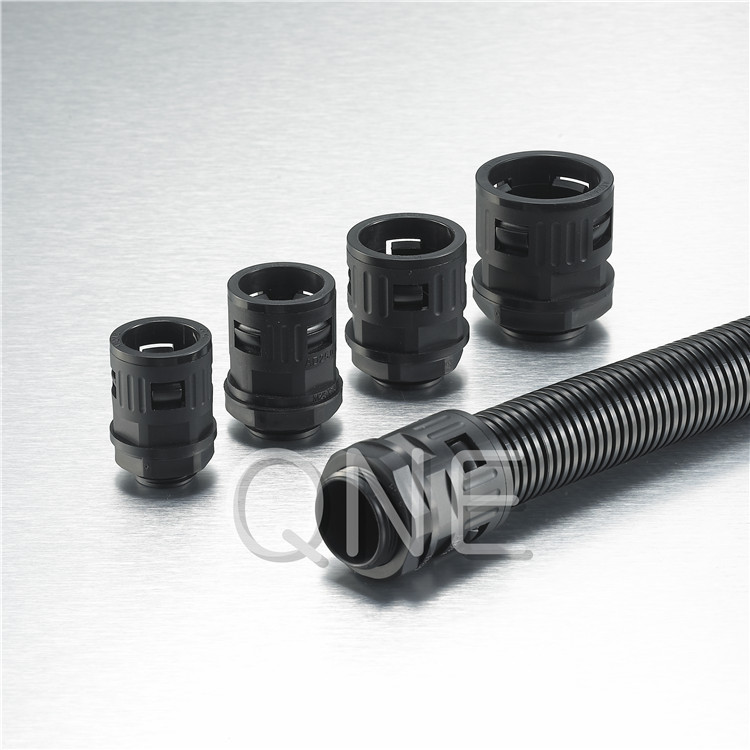

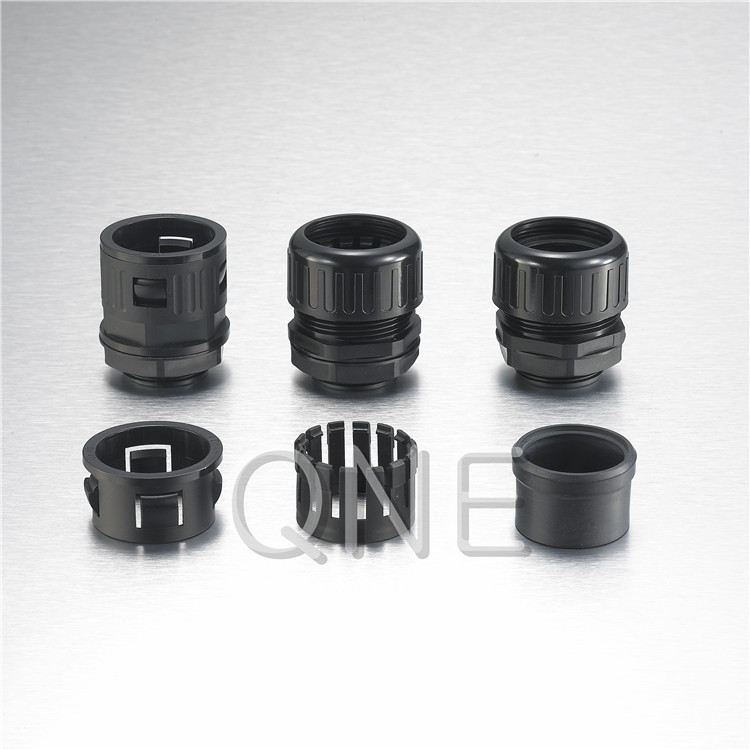

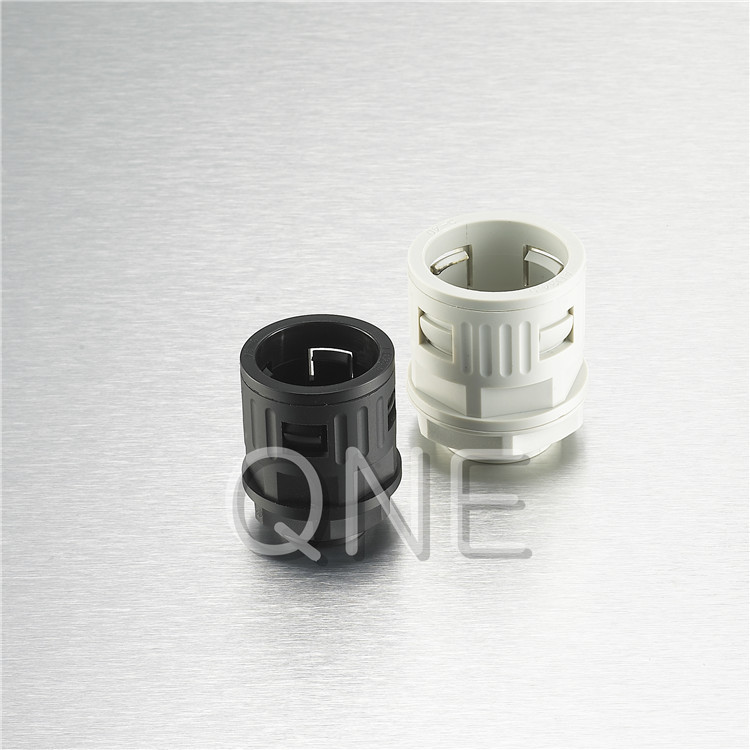

适配软管
Accommodated Pipes | 编号
Item.No. | 螺牙规格
Thread | 螺纹外径
AG Outer diameter(mm) | 螺纹内径
AG Inner diameter
I(mm) | 螺纹长度
Thread Length
C(mm) | E
(mm) | F
(mm) | AD10.0 | RTF-M12-10.0 | M12 x 1.5 | 12.0 | 9.0 | 10.0 | 32.0 | 16.0 | AD11.6 | RTF-M16-10.0 | M16 x 1.5 | 16.0 | 11.0 | 10.0 | 34.5 | 20.0 | AD13.0 | RTF-M16-13.0 | M16 x 1.5 | 16.0 | 11.6 | 10.0 | 34.5 | 20.0 | RTF-M18-13.0 | M18 x 1.5 | 18.0 | 10.0 | 10.0 | 37.5 | 24.3 | RTF-M20-13.0 | M20 x 1.5 | 20.0 | 13.0 | 10.0 | 37.5 | 24.3 | AD15.8 | RTF-M16-15.8 | M16 x 1.5 | 16.0 | 12.0 | 10.0 | 37.5 | 24.3 | RTF-M18-15.8 | M18 x 1.5 | 18.0 | 12.0 | 10.0 | 37.5 | 24.3 | RTF-M20-15.8 | M20 x 1.5 | 20.0 | 15.0 | 10.0 | 37.5 | 24.3 | AD18.5 | RTF-M20-18.5 | M20 x 1.5 | 20.0 | 16.0 | 11.5 | 43.5 | 27.0 | AD21.2 | RTF-M20-21.2 | M20 x 1.5 | 20.0 | 15.0 | 13.0 | 49.0 | 31.0 | RTF-M24-21.2 | M24 x 1.5 | 24.0 | 17.0 | 13.0 | 49.0 | 31.0 | RTF-M25-21.2 | M25 x 1.5 | 25.0 | 16.0 | 13.0 | 49.0 | 31.0 | AD25.0 | RTF-M25-25.0 | M25 x 1.5 | 25.0 | 19.5 | 13.0 | 52.0 | 32.0 | AD28.5 | RTF-M25-28.5 | M25 x 1.5 | 25.0 | 19.5 | 13.0 | 57.0 | 34.0 | RTF-M27-28.5 | M27 x 2.0 | 27.0 | 23.0 | 13.0 | 57.0 | 34.0 | RTF-M30-28.5 | M30 x 2.0 | 30.0 | 23.0 | 13.0 | 57.0 | 34.0 | AD34.5 | RTF-M32-34.5 | M32 x 1.5 | 32.0 | 27.0 | 14.5 | 64.0 | 43.0 | RTF-M36-34.5 | M36 x 2.0 | 36.0 | 29.0 | 14.5 | 64.0 | 43.0 | RTF-M40-34.5 | M40 x 1.5 | 40.0 | 30.0 | 14.5 | 64.0 | 43.0 | AD42.5 | RTF-M40-42.5 | M40 x 1.5 | 40.0 | 35.0 | 14.5 | 72.0 | 50.0 | RTF-M48-42.5 | M48 x 2.0 | 48.0 | 38.0 | 14.5 | 72.0 | 50.0 | AD54.5 | RTF-M50-54.5 | M50 x 1.5 | 50.0 | 44.0 | 16.0 | 84.0 | 64.0 | RTF-M60-54.5 | M60 x 2.0 | 60.0 | 53.0 | 16.0 | 84.0 | 64.0 | AD10.0 | RTF-PG7-10.0 | PG7 | 12.5 | 9.0 | 10.0 | 32.0 | 16.0 | AD13.0 | RTF-PG9-13.0 | PG9 | 15.2 | 11.6 | 10.0 | 34.5 | 20.0 | AD15.8 | RTF-PG11-15.8 | PG11 | 18.6 | 13.5 | 10.0 | 37.5 | 24.3 | AD18.5 | RTF-PG13.5-18.5 | PG13.5 | 20.4 | 16.0 | 11.0 | 43.5 | 27.0 | AD21.2 | RTF-PG16-21.2 | PG16 | 22.5 | 17.5 | 13.0 | 49.0 | 31.0 | AD28.5 | RTF-PG21-28.5 | PG21 | 28.3 | 23.0 | 13.0 | 57.0 | 34.0 | AD34.5 | RTF-PG29-34.5 | PG29 | 37.0 | 30.0 | 14.5 | 64.0 | 43.0 | AD42.5 | RTF-PG36-42.5 | PG36 | 47.0 | 38.0 | 14.5 | 72.0 | 50.0 | AD54.5 | RTF-PG48-54.5 | PG48 | 59.3 | 52.0 | 16.0 | 84.0 | 64.0 | AD21.2 | RTF-G1/2-21.2 | G1/2 | 22.5 | 15.0 | 13.0 | 49.0 | 31.0 | AD25.0 | RTF-G1/2-25.0 | G1/2 | 25.0 | 15.0 | 13.0 | 52.0 | 32.0 | AD28.5 | RTF-G3/4-28.5 | G3/4 | 28.3 | 21.0 | 13.0 | 57.0 | 34.0 | AD34.5 | RTF-G1-34.5 | G1 | 37.0 | 32.0 | 14.5 | 64.0 | 43.0 |
|
|

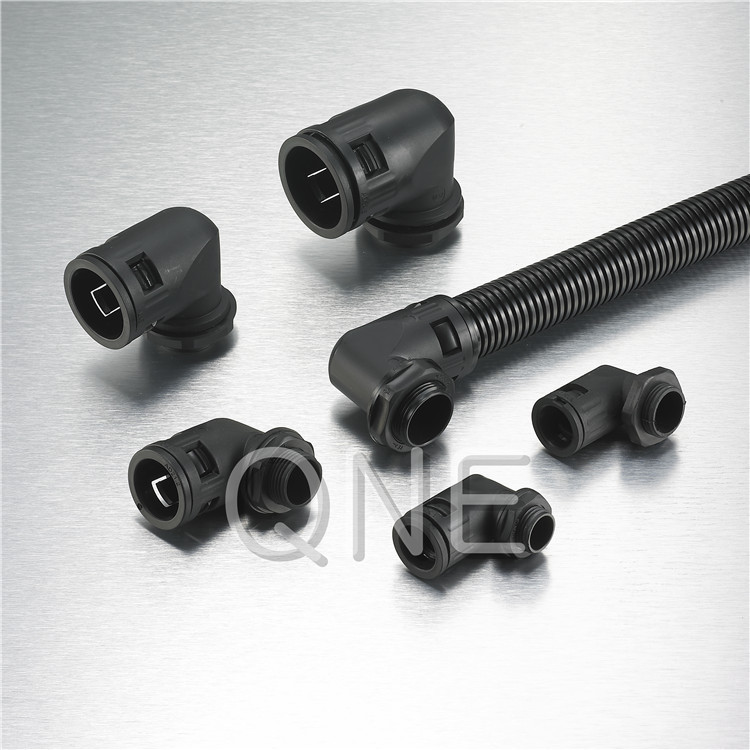

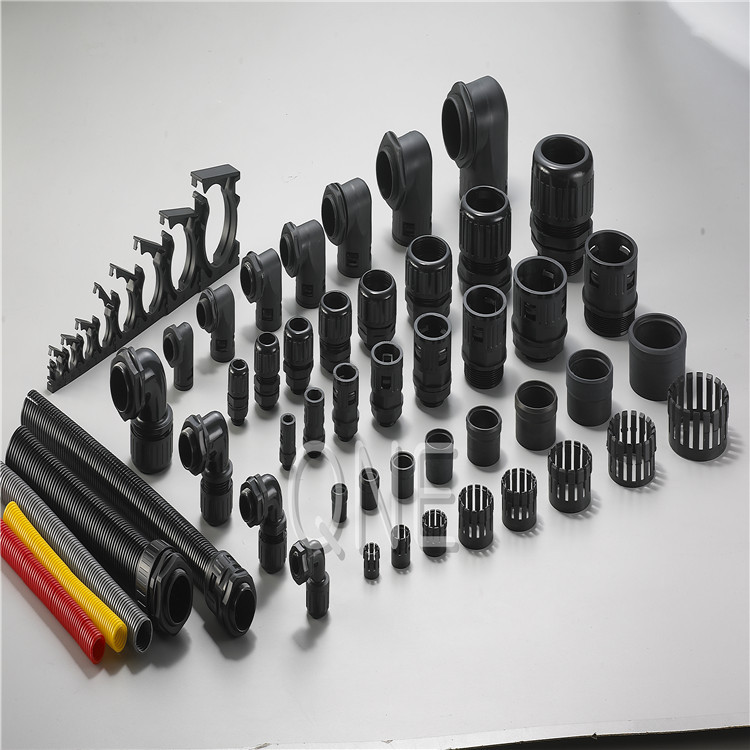

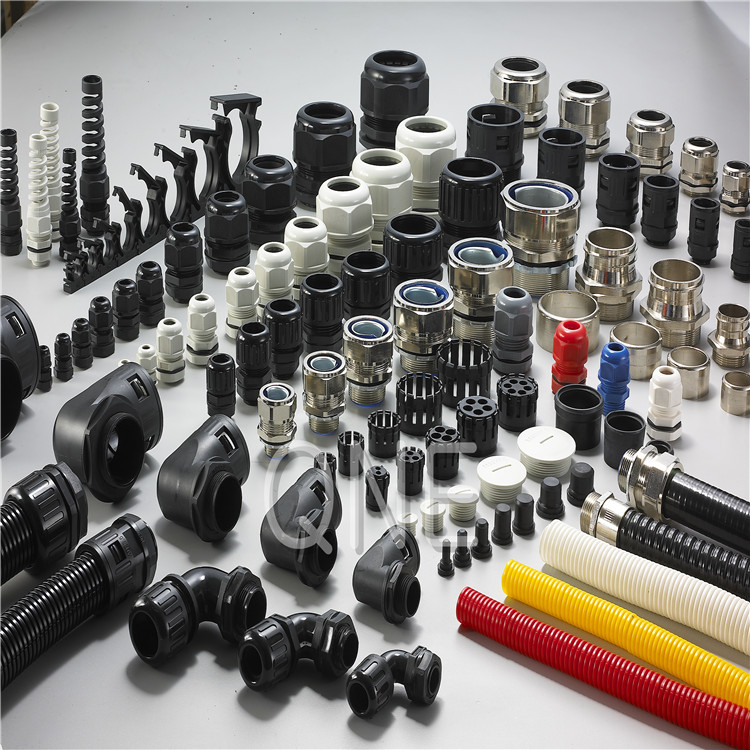

【强能电气】厂家直销 物美价廉电缆防水接头 波纹管及接头 金属和尼龙材质 ROHS环保认证
电话：0577-61679077 15057302345 『24小时开机』 朱先生 QQ:468613934 邮箱qne9077@qne.cc
选择强能，选择品质！
