Part Number: SV40-6300-0

Description: StyleView LCD Cart, non-powered SV40, pivot (white, grey and polished aluminum)

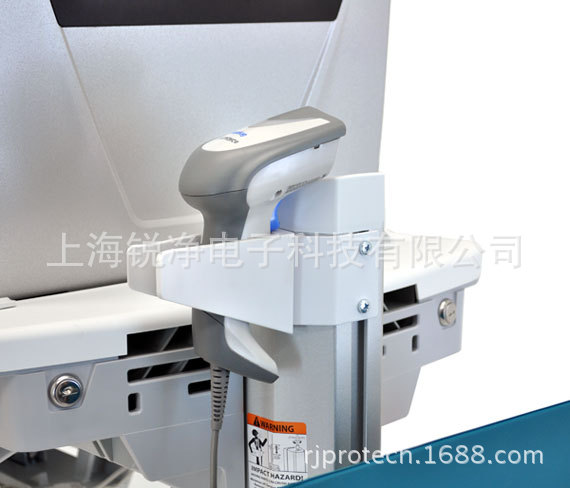

Includes LCD pivot, worksurface, secure CPU compartment, scanner holder bracket, mouse holder, wrist rest, back-tilt keyboard tray, left/right mouse tray, cable storage, four casters (two locking)

* Total maximum load on height-adjustment assembly = 35 lbs (15.9 kg). This is the sum of the following components: LCD pivot = 5–14 lbs (2.3–6.4 kg); worksurface and keyboard tray ≤ 8 lbs (3.6 kg); CPU compartment ≤ 13 lbs (5.9 kg)

Note: Locking the height of the LCD lift pivot changes the weight capacity to ≤ 20 lbs (9.1 kg), allowing it to accommodate heavier displays and all-in-one computers—contact Ergotron for details

Note: If the combined LCD and CPU weight is greater than 27 lbs (12.3 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately)

† LCD and worksurface adjust 20" (51 cm) in tandem; LCD Pivot adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63.5 cm)

‡ Portrait screen orientation may be incompatible with widescreen displays > 19"

True Ergonomics

Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry—avoid repetitive-stress injuries while increasing comfort and productivity

Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position

LCD height adjustment range of at least 25" (63.5 cm) is standard on all LCD carts

Patented CF™ lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch

Actual cart weight is just 54 lbs (24.5 kg), making system relocation easy

Safe

Worksurface is treated with antimicrobial for product protection; handles are smooth and continuous for improved cleanability

Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant

Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control

Large, smooth worksurface; easy-to-clean design promotes infection control

Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty

Front-locking casters

Designed to meet guidelines established by the American National Standards Institute for computer use

Service

Covered by Global Service Program—24/7 coverage

All the Details Covered

Universal mounting slot for accessories and equipment

Ships fully assembled and is easily accessible from container

Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access

Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability

Compatibility and Dimensions

Open-architecture design accommodates multiple configurations, closed notebooks with monitor (even widescreen with up to 17.3" diagonal size), CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades

Storage compartment for closed notebook, thin client or CPU: 17.75"W x 14.75"D x 4"H (45 x 37.5 x 10.1 cm); larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately)

Compact Wheel-to-Wheel Base Dimensions: 17" x 21" (430 x 533 mm)

Worksurface Dimensions: 22.4"W x 19.75"D (567 x 502 mm)

Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Shipping Dimensions: 53"D x 34"W x 36"H (135 x 89 x 91 cm)

Shipping Weight: 83 lbs (38 kg); actual cart weight = 54 lbs (24.5 kg)

Warranty: Five (5) years
