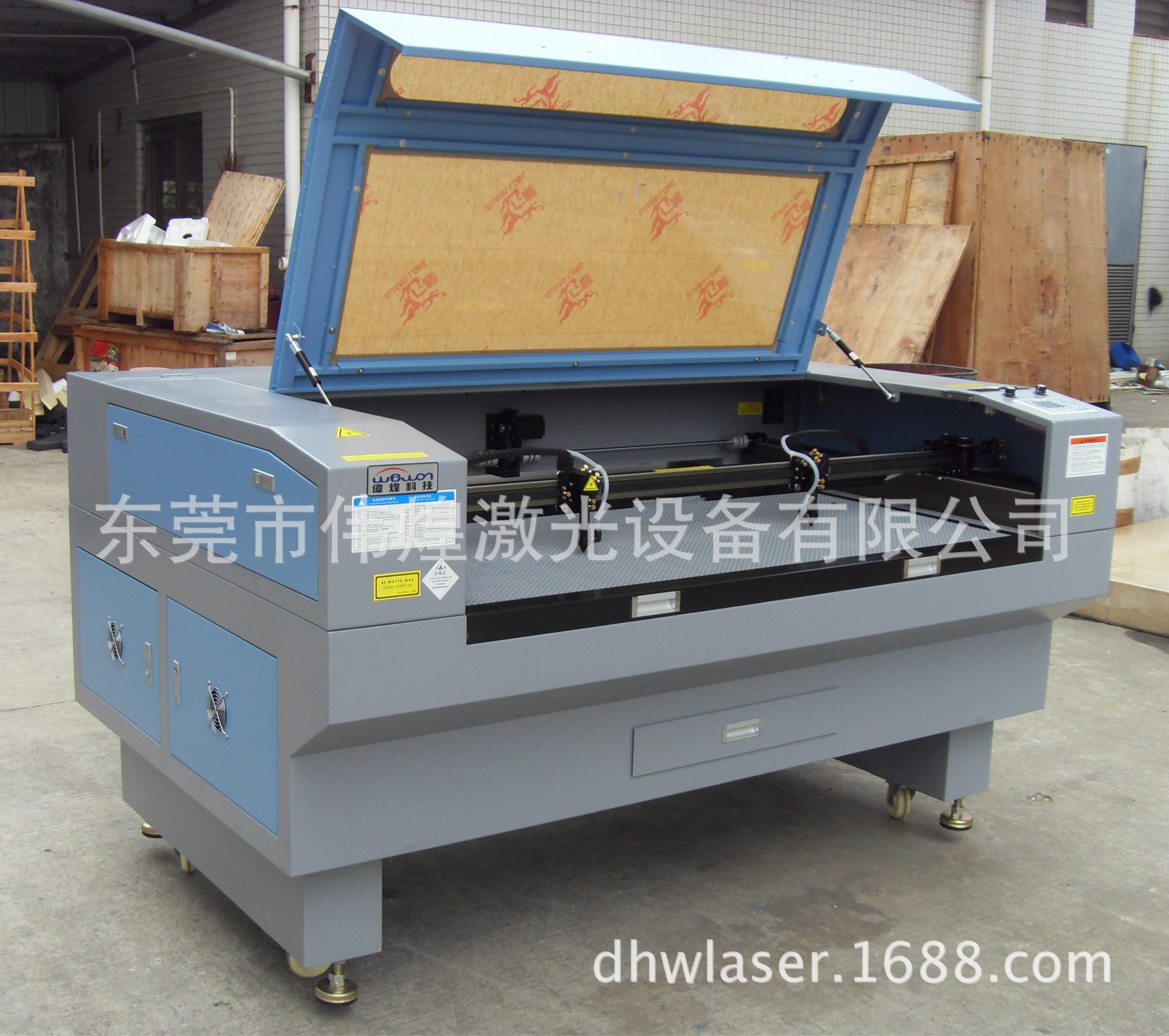

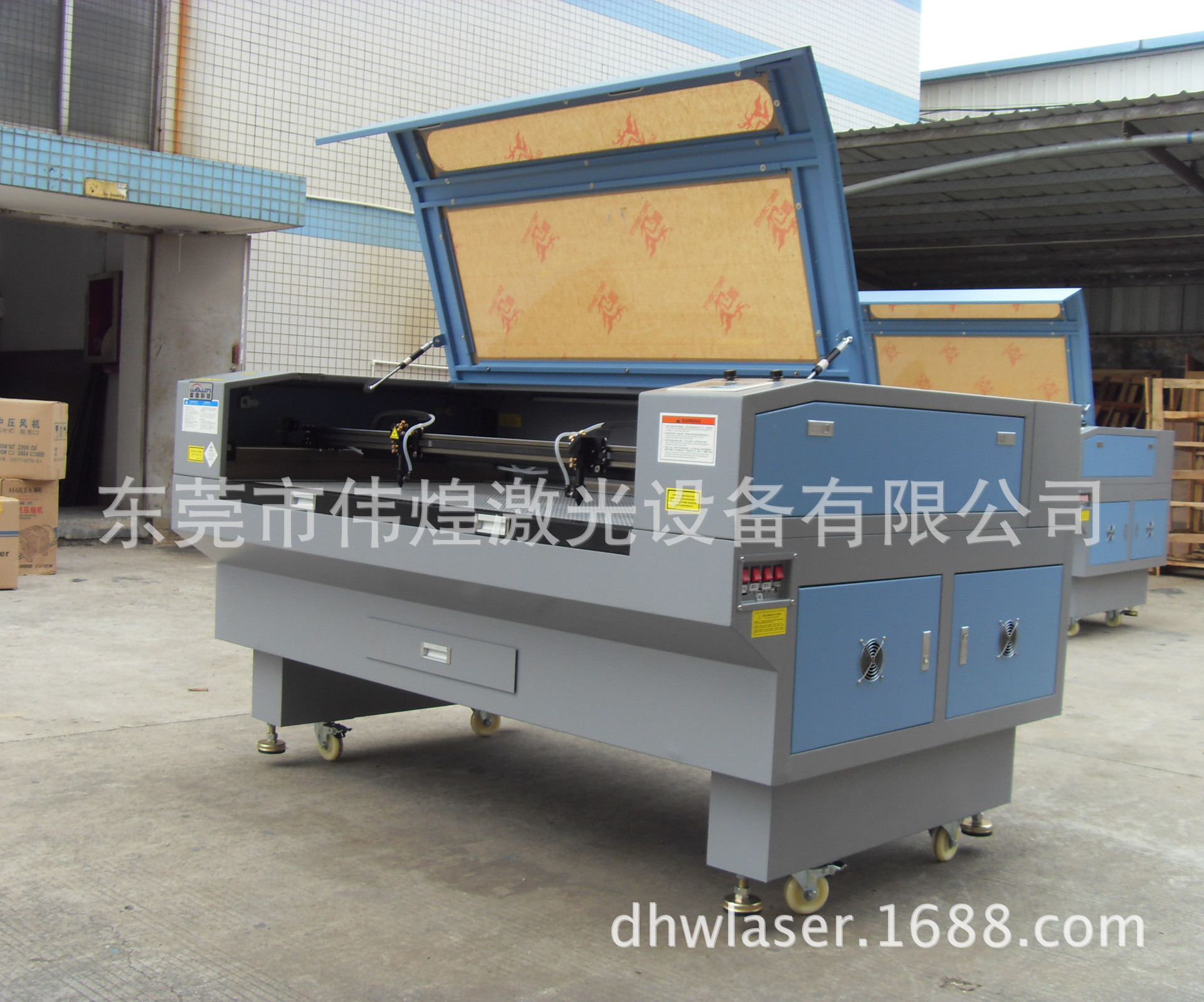

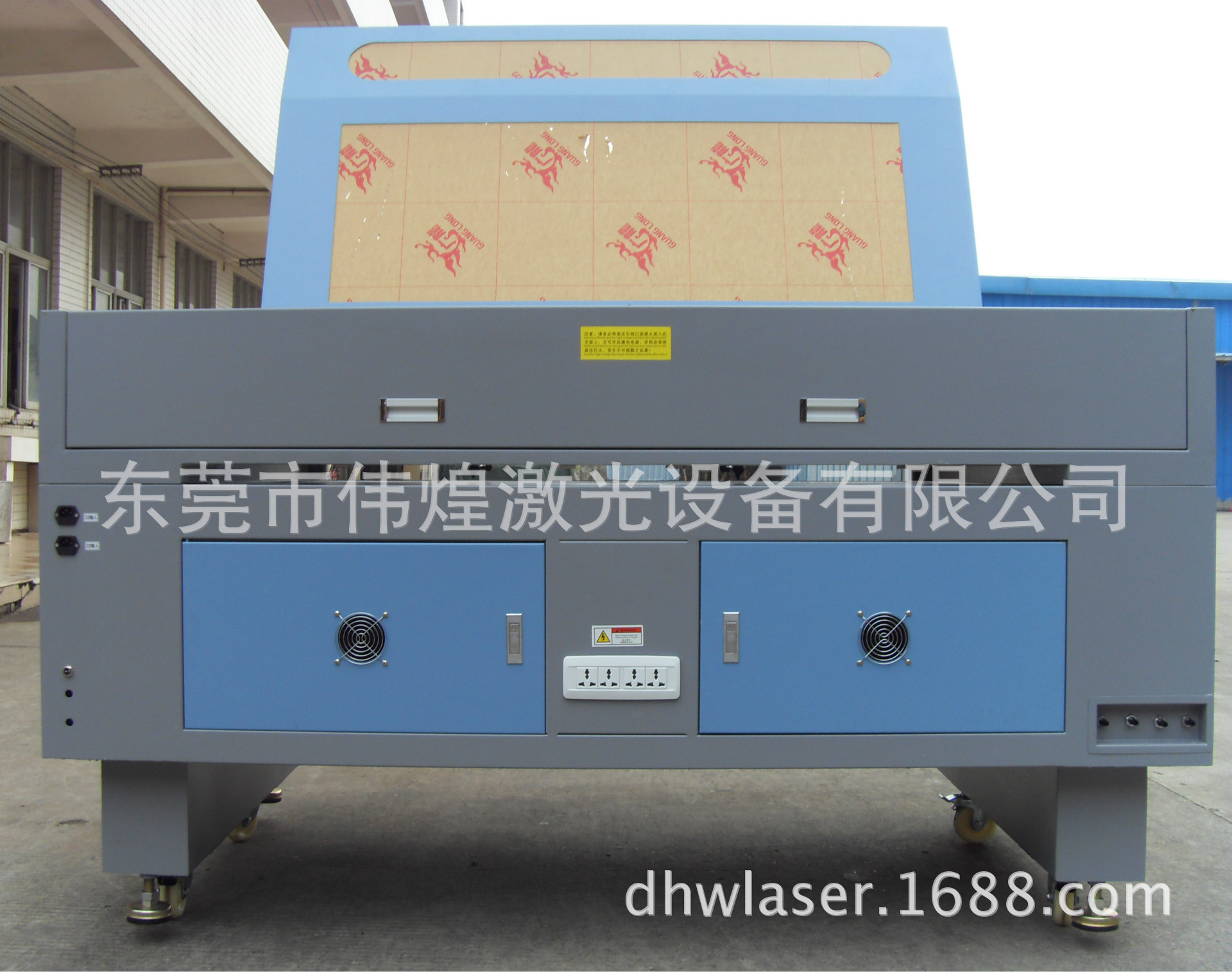

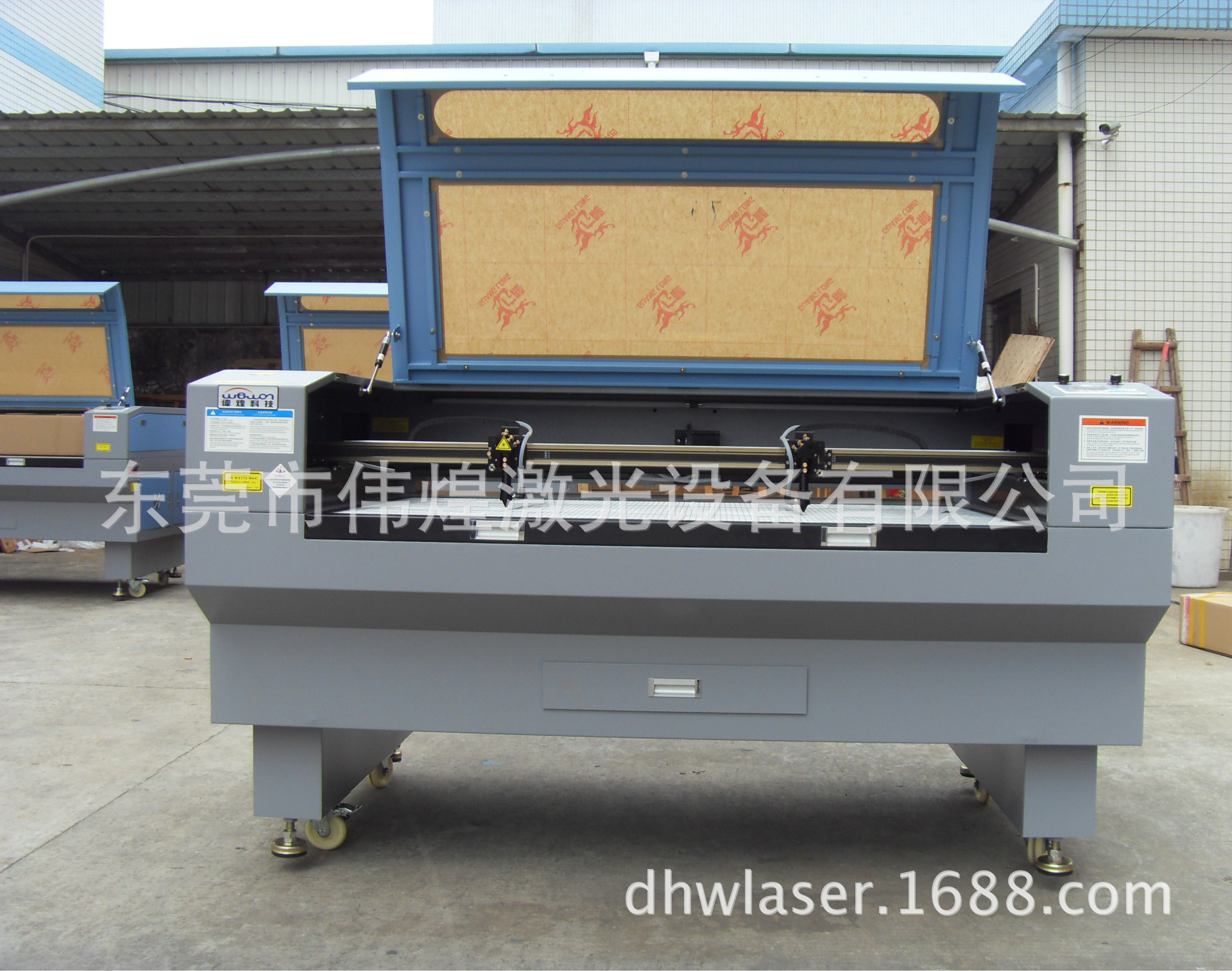

高效益双激光头设计，使用两支激光管配合激光头同时工作，针对贴布绣花、服装吊牌等大批量加工行业用户，加工效益提高一倍，使节约成本、提高产量的目标一切尽在掌握之中。采用三向反射系统及六均衡外滑式运动导轨：使光刀运行及运动轨迹更平稳，确保了切割、雕塑的效率及精度。

　　Design high-efficiency double-head component, thus two laser tubes will coordinate with the two laser heads; it is suitable for industries engaged in embroidering and cutting clothing tag on a large scale, so the benefit will be increased by one time and increase of output will be under your control.  Adopting three-way reflective system and 6-balanced sliding type guide rails, so the cut and motion curve is more stable, finally ensure high efficiency and precision of cutting or engraving.

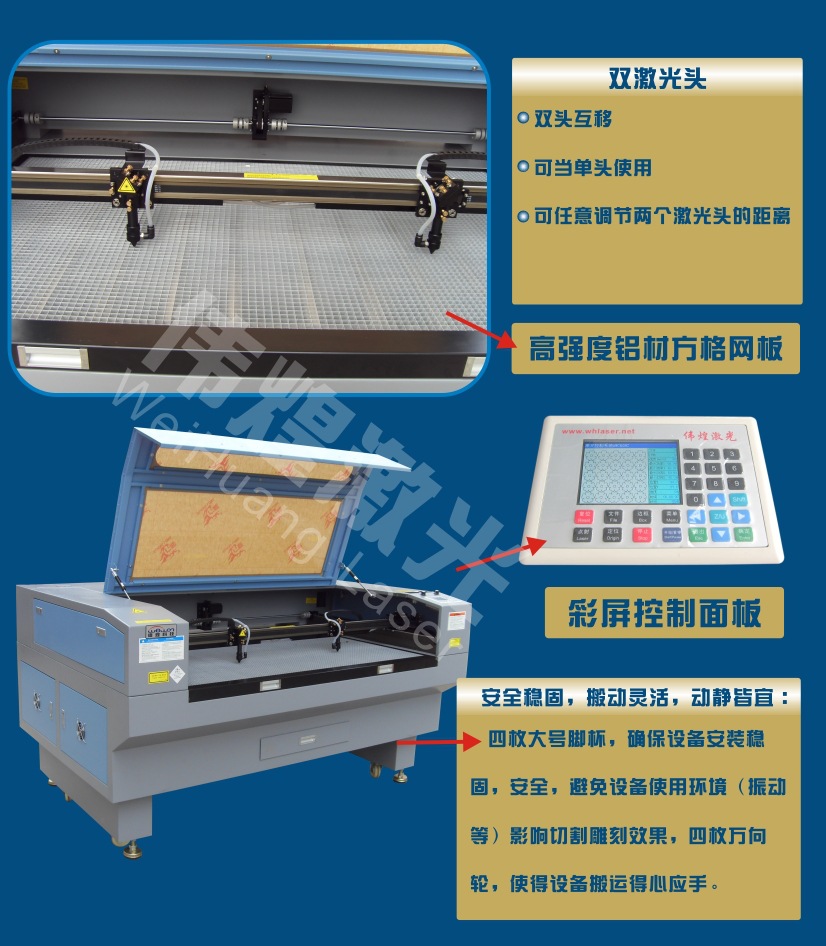

 　1)高效益双激光头设计，使用两支激光管配合激光头同时工作，针对贴布绣花、服装吊牌等大批量加工行业用户，加工效益提高一倍，使节约成本、提高产量的目标一切尽在掌握之中。

　　Design high-efficiency double-head component, thus two laser tubes will coordinate with the two laser heads; it is suitable for industries engaged in embroidering and cutting clothing tag on a large scale, so the benefit will be increased by one time and increase of output will be under your control.

　2)采用国际最先进的64位高速DSP组件控制技术，首创业内领先的连续、快速曲线切割功能及最短加工路径优化功能，大大提高工作效率。
　　With the advanced 64-bit high speed DSP control technology for assembly, firstly realize the continuous and fast curve cutting, as well as shortest processing route in the industry; and improve efficiency greatly.

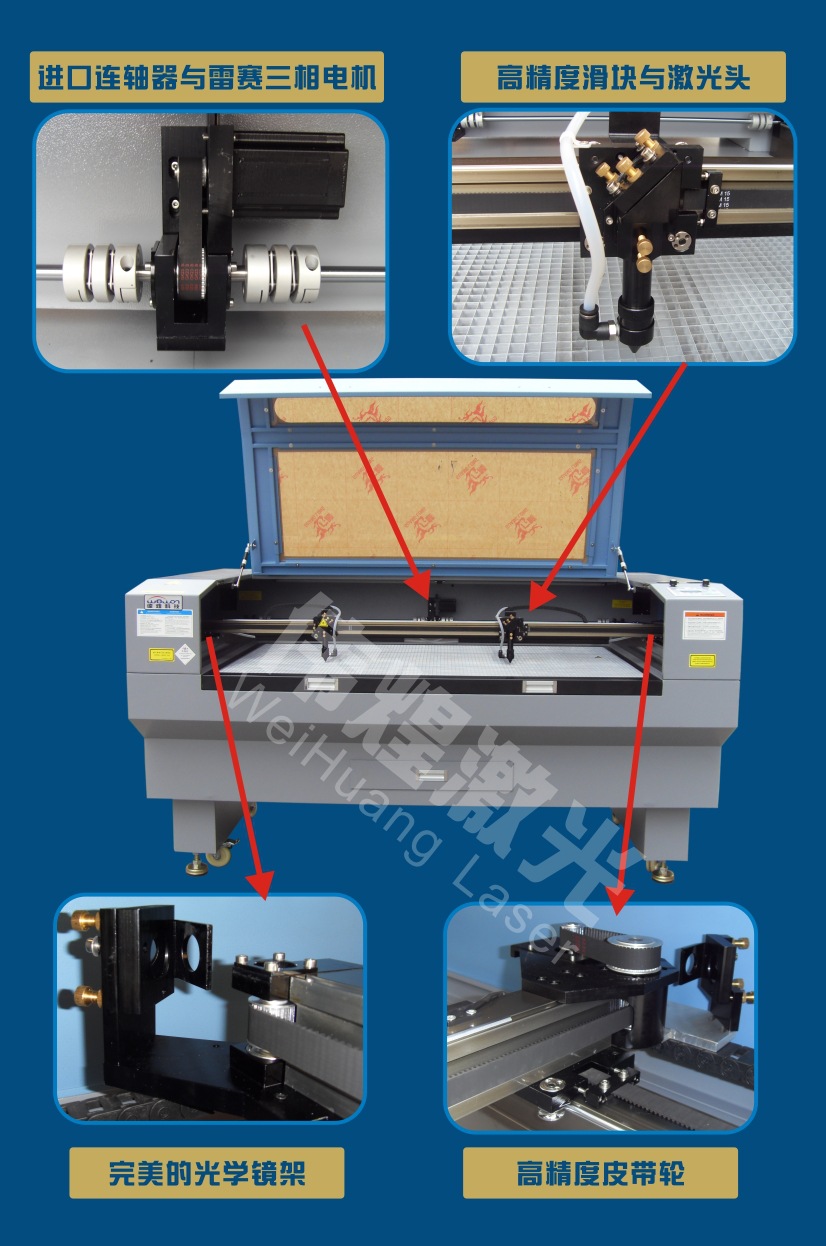

 　3)采用三向反射系统及六均衡外滑式运动导轨：使光刀运行及运动轨迹更平稳，确保了切割、雕塑的效率及精度。
　　Adopting three-way reflective system and 6-balanced sliding type guide rails, so the cut and motion curve is more stable, finally ensure high efficiency and precision of cutting or engraving.

工作面积/Working area

1400mm×800mm

雕刻速度/engraving speed

 1-64000mm/min

切割速度/cutting speed

1-32000mm/min

切割速度/Cutting thickness

1-30mm/min

激光功率/laser power

 60W/80W/100W

分 辨 率/Resolution

 0.025mm

定位精度/ Location precision

 <0.01mm

最小形成文字/The smallest characters formed

 汉字Chinesecharacter 2×2mm  字母Letter1×1mm

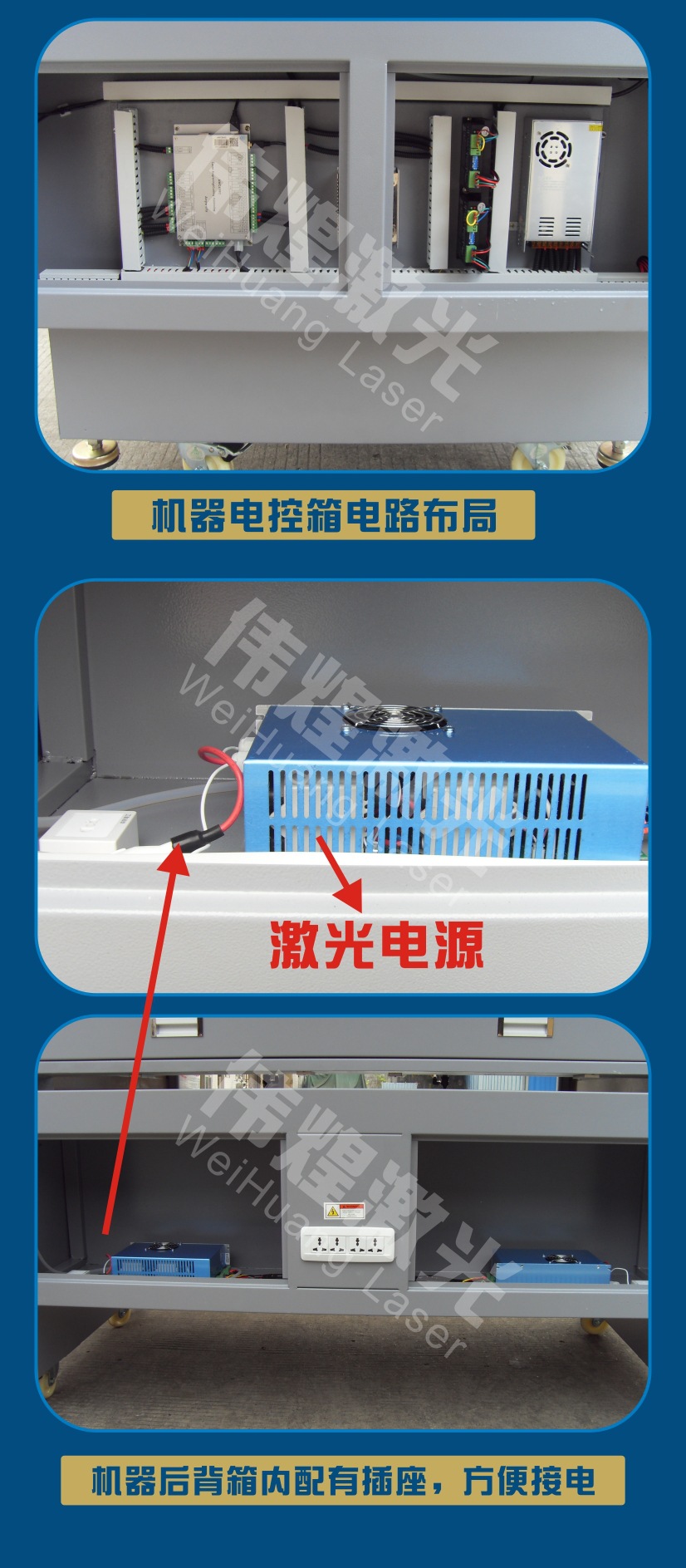

电   源/Power Supply

 AC220V±10% 50HZ

总 功 率/Gross power

 <1250w

工作温度/ Working temperature

 0℃~45℃

工作湿度/ working humility

 5%-95%(无凝水/Free of condensed water)

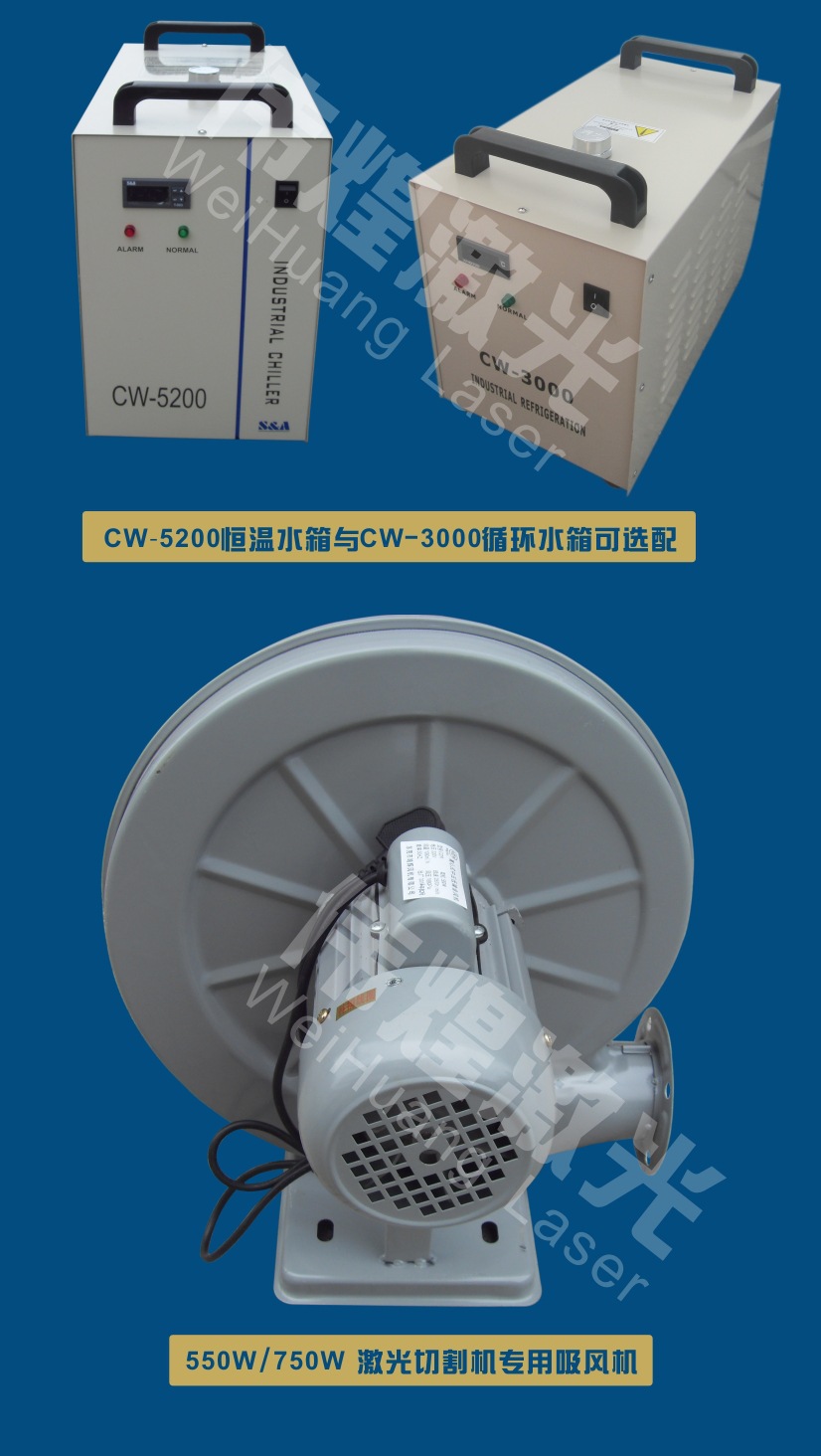

冷却方式/Cooling way

 工业水箱/Industry  water cooling

支持格式/Graphic file format supported

 PLT,CDR,AI,DWG,DXF,DST,BMP,JPEG,TIFF,GIF,PCX

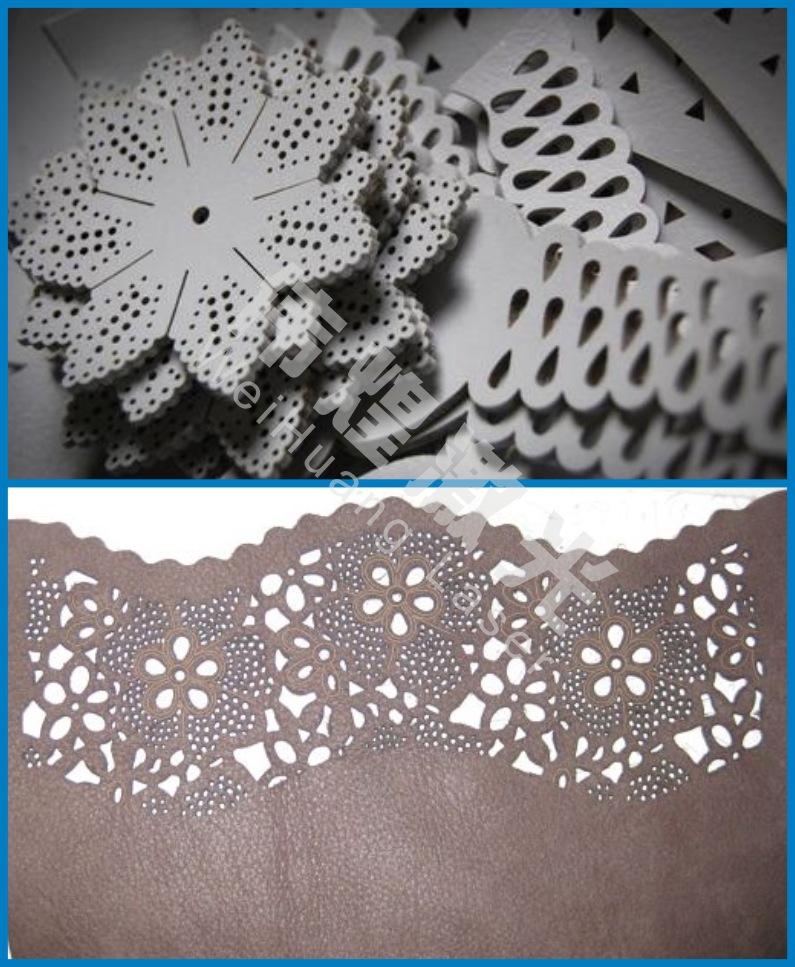

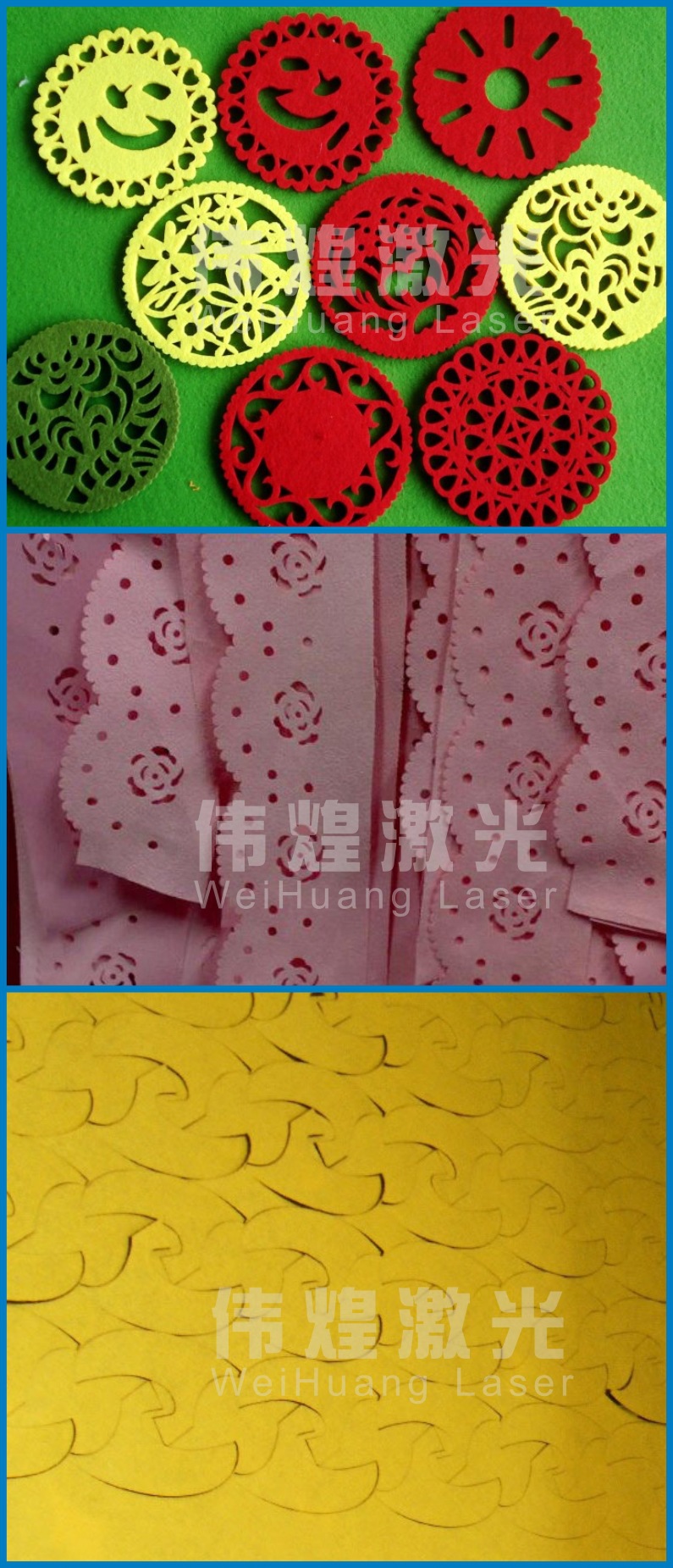

适用材料 Applicable Materials

布料、皮革、有机玻璃、亚克力、塑料、橡胶、磁砖、木制品、竹制品、毛料、纸料、陶瓷

等非金属材料。

Non-metal materials: cloth, leather, acrylic glass, acrylic, plastic, rubber, tiles, wood, bamboo products, fur, paper and ceramics, etc.

应用行业：Applicable Industries

服装、鞋业、箱包、电脑绣花裁剪、模型、电子电器、玩具、家具、广告装饰、包装印刷、

纸制品、工艺品等行业。

Garment, shoes, box, computer-based embroidery cutting, model, electronics, toys, furniture, decoration, packing, printing, paper products and craft industries, etc.
