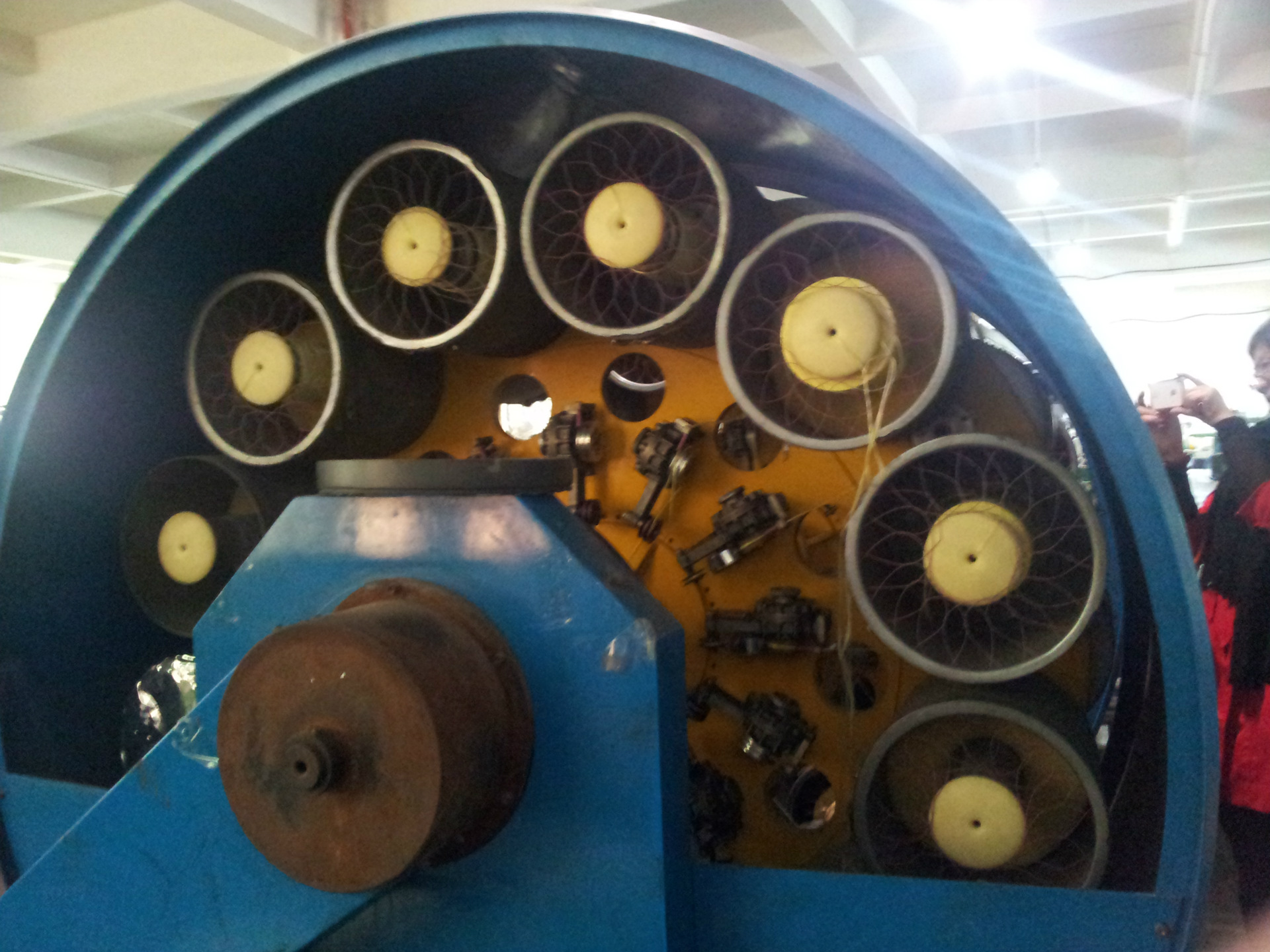

OPGW光缆主要在500KV 、220KV 、110KV电压等级线路上使用,受线路停电、安全等因素影响,多在新建线路上应用。OPGW的适用特点是:
☆.高压超过110kv的线路,档距较大(一般都在250M以上);
☆.易于维护,对于线路跨越问题易解决,其机械特性可满足线路大跨越;
☆.OPGW外层为金属铠装,对高压电蚀及降解无影响;
☆.OPGW在施工时必须停电,停电损失较大,所以在新建110kv以上高压线路中应该使用OPGW; ☆.OPGW的性能指标中,短路电流越大,越需要用良导体做铠装,则相应降低了抗拉强度,而在抗拉强度一定的情况下,要提高短路电流容量,只有增大金属截面积,从而导致缆径和缆重增加,这样就对线路杆塔强度提出了安全问题。
☆.兼具地线与通信光缆的双重功能,免去了重复架设与维护的巨大费用;

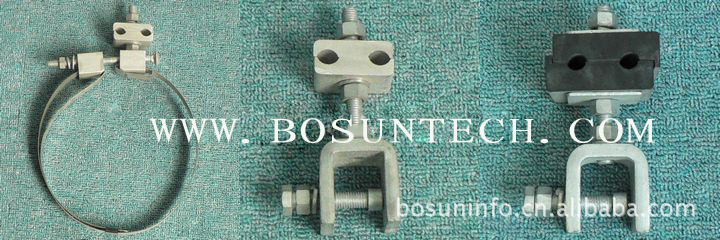

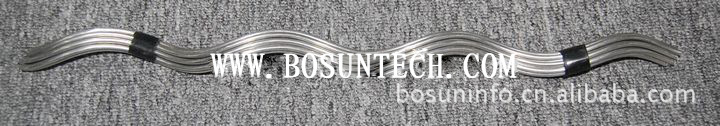

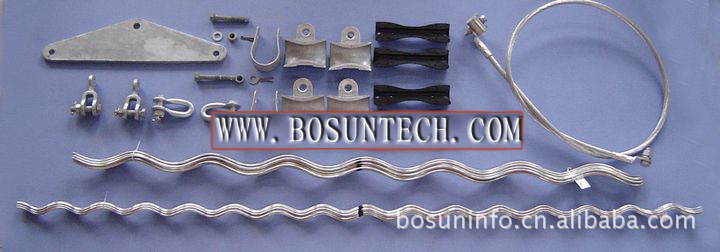

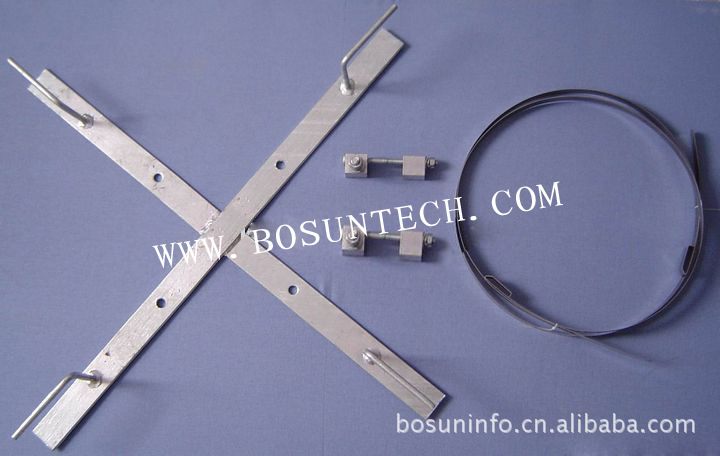

☆.安装在电力架空线杆塔顶部,无需考虑最佳挂点与电腐蚀等因素;
☆.老线路改造过程中,光缆的外径、拉力单重比另一根地线能好地匹配;
☆.传输容量大,通信质量高、可靠性好;
☆.具有优越的机械及电气性能;
☆.安全性能好,使用寿命长,不易遭到破坏性枪击。
OPGW典型结构和参数
下表仅列出几种具有代表性的结构和主要参数,并不是公司产品的全部。如有任何需求,请联系本公司在当地的代表处或直接联系本公司。
中心不锈钢管光纤单元结构(部分) | |||
| 结构:单层绞线的中心不锈钢管光纤单元结构 | ||
| 订货型号 | OPGW-1C1/36 (M48/R60-12) | OPGW-1C1/40 (M58/R72-16) |
光纤最大芯数 | 36 | 40 | |
光纤单元规格 | φ3.2 mm | φ3.5mm | |
光缆外径 | φ9.6 mm | φ10.5 mm | |
承载截面积 | 48 mm2 | 58 mm2 | |
自重 | 338 kg/km | 400 kg/km | |
标称抗拉强度 (RTS) | 59 kN | 71 kN | |
20℃直流电阻 | 1.782 Ω/km | 1.490 Ω/km | |
短路电流容量 (40~200℃) | 11 kA2·s | 16 kA2·s | |
线膨胀系数 | 13.0×10-6/℃ | 13.0×10-6/℃ | |
杨氏模量 | 162.0 kN/mm2 | 162.0 kN/mm2 | |
结构示意图 | 结构:双层绞线的中心不锈钢管光纤单元结构 | ||
| 订货型号 | OPGW-2C1/30 (M127/R78-137) | OPGW-2C1/40 |
光纤最大芯数 | 30 | 40 | |
光纤单元规格 | φ3.0 mm | φ3.4 mm | |
光缆外径 | φ15.0 mm | φ17.0 mm | |
承载截面积 | 127 mm2 | 163 mm2 | |
自重 | 529 kg/km | 673 kg/km | |
标称抗拉强度(RTS) | 77 kN | 99 kN | |
20℃直流电阻 | 0.329 Ω/km | 0.255 Ω/km | |
短路电流容量(40~200℃) | 137 kA2·s | 226 kA2·s | |
线膨胀系数 | 17.5×10-6/℃ | 17.5×10-6/℃ | |
杨氏模量 | 97.3 kN/mm2 | 97.3 kN/mm2 | |
OPGW(L)典型结构和参数
下表仅列出几种具有代表性的结构和主要参数,并不是公司产品的全部。如有任何需求,请联系本公司在当地的代表处或直接联系本公司。
中心铝包钢管光纤单元结构(部分) | |||
结构示意图 | 结构:单层绞线的中心铝包钢管光纤单元结构 | ||
| 订货型号 | OPGW(L)-1S 12(M83/R99-38) | OPGW(L)-1S 30(M104/R125-60) |
光纤最大芯数 | 12 | 30 | |
光纤单元规格 | φ4.0 mm | φ4.5 mm | |
光缆外径 | φ12.0 mm | φ13.5 mm | |
承载截面积 | 83 mm2 | 104 mm2 | |
自重 | 539 kg/km | 673 kg/km | |
标称抗拉强度 (RTS) | 99 kN | 125 kN | |
20℃直流电阻 | 0.899 Ω/km | 0.724 Ω/km | |
短路电流容量 (40~200℃) | 38.4 kA2·s | 59.8 kA2·s | |
线膨胀系数 | 13.4×10-6/℃ | 13.4×10-6/℃ | |
杨氏模量 | 153.1 kN/mm2 | 153.8 kN/mm2 | |
结构示意图 | 结构:双层绞线的中心铝包钢管光纤单元结构 | ||
| 订货型号 | OPGW(L)-1S 12(M234/R292-282) | OPGW(L)-1S 30(M295/R370-448) |
光纤最大芯数 | 12 | 30 | |
光纤单元规格 | φ4.0 mm | φ4.5 mm | |
光缆外径 | φ20.0 mm | φ22.5 mm | |
承载截面积 | 234 mm2 | 295 mm2 | |
自重 | 1531 kg/km | 1930 kg/km | |
标称抗拉强度 (RTS) | 292 kN | 370 kN | |
20℃直流电阻 | 0.350 Ω/km | 0.279 Ω/km | |
短路电流容量(40~200℃) | 282 kA2·s | 448 kA2·s | |
线膨胀系数 | 13.1×10-6/℃ | 13.1×10-6/℃ | |
杨氏模量 | 158.8 kN/mm2 | 159.1 kN/mm2 | |
OPGW典型结构和参数
下表仅列出几种具有代表性的结构和主要参数,并不是公司产品的全部。如有任何需求,请联系本公司在当地的代表处或直接联系本公司。
层绞不锈钢管光纤单元结构(部分) | |||
结构示意图 | 结构:双层绞线的层绞不锈钢管光纤单元结构 | ||
| 订货型号 | OPGW-2S1/30(M107/R66-97) | OPGW-2S1/36(M128/R79-139) |
光纤最大芯数 | 30 | 36 | |
光纤单元规格 | φ2.7 mm | φ3.0 mm | |
光缆外径 | φ13.85 mm | φ15.2 mm | |
承载截面积 | 107 mm2 | 128 mm2 | |
自重 | 450 kg/km | 535 kg/km | |
标称抗拉强度(RTS) | 65.8 kN | 78.9 kN | |
20℃直流电阻 | 0.389Ω/km | 0.327Ω/km | |
短路电流容量(40~200℃) | 97 kA2·s | 138 kA2·s | |
线膨胀系数 | 17.4×10-6/℃ | 17.4×10-6/℃ | |
杨氏模量 | 97.6 kN/mm2 | 97.8 kN/mm2 | |
结构示意图 | 结构:双层绞线的层绞不锈钢管光纤单元结构 | ||
| 订货型号 | OPGW-2S1/30(M107/R133-57) | OPGW-2S1/36(M128/R159-81) |
光纤最大芯数 | 30 | 36 | |
光纤单元规格 | φ2.7 mm | φ3.0 mm | |
光缆外径 | φ13.85 mm | φ15.2 mm | |
承载截面积 | 107 mm2 | 128 mm2 | |
自重 | 727 kg/km | 865 kg/km | |
标称抗拉强度(RTS) | 133 kN | 159 kN | |
20℃直流电阻 | 0.803Ω/km | 0.673Ω/km | |
短路电流容(40~200℃) | 57 kA2·s | 81 kA2·s | |
线膨胀系数 | 13.0×10-6/℃ | 13.0×10-6/℃ | |
杨氏模量 | 162.0 kN/mm2 | 162.0 kN/mm2 | |
OPGW典型结构和参数
下表仅列出几种具有代表性的结构和主要参数,并不是公司产品的全部。如有任何需求,请联系本公司在当地的代表处或直接联系本公司。
层绞不锈钢管光纤单元结构(部分) | ||
结构示意图 | 结构:双层绞线的层绞不锈钢管光纤单元结构 | |
| 订货型号 | OPGW-3S1/36(M255/R116-590) |
光纤最大芯数 | 36 | |
光纤单元规格 | φ3.0 mm | |
光缆外径 | φ21.2 mm | |
承载截面积 | 255 mm2 | |
自重 | 879 kg/km | |
标称抗拉强度 | 116 kN | |
20℃直流电阻 | 0.145 Ω/km | |
短路电流容量(40~200℃) | 590 kA2·s | |
线膨胀系数 | 19.6×10-6/℃ | |
杨氏模量 | 81.5 kN/mm2 | |
结构示意图 | 结构:三层绞线的层绞不锈钢管光纤单元结构 | |
| 订货型号 | OPGW-3S1/48(M327/R407-530) |
光纤最大芯数 | 48 | |
光纤单元规格 | φ3.4 mm | |
光缆外径 | φ23.9 mm | |
承载截面积 | 327 mm2 | |
自重 | 2178 kg/km | |
标称抗拉强度 | 406 kN | |
20℃直流电阻 | 0.264 Ω/km | |
短路电流容量(40~200℃) | 530 kA2·s | |
线膨胀系数 | 13.0×10-6/℃ | |
杨氏模量 | 162.0 kN/mm2 | |
Application:
☆.OPGW cable is mainly used in 500KV, 220KV and 110KV lines, limited by power cut, security and other elements, mostly used in new lines. Its applications are:high pressure over 110kv, with a longer span (usually over 250M);
☆.easy to maintain, easy for line span, its mechanical property can meet a big line span;
☆.outer OPGW is metal armoring, with no influence for high pressure electro-corrosion and degradation;
☆.to construct OPGW must cut power, resulting in greater loss, thus OPGW must be used in constructing high pressure line over 110kv;
☆.For OPGW performance index, the more short circuit current, the more need a good conductor to be metal armor, and reduce tension strength, while, if the tension strength is certain, to increase short circuit current capacity, the only way is to enlarge metal section area, resulting in an increased cable Dia and weight, so that security is a question for line pole strength.
Characteristics:
☆.bio-function of ground wire and communication cable, avoid a huge expenditure to re-erect and re-maintain;
☆.erect on top of power overhead line pole, need not to consider its best hanging point, electro-corrosion, and others.
☆.in the process of old line transformation, cable’s outer diameter and tension may be matched better than another ground wire;
☆.big transmission capacity, good and reliable communication;
excellent mechanical and electrical property;
Good security, long lifetime, and invulnerable to gun fire.
Central Optical Fiber SUS Tube Structure (Parts) | |||
Structure Drawing | Structure:central optical fiber SUS tube structure with single stranded layer | ||
| Order Type Model | OPGW-1C1/36 (M48/R60-12) | OPGW-1C1/40 (M58/R72-16) |
Max. fiber count | 36 | 40 | |
Tube size | φ3.2 mm | φ3.5mm | |
Cable diameter | φ9.6 mm | φ10.5 mm | |
Cross-section carry area | 48 mm2 | 58 mm2 | |
Cable weight | 338 kg/km | 400 kg/km | |
Rated Tensile Strength(RTS) | 59 kN | 71 kN | |
DC resistance at 20℃ | 1.782 Ω/km | 1.490 Ω/km | |
Short current capacity (40~200℃) | 11 kA2·s | 16 kA2·s | |
Linear expansion coefficient | 13.0×10-6/℃ | 13.0×10-6/℃ | |
Young’s modulus | 162.0 kN/mm2 | 162.0 kN/mm2 | |
Structure Drawing | Structure:central optical fiber SUS tube structure with double stranded layers | ||
| Order Type Model | OPGW-2C1/30 (M127/R78-137) | OPGW-2C1/40 |
Max. fiber count | 30 | 40 | |
Tube size | φ3.0 mm | φ3.4 mm | |
Cable diameter | φ15.0 mm | φ17.0 mm | |
Cross-section carry area | 127 mm2 | 163 mm2 | |
Cable weight | 529 kg/km | 673 kg/km | |
Rated Tensile Strength(RTS) | 77 kN | 99 kN | |
DC resistance at 20℃ | 0.329 Ω/km | 0.255 Ω/km | |
Short current capacity (40~200℃) | 137 kA2·s | 226 kA2·s | |
Linear expansion coefficient | 17.5×10-6/℃ | 17.5×10-6/℃ | |
Young’s modulus | 97.3 kN/mm2 | 97.3 kN/mm2 | |
Typical Structure and Parameter of OPGW(L)
Some structures and characteristics of typical representative OPGW are shown in the below list, however, they do not represent the whole products of the company. If you have any requests, please contact local representative office or directly contact the company.
Central Optical Fiber Aluminum Clad SUS Tube Structure (Parts) | |||
Structure Drawing | Structure:central optical fiber aluminum clad SUS tube structure with single stranded layer | ||
| Order Type Model | OPGW(L)-1S 12(M83/R99-38) | OPGW(L)-1S 30(M104/R125-60) |
Max. fiber count | 12 | 30 | |
Tube size | φ4.0 mm | φ4.5 mm | |
Cable diameter | φ12.0 mm | φ13.5 mm | |
Cross-section carry area | 83 mm2 | 104 mm2 | |
Cable weight | 539 kg/km | 673 kg/km | |
Rated Tensile Strength(RTS) | 99 kN | 125 kN | |
DC resistance at 20℃ | 0.899 Ω/km | 0.724 Ω/km | |
Short current capacity (40~200℃) | 38.4 kA2·s | 59.8 kA2·s | |
Linear expansion coefficient | 13.4×10-6/℃ | 13.4×10-6/℃ | |
Young’s modulus | 153.1 kN/mm2 | 153.8 kN/mm2 | |
Structure Drawing | Structure:central optical fiber aluminum clad SUS tube structure with double stranded layers | ||
| Order Type Model | OPGW(L)-1S 12(M234/R292-282) | OPGW(L)-1S 30(M295/R370-448) |
Max. fiber count | 12 | 30 | |
Tube size | φ4.0 mm | φ4.5 mm | |
Cable diameter | φ20.0 mm | φ22.5 mm | |
Cross-section carry area | 234 mm2 | 295 mm2 | |
Cable weight | 1531 kg/km | 1930 kg/km | |
Rated Tensile Strength(RTS) | 292 kN | 370 kN | |
DC resistance at 20℃ | 0.350 Ω/km | 0.279 Ω/km | |
Short current capacity (40~200℃) | 282 kA2·s | 448 kA2·s | |
Linear expansion coefficient | 13.1×10-6/℃ | 13.1×10-6/℃ | |
Young’s modulus | 158.8 kN/mm2 | 159.1 kN/mm2 | |
Stranded Optical Fiber SUS Tube Structure (Parts) | |||
Structure Drawing | Structure:stranded optical fiber SUS tube structure with double stranded layers | ||
| Order Type Model | OPGW-2S1/30(M107/R66-97) | OPGW-2S1/36(M128/R79-139) |
Max. fiber count | 30 | 36 | |
Tube size | φ2.7 mm | φ3.0 mm | |
Cable diameter | φ13.85 mm | φ15.2 mm | |
Cross-section carry area | 107 mm2 | 128 mm2 | |
Cable weight | 450 kg/km | 535 kg/km | |
Rated Tensile Strength(RTS) | 65.8 kN | 78.9 kN | |
DC resistance at 20℃ | 0.389Ω/km | 0.327Ω/km | |
Short current capacity (40~200℃) | 97 kA2·s | 138 kA2·s | |
Linear expansion coefficient | 17.4×10-6/℃ | 17.4×10-6/℃ | |
Young’s modulus | 97.6 kN/mm2 | 97.8 kN/mm2 | |
Structure Drawing | Structure:stranded optical fiber SUS tube structure with double stranded layers | ||
| Order Type Model | OPGW-2S1/30(M107/R133-57) | OPGW-2S1/36(M128/R159-81) |
Max. fiber count | 30 | 36 | |
Tube size | φ2.7 mm | φ3.0 mm | |
Cable diameter | φ13.85 mm | φ15.2 mm | |
Cross-section carry area | 107 mm2 | 128 mm2 | |
Cable weight | 727 kg/km | 865 kg/km | |
Rated Tensile Strength(RTS) | 133 kN | 159 kN | |
DC resistance at 20℃ | 0.803Ω/km | 0.673Ω/km | |
Short current capacity (40~200℃) | 57 kA2·s | 81 kA2·s | |
Linear expansion coefficient | 13.0×10-6/℃ | 13.0×10-6/℃ | |
Young’s modulus | 162.0 kN/mm2 | 162.0 kN/mm2 | |
Stranded Optical Fiber SUS Tube Structure (Parts) | ||
Structure Drawing | Structure:stranded optical fiber SUS tube structure with three stranded layers | |
| Order Type Model | OPGW-3S1/36(M255/R116-590) |
Max. fiber count | 36 | |
Tube size | φ3.0 mm | |
Cable diameter | φ21.2 mm | |
Cross-section carry area | 255 mm2 | |
Cable weight | 879 kg/km | |
Rated Tensile Strength(RTS) | 116 kN | |
DC resistance at 20℃ | 0.145 Ω/km | |
Short current capacity (40~200℃) | 590 kA2·s | |
Linear expansion coefficient | 19.6×10-6/℃ | |
Young’s modulus | 81.5 kN/mm2 | |
Structure Drawing | Structure:stranded optical fiber SUS tube structure with three stranded layers | |
| Order Type Model | OPGW-3S1/48(M327/R407-530) |
Max. fiber count | 48 | |
Tube size | φ3.4 mm | |
Cable diameter | φ23.9 mm | |
Cross-section carry area | 327 mm2 | |
Cable weight | 2178 kg/km | |
Rated Tensile Strength(RTS) | 406 kN | |
DC resistance at 20℃ | 0.264 Ω/km | |
Short current capacity (40~200℃) | 530 kA2·s | |
Linear expansion coefficient | 13.0×10-6/℃ | |
Young’s modulus | 162.0 kN/mm2 | |
Tags:OPGW
