消色差双胶合透镜由一片冕牌玻璃正透镜和火石玻璃负透镜胶合而成，采用设计，把球差和色差降到最低。消色差镜片在多色照明以及成像方面得到了广泛的应用。使用时，平行光入射到曲率半径小的面上。
直径公差: 0.0/-0.2mm
厚度公差: ±0.2mm
焦距公差: ±0.2%
设计波长: 587.6nm
通光孔径: ≥90%
表面质量: 60/40
面 型: λ/4@633nm
平 行 度: ≤5′
倒 角: 0.3×45°
镀 膜: 见产品详细参数表

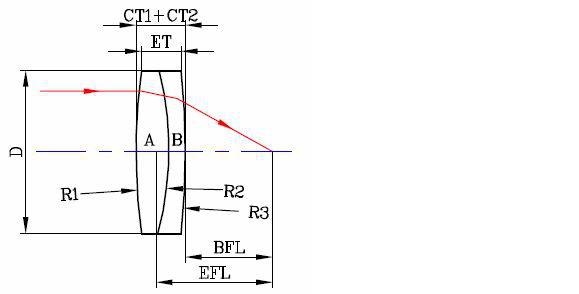

| 编号 | 尺寸(mm) (直径D) | 有效焦距 EFL(mm) | 后焦距 BFL(mm) | 中心厚度 CT1(mm) | 中心厚度 CT1(mm) | 中心厚度 CT(mm) | 边缘厚度 ET(mm) | 半径 R1(mm) | 半径 R2(mm) | 半径 R3(mm) | 材料 |
| ACD-001 | 11 | 44.1 | 42.4 | 2.8 | 1.0 | 3.8 | 3.1 | 30.06 | 17.78 | 54.19 | H-K9L/F4 |
| ACD-002 | 13 | 73.3 | 59.8 | 6.3 | 1.7 | 8.0 | 6.9 | 14.03 | 10.00 | -42.19 | H-ZK9A/ZF7L |
| ACD-003 | 14 | 45.3 | 42.9 | 3.3 | 1.0 | 4.3 | 3.1 | 26.12 | 19.72 | 81.75 | H-K9L/F4 |
| ACD-004 | 16 | 36.0 | 30.7 | 6.4 | 0.7 | 7.1 | 4.7 | 14.50 | 16.82 | ∞ | H-K9L/H-ZF2 |
| ACD-005 | 17 | 29.4 | 25.0 | 5.8 | 2.5 | 8.3 | 5.2 | 17.18 | 14.45 | 42.46 | H-K9L/H-ZF2 |
| ACD-006 | 18 | 42.5 | 32.8 | 5.7 | 2.3 | 8.0 | 5.9 | 12.07 | 49.74 | -22.48 | H-BaK2/H-ZF11 |
| ACD-007 | 18 | 60 | 56.9 | 5.5 | 3.0 | 8.5 | 6.9 | 41.87 | 25.71 | 68.88 | H-BaK2/H-ZF11 |
| ACD-008 | 20 | 36.4 | 28.9 | 7.7 | 2.1 | 9.8 | 6.1 | 15.44 | 18.19 | ∞ | H-K9L/H-ZF1 |
| ACD-009 | 20 | 60 | 56.4 | 7.2 | 0.8 | 8.0 | 6.1 | 37.20 | 27.86 | 86.82 | H-BaK2/H-ZF11 |
| ACD-010 | 20 | 356 | 291.2 | 6.9 | 3.1 | 10.0 | 8.3 | 16.48 | 23.01 | -31.41 | H-K9L/H-ZF6 |
| ACD-011 | 21 | 120.4 | 99.3 | 7.3 | 3.2 | 10.5 | 8.6 | 18.65 | 22.65 | 41.30 | H-K9L/H-ZF2 |
| ACD-012 | 22 | 75.8 | 72.4 | 4.9 | 2.0 | 6.9 | 5.2 | 47.21 | 32.66 | 119.95 | H-K9L/F5 |
| ACD-013-OC | 22 | 82.1 | 78.9 | 4.4 | 1.9 | 6.3 | 4.7 | 49.66 | 34.28 | 128.82 | H-K9L/F4 |
| ACD-013-XO | 22 | 82.1 | 78.9 | 4.4 | 1.9 | 6.3 | 4.7 | 49.66 | 34.28 | 128.82 | H-K9L/F4 |
| ACD-013-OO | 22 | 82.1 | 78.9 | 4.4 | 1.9 | 6.3 | 4.7 | 49.66 | 34.28 | 128.82 | H-K9L/F4 |
| ACD-013-BB | 22 | 82.1 | 78.9 | 4.4 | 1.9 | 6.3 | 4.7 | 49.66 | 34.28 | 128.82 | H-K9L/F4 |
| ACD-014-BB | 22.8 | 86.9 | 83.8 | 4.5 | 1.5 | 6.0 | 4.3 | 51.52 | 33.42 | 130.02 | H-K9L/F1 |
| ACD-014-OO | 22.8 | 86.9 | 83.8 | 4.5 | 1.5 | 6.0 | 4.3 | 51.52 | 33.42 | 130.02 | H-K9L/F1 |
| ACD-015 | 22.8 | 94.7 | 91.0 | 4.4 | 1.5 | 5.9 | 3.5 | 46.03 | 37.24 | 188.80 | H-K11/F6 |
| ACD-017-M1 | 23 | 79.5 | 75.5 | 5.5 | 2.5 | 8.0 | 6.2 | 48.87 | 32.96 | 119.12 | H-K9L/F4 |
| ACD-017-M2 | 23 | 79.5 | 75.5 | 5.5 | 2.5 | 8.0 | 6.2 | 48.87 | 32.96 | 119.12 | H-K9L/F4 |
| ACD-017-OC | 23 | 79.5 | 75.5 | 5.5 | 2.5 | 8.0 | 6.2 | 48.87 | 32.96 | 119.12 | H-K9L/F4 |
| ACD-017-OD | 23 | 79.5 | 75.5 | 5.5 | 2.5 | 8.0 | 6.2 | 48.87 | 32.96 | 119.12 | H-K9L/F4 |
| ACD-017-XB | 23 | 79.5 | 75.5 | 5.5 | 2.5 | 8.0 | 6.2 | 48.87 | 32.96 | 119.12 | H-K9L/F4 |
| ACD-017-XO | 23 | 79.5 | 75.5 | 5.5 | 2.5 | 8.0 | 6.2 | 48.87 | 32.96 | 119.12 | H-K9L/F4 |
| ACD-017-OB | 23 | 79.5 | 75.5 | 5.5 | 2.5 | 8.0 | 6.2 | 48.87 | 32.96 | 119.12 | H-K9L/F4 |
| ACD-017-OO | 23 | 79.5 | 75.5 | 5.5 | 2.5 | 8.0 | 6.2 | 48.87 | 32.96 | 119.12 | H-K9L/F4 |
| ACD-018-BB | 25.3 | 102.4 | 98.7 | 5.0 | 2.3 | 7.3 | 5.6 | 61.24 | 42.46 | 164.44 | H-K9L/F4 |
| ACD-018-OB | 25.3 | 102.4 | 98.7 | 5.0 | 2.3 | 7.3 | 5.6 | 61.24 | 42.46 | 164.44 | H-K9L/F4 |
| ACD-019-XO | 26.5 | 97.8 | 93.3 | 6.0 | 3.0 | 9.0 | 7.0 | 59.57 | 40.74 | 150.31 | H-K9L/F4 |
| ACD-019-BB | 26.5 | 97.8 | 93.3 | 6.0 | 3.0 | 9.0 | 7.0 | 59.57 | 40.74 | 150.31 | H-K9L/F4 |
| ACD-019-OO | 26.5 | 97.8 | 93.3 | 6.0 | 3.0 | 9.0 | 7.0 | 59.57 | 40.74 | 150.31 | H-K9L/F4 |
| ACD-020-OO | 26.5 | 108.7 | 105.4 | 5.0 | 2.0 | 7.0 | 5.2 | 67.76 | 47.53 | 147.52 | H-K9L/ZF1 |
| ACD-020-XO | 26.5 | 108.7 | 105.4 | 5.0 | 2.0 | 7.0 | 5.2 | 67.76 | 47.53 | 147.52 | H-K9L/ZF1 |
| ACD-021 | 26.5 | 126 | 103.1 | 10.1 | 2.5 | 12.6 | 8.8 | 21.33 | 23.17 | -112.70 | H-K9L/ZF7L |
| ACD-022 | 27 | 110.6 | 106.2 | 6.5 | 1.8 | 8.3 | 6.5 | 66.82 | 47.69 | 177.70 | H-K9L/F4 |
| ACD-023 | 30 | 54.1 | 46.8 | 10.0 | 1.7 | 11.7 | 6.9 | 30.19 | 24.91 | 133.72 | H-BaK8/H-ZF3 |
| ACD-024-OO | 33 | 123.2 | 117.8 | 6.9 | 2.3 | 9.2 | 6.6 | 65.46 | 48.19 | 248.90 | H-K9L/F1 |
| ACD-024-OD | 33 | 123.2 | 117.8 | 6.9 | 2.3 | 9.2 | 6.6 | 65.46 | 48.19 | 248.90 | H-K9L/F1 |
| ACD-025 | 33.5 | 106.7 | 101.7 | 6.8 | 2.3 | 9.1 | 6.4 | 65.46 | 48.31 | 233.30 | BaK7/ZF2 |
| ACD-026 | 42 | 80 | 73.1 | 16.0 | 1.5 | 17.5 | 11.7 | 69.18 | 28.44 | 86.70 | H-BaK7/H-ZF1 |
| ACD-027 | 42 | 143.9 | 138.1 | 8.2 | 3.6 | 11.8 | 8.4 | 89.26 | 61.57 | 216.80 | H-K9L/F4 |
| ACD-028 | 46 | 376 | 371.2 | 8.0 | 2.8 | 10.8 | 8.7 | 199.70 | 83.32 | 346.00 | H-K9L/H-ZF2 |
| ACD-029 | 51.5 | 294.2 | 289.4 | 7.0 | 4.0 | 11.0 | 8.3 | 176.00 | 176.00 | 380.90 | H-K9L/H-ZF7 |
| ACD-030 | 67.9 | 500.8 | 495.0 | 8.0 | 4.0 | 12.0 | 9.3 | 304.43 | 213.32 | 705.55 | H-K9L/H-ZF1 |
| ACD-031 | 12 | 15 | 10.0 | 6.5 | 2.0 | 8.5 | 6.1 | 9.55 | 9.55 | 57.30 | H-LaK51/H-ZF62 |
| ACD-032 | 25 | 35 | 26.9 | 11.0 | 4.0 | 15.0 | 10.48 | 23.40 | 20.11 | 87.52 | H-LaK10/H-ZF7LA |
注：点击相关下载，即可下载产品规格表
'
