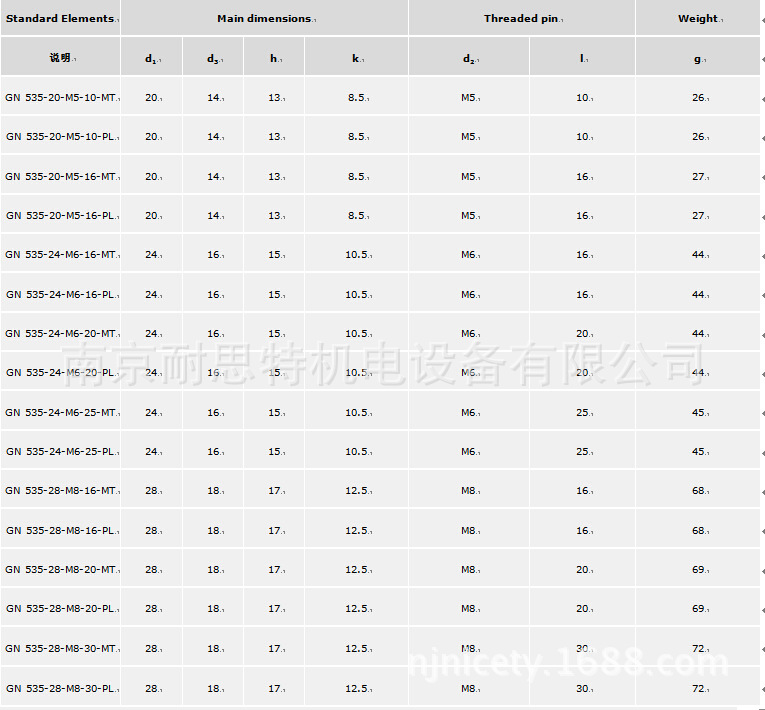

Standard Elements

Main dimensions

Threaded pin

Weight

说明

d1

d3

h

k

d2

l

g

GN 535-20-M5-10-MT

20

14

13

8.5

M5

10

26

GN 535-20-M5-10-PL

20

14

13

8.5

M5

10

26

GN 535-20-M5-16-MT

20

14

13

8.5

M5

16

27

GN 535-20-M5-16-PL

20

14

13

8.5

M5

16

27

GN 535-24-M6-16-MT

24

16

15

10.5

M6

16

44

GN 535-24-M6-16-PL

24

16

15

10.5

M6

16

44

GN 535-24-M6-20-MT

24

16

15

10.5

M6

20

44

GN 535-24-M6-20-PL

24

16

15

10.5

M6

20

44

GN 535-24-M6-25-MT

24

16

15

10.5

M6

25

45

GN 535-24-M6-25-PL

24

16

15

10.5

M6

25

45

GN 535-28-M8-16-MT

28

18

17

12.5

M8

16

68

GN 535-28-M8-16-PL

28

18

17

12.5

M8

16

68

GN 535-28-M8-20-MT

28

18

17

12.5

M8

20

69

GN 535-28-M8-20-PL

28

18

17

12.5

M8

20

69

GN 535-28-M8-30-MT

28

18

17

12.5

M8

30

72

GN 535-28-M8-30-PL

28

18

17

12.5

M8

30

72
