【saipwell HVL031-400W/加热器/恒温加热器/配电柜升温器】价格_厂家

品牌

saipwell

型号

HVL031-400W

换热方式

混合式加热器

装置方式

立式

加热功率

400Wkw

温度范围

-45~70℃

工作压力

230MPa

换热面积

.㎡

换热系数

.W/㎡•K

undefined

用途：		紧凑高性能风机加热器可预防凝露的形成，该产品有带风机式加热器，型号为HVL031,也有不带风机式的，型号为HV031。
加热体材料:		铝 die-cast aluminium
发热原件:		high performance cartridge
温度安全保护:		保护过热引起的风扇不工作
接线方式:		3-pole screw connector 2.5mm clamping torque 0.8Nm max.
安装方式:		35mmDIN导轨安装\EN 60715
操作/储存环境:		-45 to +70℃ (-49 to +158°F)
防护等级:		IP20 / I (earthed)
风机连接方式:		2极螺丝连接\2.5mm2导线(L2/N2)
端子接线盒材料:		黑色塑料,UL94V-0标准,V-0防火等级
滚珠风机:		使用寿命50,000小时25℃(77°F)

项目．230VAC, 50/60 Hz	项目． 120VAC, 50/60 Hz	能量	最小空气流量	尺寸规格	重量（大约）
03102.0-00	03102.9-00	100W	35m³/h	80 x 112 x 47mm	0.60kg
03103.0-00	03103.9-00	150W	35m³/h	80 x 112 x 47mm	0.60kg
03113.0-00	03113.9-00	200W	108m³/h	119 x 151 x 47mm	0.90kg
03114.0-00	03114.9-00	300W	108m³/h	119 x 151 x 47mm	0.90kg
03115.0-00	03115.9-00	400W	108m³/h	119 x 151 x 47mm	0.90kg

undefined

英文说明：

Compact
Flat design
High air through-flow
Temperature safety cut-out
Clip fixing

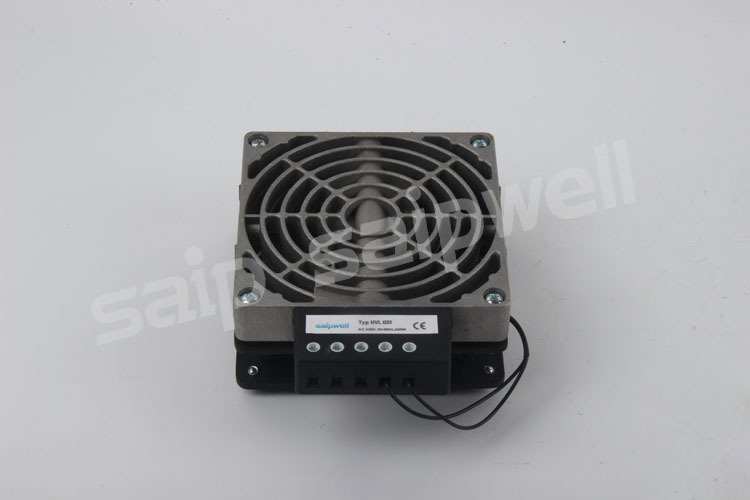

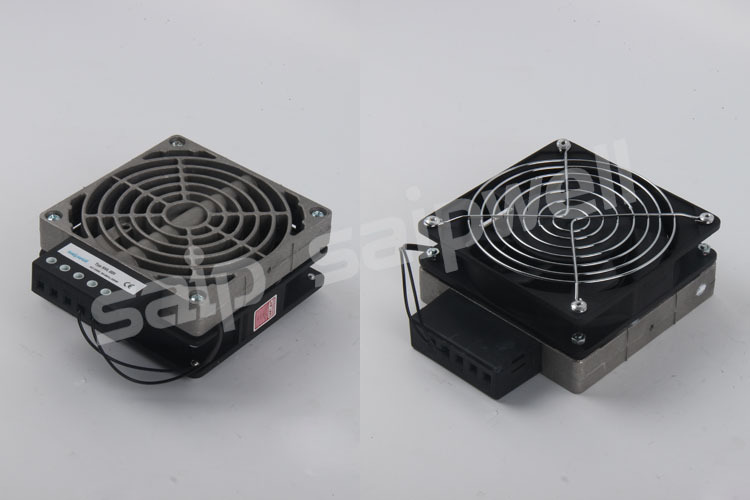

The compact high-performance fan heater prevents formation of condensation in control or switch systems and provides an evenly distributed interior air temperature in enclosures. This fan heater is available with fan (HVL 031) as well as without fan (HV 031).

HVL 031	Heater with f
Heating element	high performance cartridge
Temperature safety cut-out	to protect against overheating in case of fan failure
Heater body	die-cast aluminium (glass bead blasted)
Connection	3-pole screw connector 2.5mm², clamping torque 0.8Nm max.
Connection casing	plastic according to UL94 V-0, black
Mounting	clip for 35mm DIN rail, EN 50022
Fitting position	horizontal
Operating/Storage temperature	-45 to +70 °C (-49 to +158 °F)
Protection type/Protection class	IP20 / I (earthed)
Axial fan, ball bearing	airflow see table
	service life 50 000h at 25°C (77°F)
Connection (axial fan)	2-pole screw connector 2.5mm² (L2/N2)
Approvals	UL File No. E187294 (VDE: 230VAC only)
