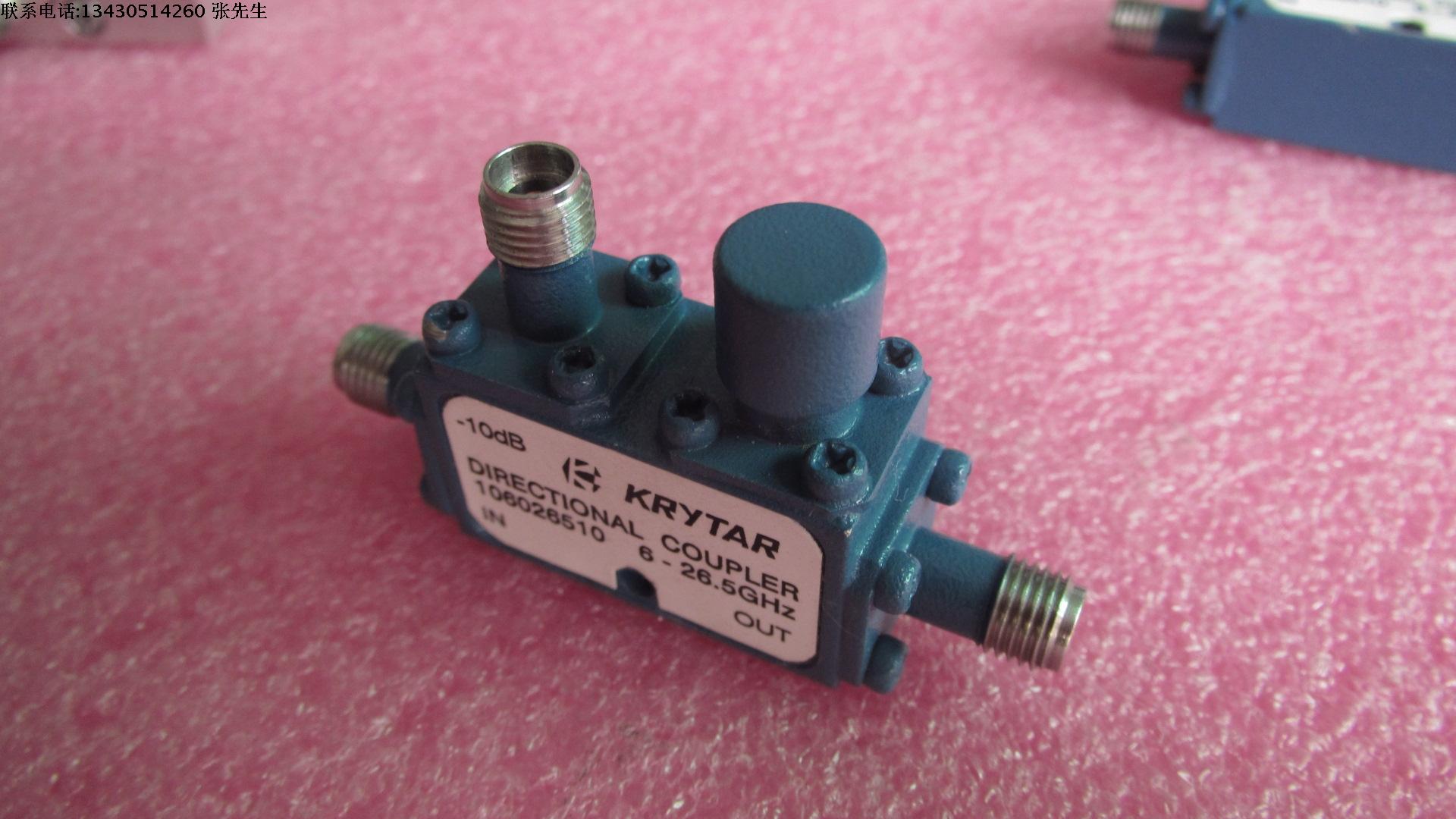

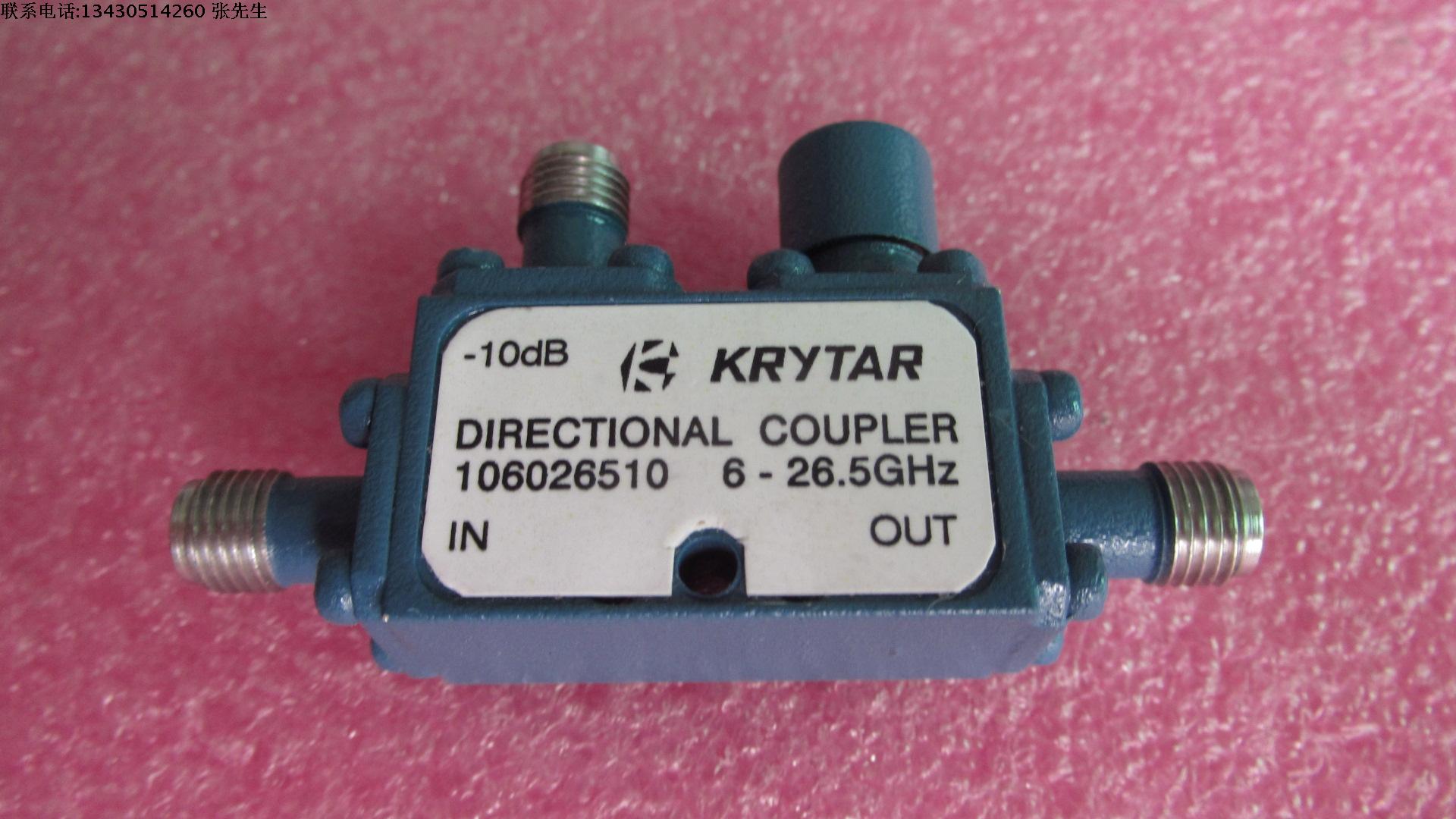

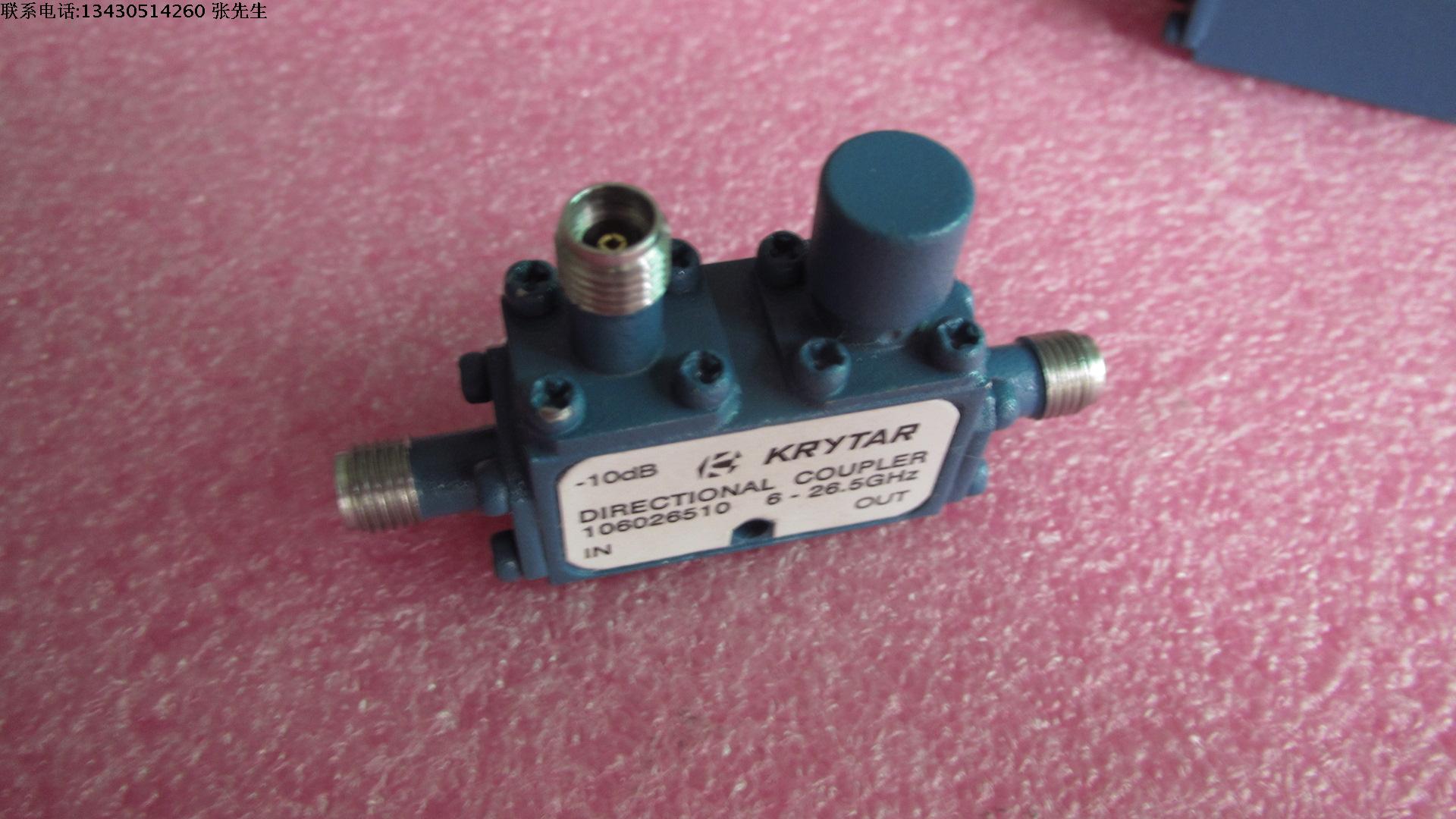

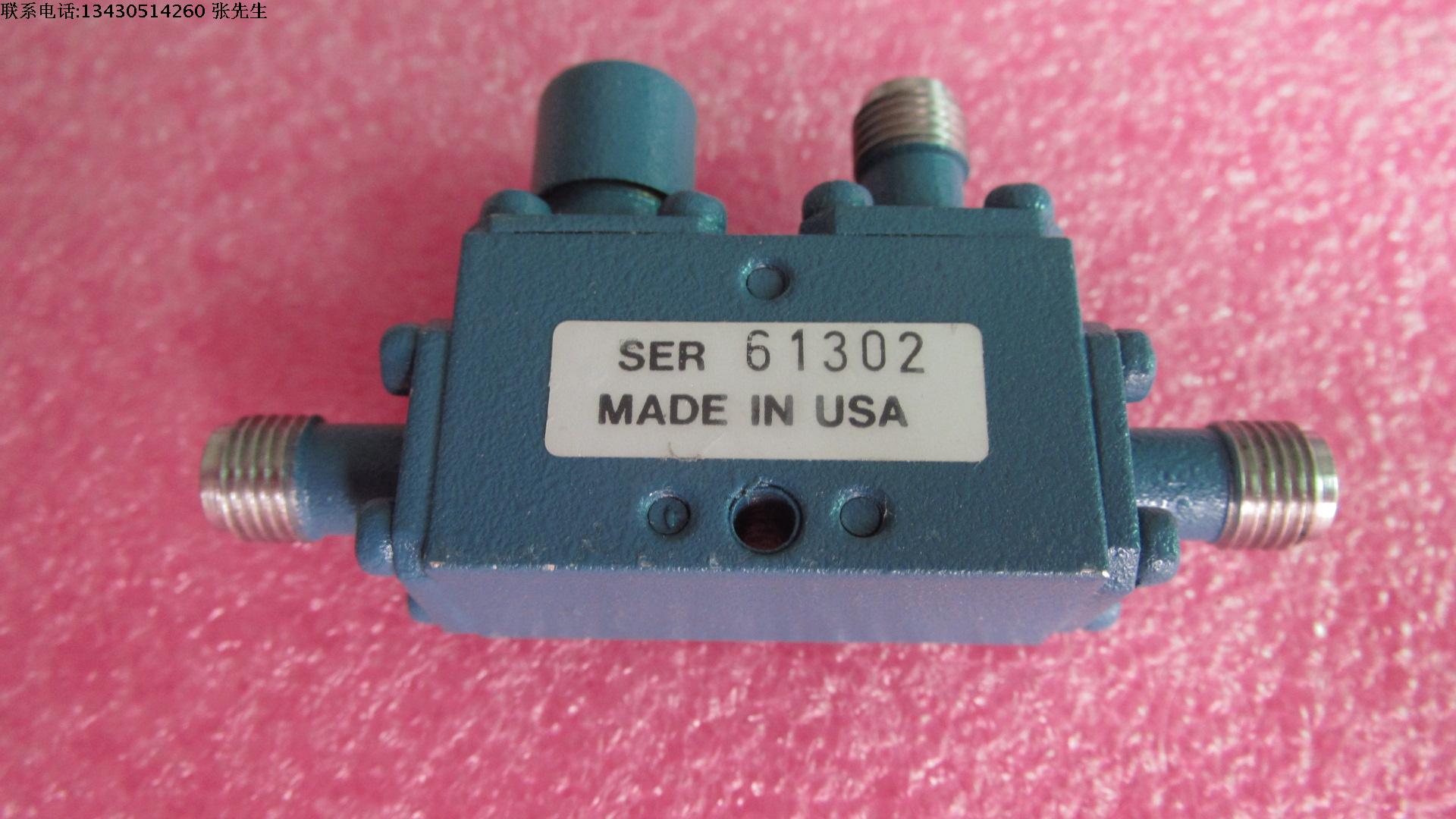

KRYTAR 106026510 6-26.5GHz 10dB 3.5mm  射频同轴定向耦合器质量保修3年

型号:106026510

工作频率：6-26.5GHz

耦合度：10dB

接头：3.5mm

SPECIFICATIONS DIMENSIONS
FREQUENCY RANGE 6.0-26.5 GHz
COUPLING (with respect to output)
Nominal 106026510 10 ± 0.5 dB
106026520 20 ± 1.0 dB
Frequency Sensitivity ± 0.3 dB
Nominal 106026530 30 ± 1.0 dB
Frequency Sensitivity ± 0.5 dB
DIRECTIVITY 106026510 > 13 dB
106026520 > 14 dB
106026530 > 14 dB
MAXIMUM VSWR 106026510 1.40
(any port) 106026520 1.40
106026530 1.45
INSERTION LOSS 106026510 < 1.3 dB
(includes coupled power) 106026520 < 0.8 dB
106026530 < 0.7 dB
POWER RATING (input)
Average 20 W
Peak 3 KW
STANDARD CONNECTORS 3.5mm Female
Optional: 3.5mm Male
WEIGHT (ounces) 1.1
OPERATING TEMPERATURE -54o to +85o C
