【供应德国原装进口ELESA 带手柄及凹口钥匙的快装闩锁CSL.FM】价格_厂家

品牌

ELESA

型号

CSL.FM

类型

带手柄及凹口钥匙的快装闩锁

制造标准

德标

样品或现货

现货

加工定制

否

标准编号

CSL.FM

适用范围

广泛

规格尺寸

见参数

是否标准件

标准件

标准类型

德标

长春茗允精密机械有限公司（图纸及参数）

手机：13057600135 电话：025-85982030

传真：025-86456010 QQ：2853636626

Email:704817724@qq.com

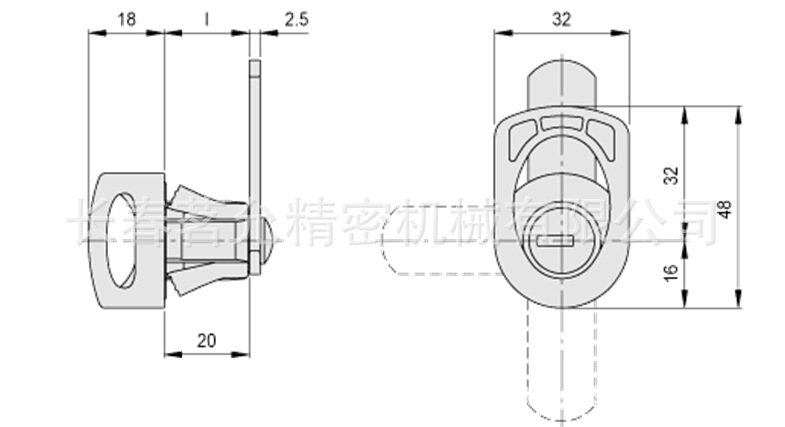

CSL.FM

带手柄及凹口钥匙的快装闩锁

QQ图片20150206131453
undefined

Technical information

Stator

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour.

Rotor

Chrome-plated zinc alloy.

Front plate

Stainless steel.

Packing ring

Silicon directly applied onto the back side of the stator head.

Washer with elastic fixing wings

Zinc-plated steel.

Closing lever

Zinc-plated steel, 2.5 mm thickness.

Screw

M5x5 zinc-plated.

Two keys

Nickel-plated brass, removable in two positions at 180°.

Rotation

180°.

IP protection

IP 65 protection class, ording to IEC 529.

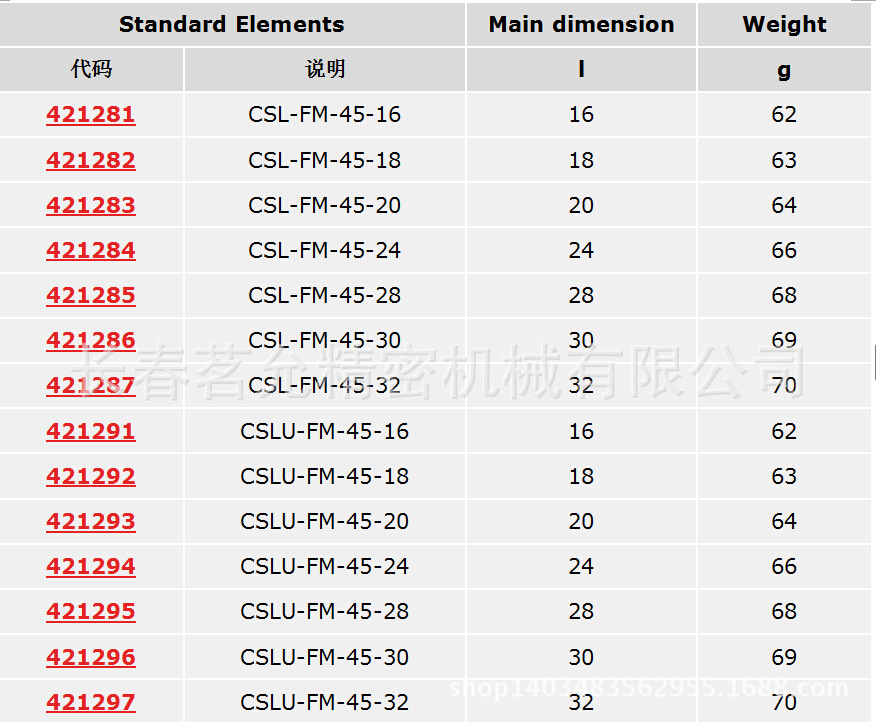

Standard executions

- CSL.: lock with 400 different combinations. Each lock has a couple of keys with different combination.
- CSLU.: lock with one combination. All locks have the same combination and can be opened with the same key.

Disassembly tool (to be ordered separately)

Code 421280 ATTREZZO CSL.FM in AISI 304 stainless steel.

Special executions and essories

- Closing levers in other dimensions.
- Brass threaded extension for prolonged positioning of the lever, only for stator lengths l1 = 20, 25 and 30 mm (code 421137 C.PQ M5/58).

2 (1)

Features

Quick assembly with steel plate thickness ranging from 1 to 2 mm latches.

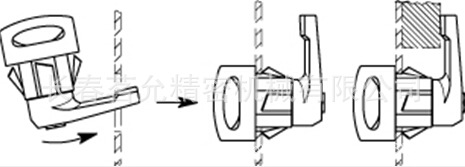

Assembly instructions

The latch is inserted in the mounting hole of the door on the lever side (see picture) until the wings of the elastic washer snap in, ensuring complete fastening.
The latches are supplied with assembled lever for faster mounting.
Where needed, the latch can be disassembled from the inside of the door by means of a disassembling tool (to be ordered separately).

2 (2)
