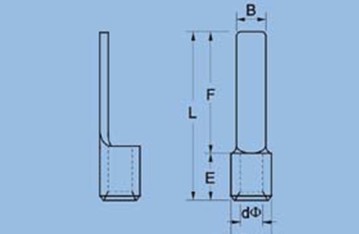

ITEM NO.	DIMENSION
ITEM NO.	B	L	F	E	DΦ	dΦ
DBN1.25-10	2.3	14.8	10	4.8	3.4	1.7
DBN1.25-11	3	15.8	11
DBN1.25-14	3	18.8	14
DBN1.25-18	2.3	22.8	18
CABLE SIZE:0.5-1.5mm²A.W.G.22-16 MAX CRRENT:19A THICKNESS:0.75mm
DBN2-9	2.85	13.8	9	4.8	4.1	2.3
DBN2-18	2.3	22.8	18	4.8	4.1	2.3
CABLE SIZE:0.5-1.5mm²A.W.G.22-16 MAX CRRENT:19A THICKNESS:0.8mm
DBN5.5-10	2.8	14.8	10	6	5.6	3.4
DBN5.5-14	4.5	21	14
DBN5.5-18	4.5	23	18
DBN8-14	5	22.5	14	8.5	7.2	4.5
DBN14-16	6	30.6	16	14	9	6.5
CABLE SIZE:0.5-1.5mm²A.W.G.22-16 MAX CRRENT:19A THICKNESS:1mm
