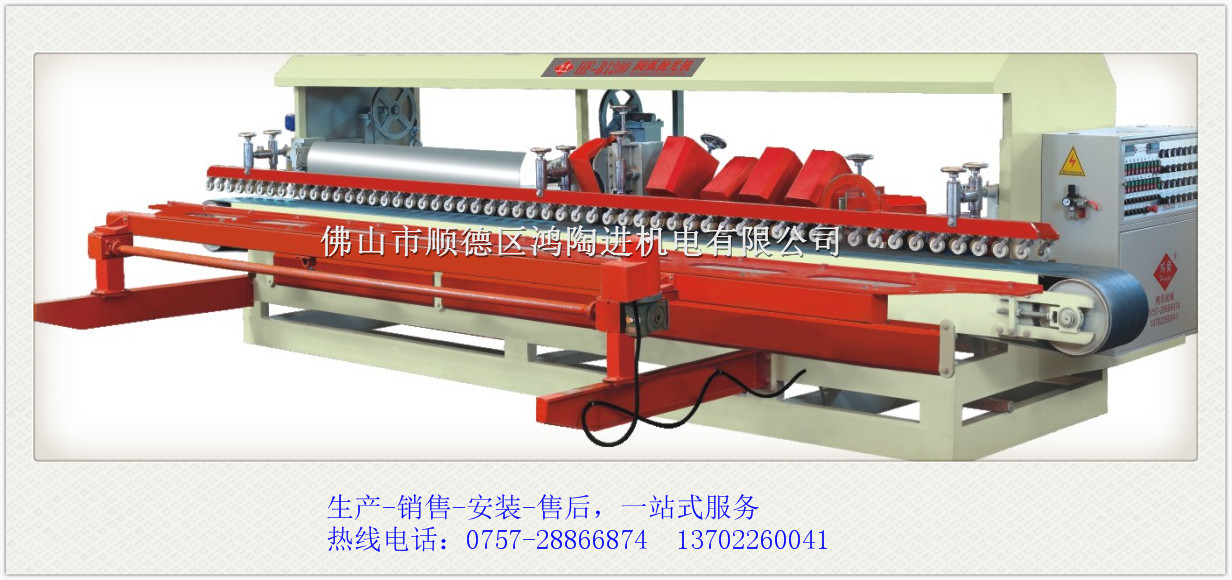

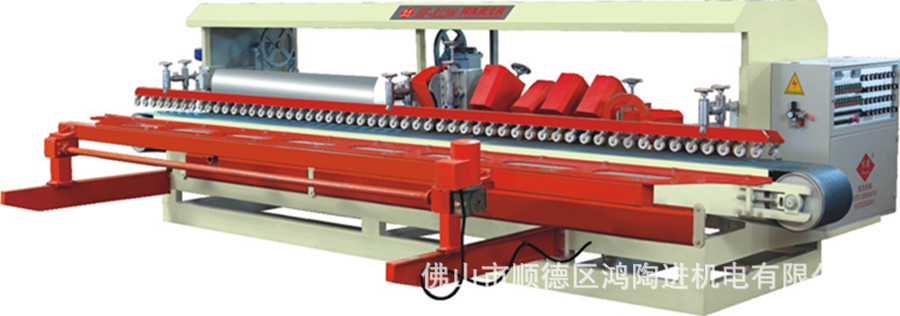

HF-R1200圆弧抛光机
HF-R1200 Arc polishing machine
HF-R圆弧抛光机是我厂的传统产品，它可以把任何级别的抛光砖和石材进行弧面加工而成为靓丽的梯级砖和地角线。该机生产过程全自动运作，操作简单方便，可随意调节生产线的速度，可随意调节所加工的圆弧面的大小。亦可抛光45º角度。选用鸿发圆弧抛光机，祝你企业腾飞。
HF-R Arc polishing machine is our traditional superior product,its suitable for polishing the edge of ceramic,marble,granite to make beautiful skirting and step tile.
It also can make and polishing 45° tile edge.Simple operation,full automatic and high capacity.
型号 | Description | 单位/Unit | HF-R10 | HF-R14 | HF-R20 |
输送带数量 | Qty. of conveying belt | pcs | 1 | 1 | 1 |
抛光磨头数量 | Number of polishing heads | pcs | 10 | 14 | 20 |
抛光磨头直径 | Dia of polishing heads | mm | Φ100 | Φ100 | Φ100 |
倒角磨边轮数量 | Qty.of squaring and chamfering wheel | pcs | 5 | 6 | 6 |
倒角磨边轮直径 | Dia of squaring chamfering wheel | mm | Φ150 | Φ150 | Φ150 |
开槽数量 | Qty. Of grooving wheel | pcs | 2-4 | 2-4 | 2-4 |
开槽刀片直径 | Dia of the grooving wheel | mm | Φ150 | Φ150 | Φ150 |
气动倒边角磨头数量 | Numbers of down chamfering head | pcs | 1 | 1 | 1 |
气动倒边角磨头直径 | Dia of down chamfering head | mm | Φ100 | Φ100 | Φ100 |
吹干出风口 | Qty of drying line | pcs | 2 | 2 | 2 |
工作宽度 | Working width | mm | 80-1200 | 80-1200 | 80-1200 |
抛光速度 | Polishing speed | m/min | 3-4 | 4-6 | 8-10 |
加工砖厚度 | Working thickness | mm | 6-30 | 6-30 | 6-30 |
总功率 | Total Power | kw | 29 | 33 | 39 |
耗气量 | Air consumption | L/min | 50 | 55 | 55 |
外型尺寸 | Dimension | m×m×m | 6.5×2.2×1.8 | 7.9*2.2*1.8 | 8.6*2.2*1.8 |
重量 | Weight | kg | 4000 | 5300 | 63 |
'
