性能和外形尺寸 Performance and Dimension

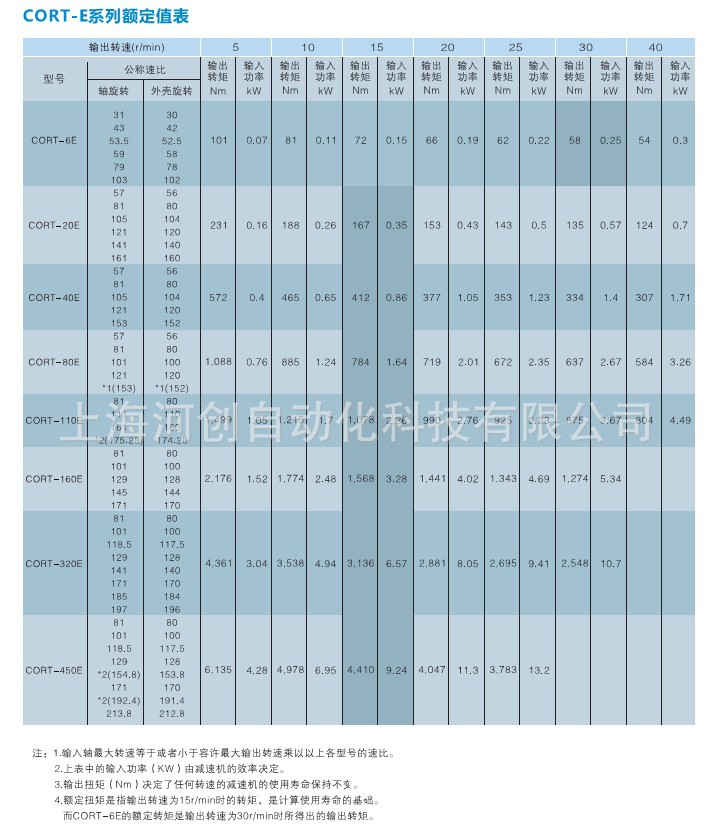

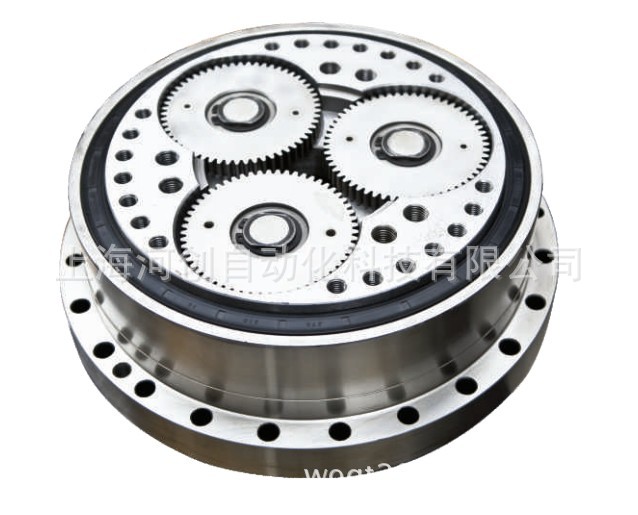

CORT-E减速器性能和外形尺寸
CORT-E Reducer Performance and Dimension
型号 Model | 额定转矩 Load torque （N-M） | 传动比 Ratio | 外形尺寸 Dimension |
D | d | M | L | A |
CORT-6E | 58 | 31~103 | 122 | 103 | 86 | 53 | 4 |
CORT-20E | 167 | 57~161 | 145 | 124 | 105 | 65 | 5.5 |
CORT-40E | 412 | 57~153 | 190 | 160 | 135 | 76 | 7 |
CORT-80E | 784 | 57~153 | 222 | 190 | 160 | 84 | 11 |
CORT-110E | 1078 | 81~175.28 | 244 | 208 | 182 | 92.5 | 14 |
CORT-160E | 1568 | 81~171 | 280 | 240 | 204 | 104 | 8 |
CORT-320E | 3136 | 81~185 | 325 | 284 | 245 | 125 | 8 |
CORT-450E | 4410 | 81~192.4 | 370 | 328 | 275 | 140 | 8 |
性能和外形尺寸 Performance and Dimension
CORT-C减速器性能和外形尺寸
CORT-C Reducer Performance and Dimension
型号 Model | 额定转矩 Load torque （N-M） | 传动比 Ratio | 外形尺寸 Dimension |
D | d | M | L | A |
CORT-10C | 98 | 27 | 147 | 146 | 110 | 59 | 4 |
CORT-27C | 265 | 36.57 | 182 | 181 | 140 | 67.5 | 5 |
CORT-50C | 490 | 32.54 | 222.5 | 222 | 176 | 79 | 5 |
CORT-100C | 980 | 36.75 | 250.5 | 250 | 199 | 82.5 | 5 |
CORT-200C | 1961 | 34.86 | 347 | 346 | 260 | 120.5 | 7 |
CORT-320C | 3136 | 35.61 | 438 | 440 | 340 | 126 | 5.5 |
CORT-500C | 4900 | 37.34 | 475 | 520 | 390 | 162.5 | 7.5 |
'
