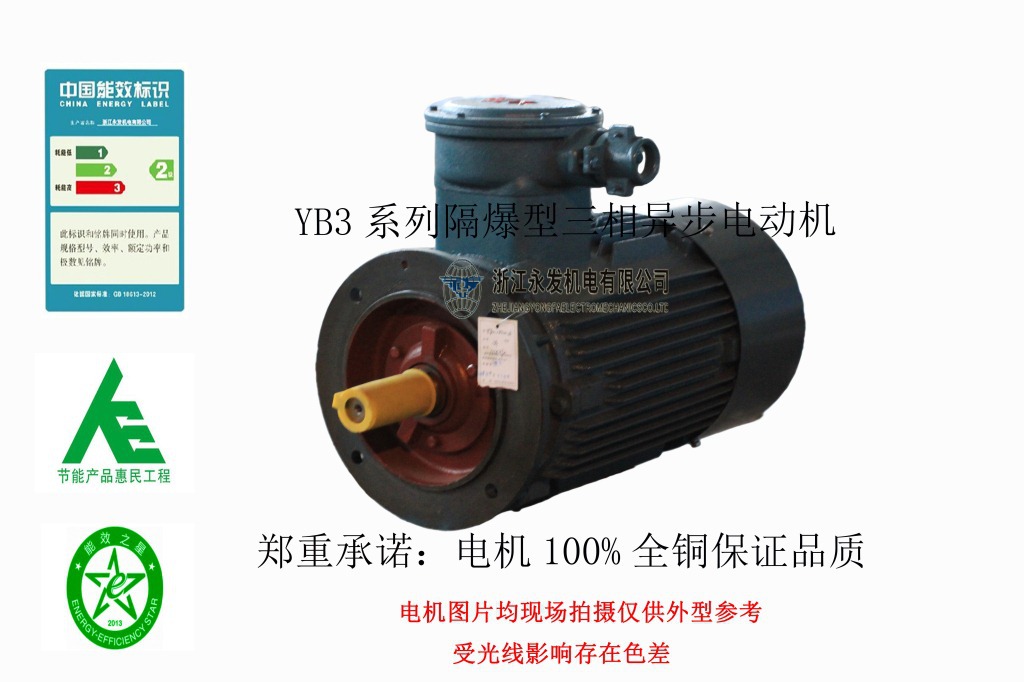

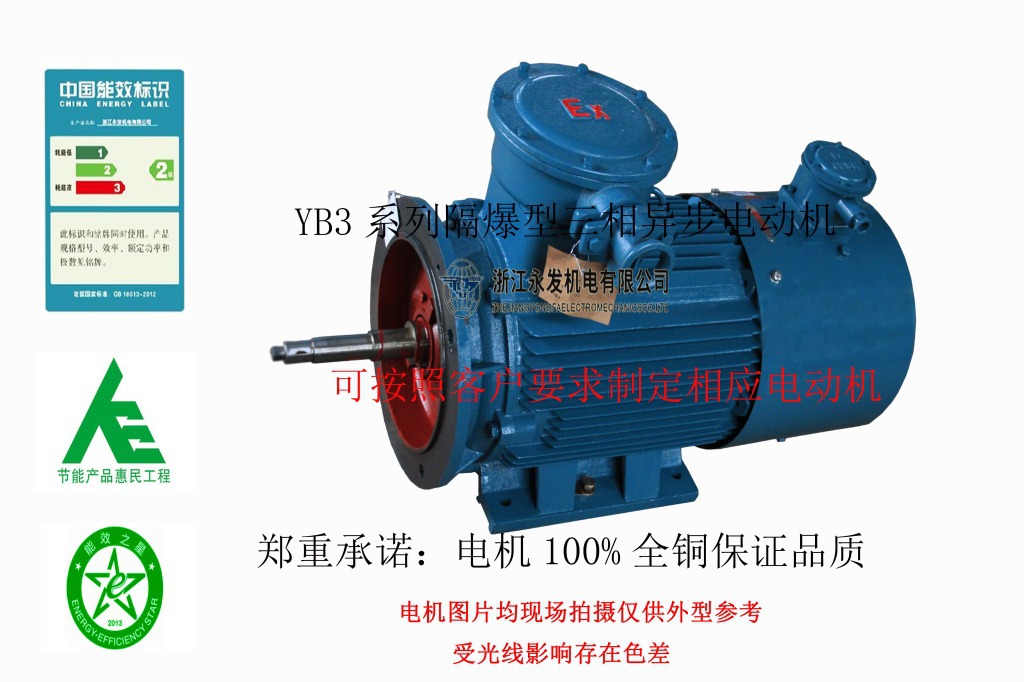

永发 YB3系列隔爆型三相异步电机 2级能效YB3-225M-2-45KW
浙江永发机电有限公司
盐官镇
产品属性
图文详情
品牌推荐
'
永发机电 专注电机48年 品质好 质量优 更节能更省电
先进一流生产车间 国际先进的技术生产水平 严格把关保证每一台电机质量性能
绝不偷工减料 绝不用劣质材料绝不会虚标
浙江永发电机有限公司已荣获能效之星，成功入围国家节能惠民工程
浙江永发机电有限公司生产的YB3系列隔爆型三相异步电机通过了中国质量认证中心(CQC)的产品认真，获得"中国节能产品认证"证书（证书编号：CQC13701099992）.在2013年被国家评为"能效之星"企业和国家高效电机”节能产品惠民工程“企业.
型号 Type | 功率（KW） Output | 效率（%） Effciency | 功率因数（CosΦ） Power Factor | 级数 Pole number | 额定转速（r/min） Rated speed | 绝缘等级 insulation level | 防护等级 Protection grade |
| YB3-225M | 45 | 94 | 0.90 | 2 | 2960 | F | IP55 |
| YB3-225 | 45 | 94.2 | 0.87 | 4 | 1480 | F | IP55 |
YB3-280S | 45 | 93.7 | 0.86 | 6 | 990 | F | IP55 |
YB3系列隔爆型电动机与YB2系列隔爆型电动机节电效果一一一点击这里
YB3系列隔爆型电动机结构外形及安装尺寸一一一点击这里

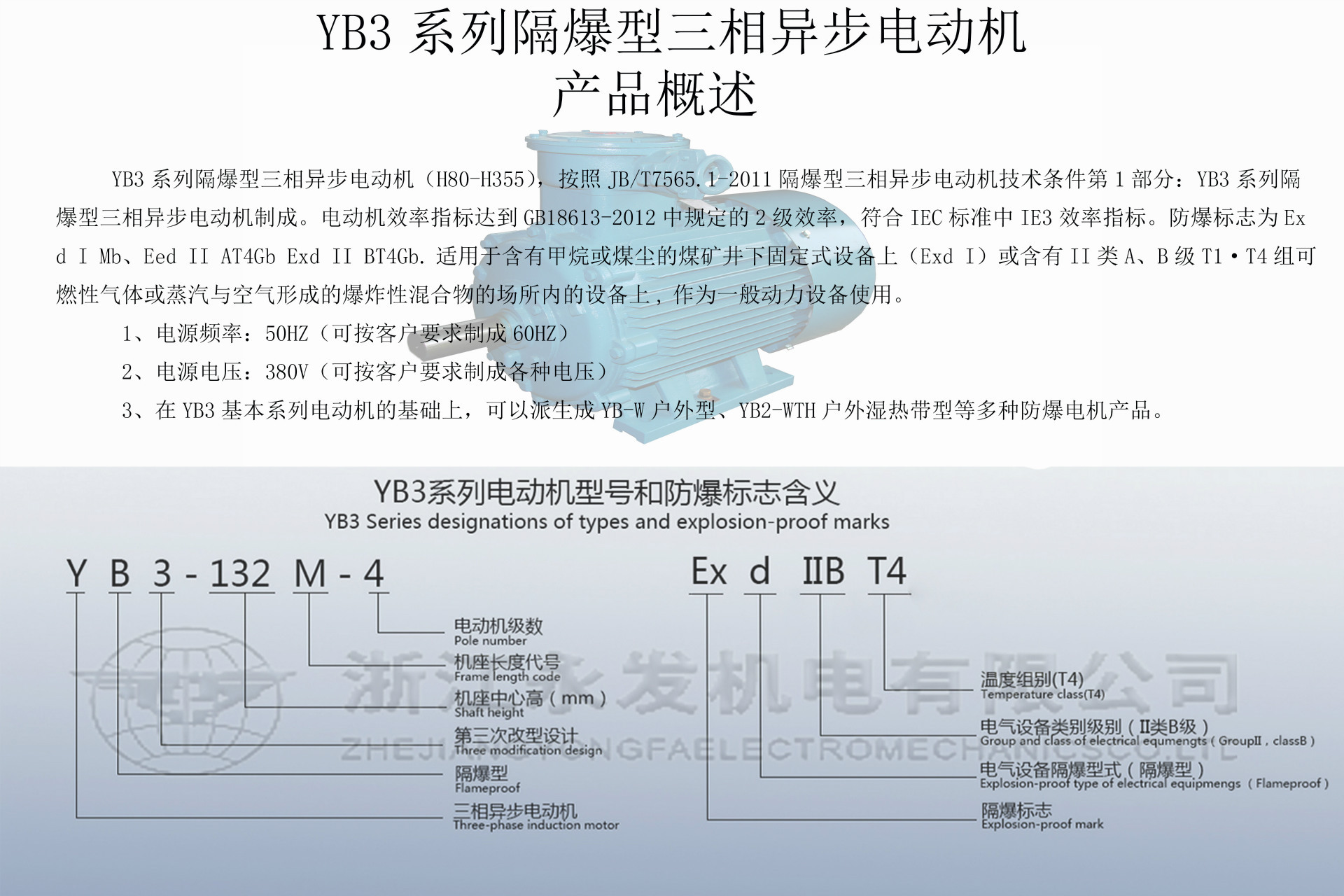

| YB3隔爆型三相异步电动机型号 | ||
| 型号 | 型号 | 型号 |
| YB3-80M1-2-0.75KW | YB3-80M2-4-0.75KW | YB3-90S-6-0.75KW |
| YB3-80M2-2-1.1KW | YB3-90S-4-1.1KW | YB3-90L-6-1.1KW |
| YB3-90S-2-1.5KW | YB3-90L-4-1.5KW | YB3-100L-6-1.5KW |
| YB3-90L-2-2.2KW | YB3-100L1-4-2.2KW | YB3-112M-6-2.2KW |
| YB3-100L-2-3KW | YB3-100L2-4-3KW | YB3-132S-6-3KW |
| YB3-112M-2-4KW | YB3-112M-4-4KW | YB3-132M1-6-4KW |
| YB3-132S1-2-5.5KW | YB3-132S-4-5.5KW | YB3-132M2-6-5.5KW |
| YB3-132S2-2-7.5KW | YB3-132M-4-7.5KW | YB3-160M-6-7.5KW |
| YB3-160M1-2-11KW | YB3-160M-4-11KW | YB3-160L-6-11KW |
| YB3-160M2-2-15KW | YB3-160L-4-15KW | YB3-180L-6-15KW |
| YB3-160L-2-18.5KW | YB3-180M-4-18.5KW | YB3-180L-6-18.5KW |
| YB3-180M-2-22KW | YB3-180L-4-22KW | YB3-200L2-6-22KW |
| YB3-200L1-2-30KW | YB3-200L-4-30KW | YB3-225M-6-30KW |
| YB3-200L2-37KW | YB3-225S-4-37KW | YB3-250M-6-37KW |
| YB3-225M-2-45KW | YB3-225-4-45KW | YB3-280S-6-45KW |
| YB3-250M-2-55KW | YB3-250M-4-55KW | YB3-280M-6-55KW |
| YB3-280S-2-75KW | YB3-280S-4-75KW | YB3-315S-6-75KW |
| YB3-280M-2-90KW | YB3-280M-4-90KW | YB3-315M-6-90KW |
| YB3-315S-2-110KW | YB3-315S-4-110KW | YB3-315L1-6-110KW |
| YB3-315M-2-132KW | YB3-315M-4-132KW | YB3-315L2-6-132KW |
| YB3-315L1-2-160KW | YB3-315L1-4-160KW | YB3-355M1-6-160KW |
| YB3-315L2-2-200KW | YB3-315L2-4-200KW | YB3-355M2-6-200KW |
| YB3-355M-2-250KW | YB3-355M-4-250KW | YB3-355L-6-250KW |
| YB3-355L-2-315KW | YB3-355L-4-315KW | |
