MU709s Mini PCIe is a variant of MU709 with standard Mini PCIe form factor. It is high-quality designed HSPA+ module which specially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs.
MU709s Mini PCIe supports 21.6Mbps downlink data rate, providing data and voice service under global GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+ networks. The module also include enhanced features like embedded TCP/IP stack(IP,TCP,UDP,SSL, HTTP,FTP,SMTP), FOTA, Jamming Detection, Netscan, CMUX, SSL, eCall, Huawei enhanced AT commands, cell lock, network monitoring, DTMF decoder, baud rate adaptation, multi PDP, SIM swap, .etc.
There are two variants which meet different market requirements:
MU709s-2 Mini PCIe(UMTS/HSPA+ 900/2100MHz), for European, China market.
MU709s-6 Mini PCIe(UMTS/HSPA+ 850/1900/2100 MHz), for Asia pacific, Latin America market.
All Huawei modules comply with the RoHS directive and Regional certification.

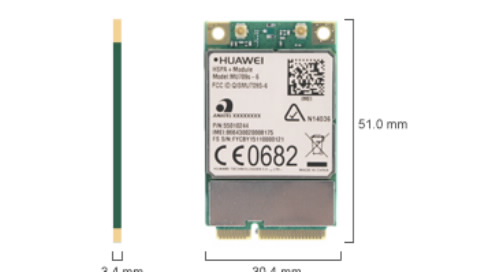

| Size | Height 30.4mm Width 51mm Depth 3.4mm Weight approx.12g  |
| Form Factor | Mini-PCIe |
| Bands | HSPA+/UMTS tri-band 850/1900/2100 MHz GSM/GPRS quad-band 850/900/1800/1900 MHz |
| Data Transfer Rate | Downlink:21.6 Mbps, Uplink: 5.76 Mbps |
| Interface | 2 Antenna connectors PCIe interface USB 2.0 High speed PCM Voice SIM Interface (1.8V/3.0V) Power supply Reset |
| Power Supply | 3.0 V to 3.6 V (typical: 3.3 V) |
| Voice | PCM Voice |
| Temp Range | -40℃ to 85℃ |
| Special Features | FOTA Firmware update via USB STK Jamming Detection Netscan CMUX SSL eCall |
| Operating System | Linux, Android |
| CE GCF PTCRB FCC A-Tick ANATEL RoHS WEEE |
