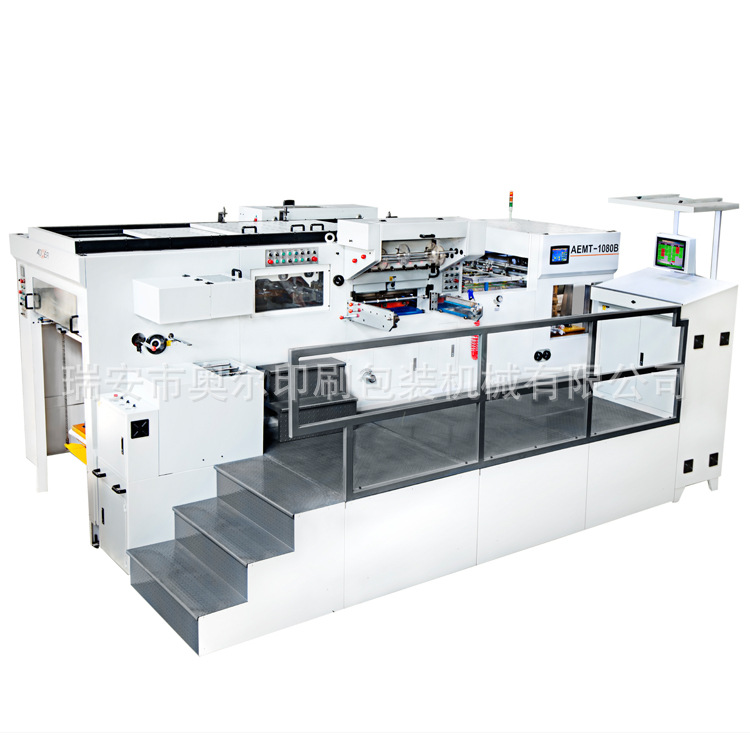

AEMT-1080主要技术参数

最大纸张尺寸：                                              1080 x 780 mm

最小纸张尺寸：                                                400 x 330 mm

最大模切尺寸：                                               1075 x 770 mm

最大烫印尺寸：                                               1060 x 760 mm

最小叼牙尺寸:                                                       7 mm

模切工作精度：                                              ≤±0.125 mm

烫印工作精度：                                               ≤±0.125 mm

最大模切压力:                                                      300 T

最高模切速度:                                                   7000 S/H

最高烫印速度:                                                   6500 S/H

箔卷最大直径:                                                   Φ250 mm

纵向箔卷宽度:                                                 15~1060 mm

横向箔卷宽度:                                                  15~760 mm

纵向 放 箔轴:                                                      3 pce

横向 放 箔轴:                                                      2 pce

加热温区数量:                                                     12 pce

可调温度范围:                                                 50~199  ℃

输纸码堆高度:                                                    1550 mm

收纸码堆高度:                                                    1500 mm

纸张适应范围:

             白板纸:                                          0.12～2 mm

             瓦楞纸:                                              ＜4 mm

主电 机 功率：                                                     11 KW

加热温区功率：                                                     24 KW

总   功   率：                                                     60 KW

机器外形尺寸：(LxWxH）                   5950(+1600)x2550(+1400)x2600 mm

整 机  重 量:                                                       17 T
