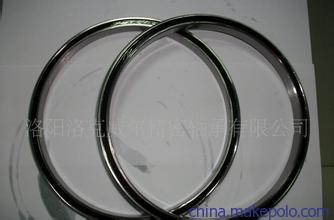

71830 ACD/P4
Dimensions
|
| d | | 150 | mm |
| D | | 190 | mm |
| B | | 20 | mm |
| d1 | | 163.35 | mm |
| d2 | | 163.35 | mm |
| D1 | | 176.7 | mm |
| r1,2 | min. | 1.1 | mm |
| r3,4 | min. | 0.6 | mm |
| a | | 49.7 | mm |
Abutment dimensions
|
|
| da | min. | 156 | mm |
| db | min. | 156 | mm |
| Da | max. | 184 | mm |
| Db | max. | 186.8 | mm |
| ra | max. | 1 | mm |
| rb | max. | 0.6 | mm |
| dn | | 165.6 | mm |
Calculation data
Calculation factors for eqivalent bearing loads
| Basic dynamic load rating | C | | 48.8 | kN |
| Basic static load rating | C0 | | 68 | kN |
| Fatigue load limit | Pu | | 2.2 | kN |
| Attainable speed for grease lubrication | | | 5300 | r/min |
| Attainable speed for oil-air lubrication | | | 8500 | mm/min |
| Ball diameter | Dw | | 11.112 | mm |
| Number of balls | z | | 35 | |
| Reference grease quantity | Gref | | 13 | cm³ |
| Calculation factor | e | | 0.68 | |
| Calculation factor (single, tandem) | Y2 | | 0.87 | |
| Calculation factor (single, tandem) | Y0 | | 0.38 | |
| Calculation factor (single, tandem) | X2 | | 0.41 | |
| Calculation factor (back-to-back, face-to-face) | Y1 | | 0.92 | |
| Calculation factor (back-to-back, face-to-face) | Y2 | | 1.41 | |
| Calculation factor (back-to-back, face-to-face) | Y0 | | 0.76 | |
| Calculation factor (back-to-back, face-to-face) | X2 | | 0.67 | |
| Preload (back-to-back, face-to-face) |
| Preload class A | GA | | 430 | N |
| Preload class B | GB | | 1300 | N |
| Preload class C | GC | | 2590 | N |
| Calculation factor | f | | 1.37 | |
| Calculation factor | f1 | | 0.97 | |
| Calculation factor | f2A | | 1 | |
| Calculation factor | f2B | | 1.08 | |
| Calculation factor | f2C | | 1.15 | |
| Calculation factor | fHC | | 1 | |
| Static axial stiffness |
| Preload class A | | | 323 | N/µm |
| Preload class B | | | 512 | N/µm |
| Preload class C | | | 702 | N/µm |
Mass
| Mass bearing | | | 1.1 | kg
|
