产品编号：DMS-2072
名称：双钢板楼梯

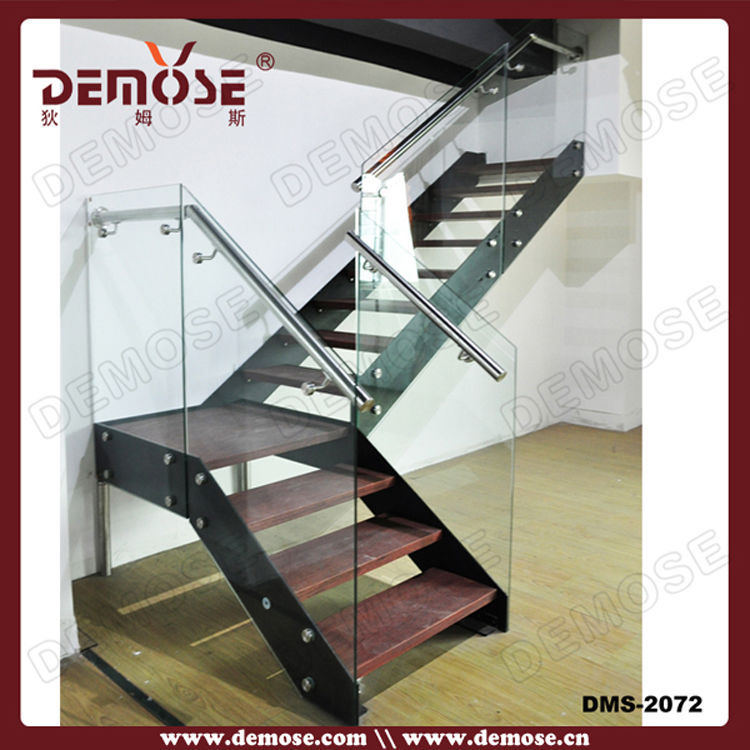

Product effect pictures
产品效果图

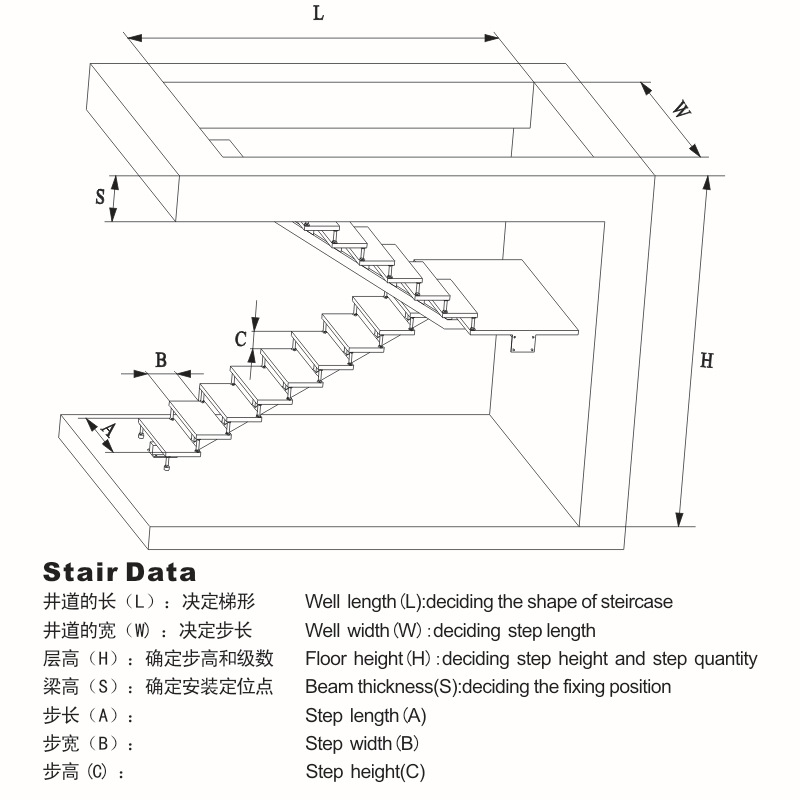

Stair Data:
楼梯数据
Data 数据 | specification 规格 | Data 数据 | specification 规格 |
floor height 层高 | 3000-4500MM
| beam thickness 粱厚 | 250-550MM
|
step length 步长 | 1000-1200MM | step width 步宽 | 250-350MM
|
step height 步高 | 150-200MM
|
|
|
Product components:
产品配置：
component 配置 | Specification 规格 | Material 材质 | Surface 表面处理 |
Stringer 龙骨 | 8MM thick steel plate 8MM 厚钢板 | A3 steel;SS304/316 圆管;A3钢;不锈钢 | Powder coated; Satin finish/mirror finish 烤漆/砂光/镜光 |
| |||
tread supporting tube 踏板支撑管 | 38x38x1.5MM square tube 38*38*1.5MM 方管 | A3 steel;SS304/316 圆管;A3钢;不锈钢 | Powder coated; Satin finish/mirror finish 烤漆/砂光/镜光 |
Tread 踏板 | 12+1.52pvb+12mm | Laminated glass 夹胶钢化 | frosted glass 磨砂 |
Baluster 立柱 | 6MM double steel plate 6MM 双钢板 | A3 steel;SS304/316 圆管;A3钢;不锈钢 | Powder coated; Satin finish/mirror finish 烤漆/砂光/镜光 |
Handrail 扶手 | Dia 50MM 直径50MM实木 | European Beech/Oak/Manchurian Ash 欧榉/橡木/水曲柳 | Wood naturalcolor/ Varnished 原木色/喷漆 |
Glass 玻璃 | T:12mm
| tempered 钢化 | clear 透明 |
Solid wood material optional:
实木材质可选：
Pictures of wood samples are for reference only ; The samples were chosen from different parts of
the wood in different period, so the wood grain and color is different.
材质图片仅供参考;不同时期选取的木材及选择的部位不同，木板的纹路和色泽不一样。
Solid wood color sample optional:
实木色样可选：
Pictures of color samples are for reference only(there would be a little bit difference as chromatic aberration and lighting), if there is any
differencebetween pictures and actual products, actual products should be followed.
由于照相机成像色差及光照会存在一定的差异，样板图片仅供参考。
and glass material optional:
玻璃材质可选
Stair shape optional:
楼梯梯形可选：

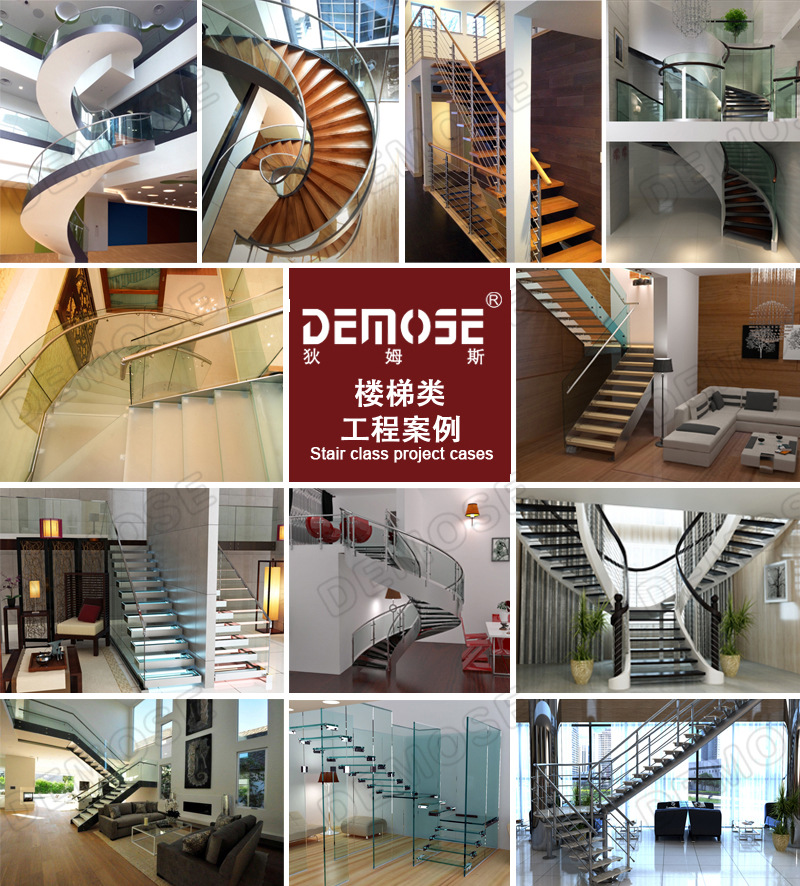

Stair project cases：
楼梯工程案例
