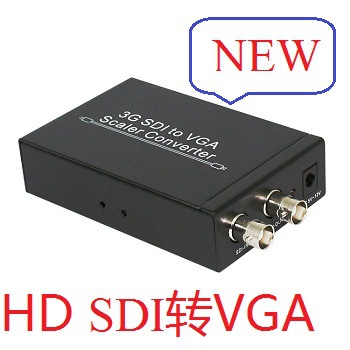

一、高清HD SDI转VGA/3G SDI TO VGA 产品介绍
3G SDI转VGA转换器使SD-SDI, HD-SDI 和 3G-SDI信号显示在VGA显示器上，同时确保在2.970Gbit/s的高比特率下，让你获得快速的信号传输而没有任何损失。对于专业人士来说，意味着
当你在VGA显示器上展示你的作品的时候，你可以更加容易分配和扩充你的3G SDI信号，这都是建立在此款转换器之上。而且，正是由于环通3G-SDI的设计，使用者能够同时享受SDI和
VGA带来的快感。
二、高清HD SDI转VGA/3G SDI TO VGA 产品特点
1、可以在2.970Gbit/s, 2.970/1.001Gbit/s,
1.485Gbit/s, 1.485/1.001Gbit/s和 270Mbits/s的情况下进行运作。
2、支持SMPTE (A级和B级)425M, SMPTE 424M, SMPTE 292M, SMPTE
259M-C。
3、能够从SMPTE 425M B级转为A级的1080P
50/59.94/604:2:2 10bit。
4、能够长距离与其他的转换器进行连接来延伸信号。
5、在SDI和VGA信号下能够自动显示。
三、高清HD SDI转VGA/3G SDI TO VGA 产品特点
1．输入端 1 x BNC
(SDI/HD-SDI/3G-SDI)
2．输出端 1 x BNC
(SDI/HD-SDI/3G-SDI), 1 x 耳机接口
3．SDI传输率
2.970 Gbit/s和2.970/1.001 Gbit/s
4．SMPTE标准 425M的A级和B级，也可以是424M, 292M,
259M-C
5．高清HD SDI转VGA/3G SDI TO
VGA SDI输入/输出分辨率 480i, 576i, 720p@50/59.94,60
1080i@50/59.94/60
1080p@50/59.94/60
6．VGA输出分辨率 800x600@60Hz, 1024x768@60Hz
1280x1024@60Hz,1680x1050@60Hz
1920x1080@60Hz,1920x1200@60Hz
I. Introduction
The SDI to VGA scaler converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on VGA displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on VGA displays thanks to the built in this converter. Furthermore, thanks to the loop-through 3G-SDI design, users are able to enjoy both SDI and VGA at the same time.
II. Features
1. Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s
2. Equalized and re-clocked loop output
3. Auto video mode detection (3G/HD/SD)
4. Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
5. Connect with other units to extend your signal over long distances
6. Simultaneous display with SDI /VGA signals
7. Alternative audio output to analog 2CH
8. Supports signal transmission distances of up to 300M for SD signals, 200M for HD signals and 100M for 3G signals
9. Note:Cable tested with Belden 1694A. Operating distances may vary if used with another type of cable.
III. Package
1. 3GSDI to VGA Scaler Converter----------------------------------1PCS
2. 5V DC Power Supply Adapter--------------------------------------1PCS
3. Operation Manual----------------------------------------------------1PCS
IV. Specifications
SMPTE Standard 425MLevel A & B, 424M, 292M, 259M-C
SDI Transmission Rates 2.970 Gbit/s and 2.970/1.001 Gbit/s
SDI in/out Resolution SD: 480i@60, 576i@50HD:720p@50/60, 1080i@50/60 3G:1080p@24/25/29.97/30/50/59.94/60
VGA Output Resolution 800x600@60Hz, 1024x768@60Hz,
1280x720@60Hz,1440x900@60Hz
1280x1024@60Hz,1680x1050@60Hz,
1600x1200@60Hz,1920x1080@60Hz，
1920x1200@60Hz
