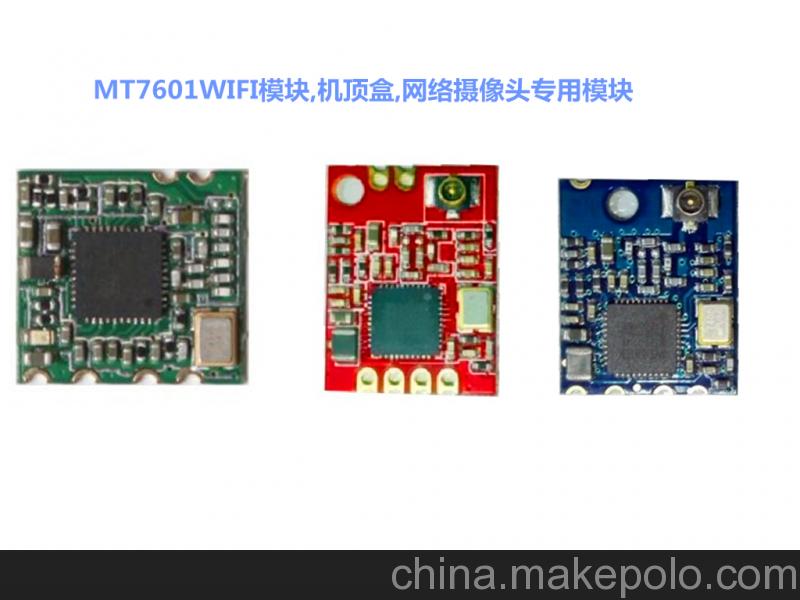

MT7601wifi模块 MT7601无线模块网络摄像头机WIFI模块
我公司专为网络摄像头 ott盒子 平板等视频传输WIFI模块 低功耗小尺寸低成本模块
大客户负责人 柳经理 电话 13560725446 QQ 478053711
MTK7601方案WIFI模块
MTK7601 方案 WIFI模组的用途和特点：
产品特点：
USB 总线接口
符合IEEE 802.11b/g/n/标准
支持WEP/WPA/WPA2 数据加密
产品描述：
符合IEEE 802.11n、 IEEE 802.11g、IEEE 802.11b 标准USB 接口
提供两种工作模式：集中控制式(Infrastructure)和对等式(Ad-Hoc)
支持64/128/152 位WEP 数据加密
支持 WPA/WPA-PSK、WPA2/WPA2-PSK 等高级加密与安全性认证机制
支持无线漫游(Roaming)技术，保证高效的无线连接
传输距离，室内最远50 米；室外最远150 米(环境因素对距离有影响)
支持Windows 2000/XP/Vista/WIN 7/WIN CE/LINUX/MAC OS Android 操作系统
详细规格：
支持的标准和协议：IEEE 802.11n、 IEEE 802.11g、IEEE 802.11b、CSMA/CA with ACK
总线类型：USB 接口 2.0&1.1
频率范围：2.4～2.4835GHz
工作信道：1-13
调制方式：802.11 g/nOFDM ；802.11b: CCK(11, 5.5Mbps) ；QPSK(2Mbps) ；BPSK(1Mbps)
传输速率：802.11b: 11,5.5,2,1 Mbps ；802.11g: 54,48,36,24,18,12,9,6 传输速率 Mbps ；802011n: up to 150Mbps
接收灵敏度：130M：-70dBm@10% PER ；108M：-70dBm@10% PER ；54M：-70dBm@10% PER ；
11M：-87dBm@8% PER ；6M：-90dBm@10% PER ；1M：-92dBm@8% PER
传输距离：室内最远50 米，室外最远150 米（因环境而异）与外接天线有关
RF功率：15dBm（MAX Tx）
RF天线：外接天线(2.4GHz,50 欧姆特性阻抗)
扩频技术：DSSS（直接序列展频）
工作电压：3.3V
模块尺寸：13.0*12.2*0.7mm
使用环境：工作温度：-20℃到60℃
存储温度：-40℃到45℃
工作湿度：10%到90%RH 不凝结
存储湿度：5%到90%RH 不凝结
支持操作系统：Android / Win CE /iOS /Linux/Windows 2000/XP/Vista/Win7
芯片方案：MT7601U
典型应用：
无线上网本,MID,网络摄像机,机顶盒GPS,硬盘播放器,PSP等需要实现无线联网设备
USB150m无线模块高性能低功耗，MTK7601无线模块
Item | Description |
The supported protocol and standard | IEEE 802.11n, IEEE 802.11g,EE 802.11b |
Interface type | USB2.0 |
The range of frequency | 2.4-2.484GHZ |
The amount of working Channel | 1-11（America, Canada）;1-13（China, Europe）;1-14（Japan） |
Data Modulation | OFDM/DBPSK/DQPSK/CCK |
Working Mode | Infrastructure, Ad-Hoc |
The transmitting rate | 135/54/48/36/24/18/12/9/6 /1M（self-adapting） |
Spread spectrum | DSSS |
Sensitivity @PER | 54/135M:-75dBm@10%PER, 11M:-85dBm@8%PER 6M:-88dBm@10%PER, 1M:-90dBm@8%PER |
RF Power | 135M:15dBM, 54M:15dBM, 11M:19dBM |
Throughput | 90Mbps(external 2dbi antenna ,damping 40dbm in Shielding box ) |
The connect type of Antenna | Connect to the external antenna through the half hole |
LED indicator | status indicator |
The transmit distance | Indoor 100M, Outdoor 300M, according the local environment |
Working Power consumption | 455MW |
MENS(L*W*H) | 12.3MM*13MM*1.6MM |
The chipset model | MT7601 |
fully complies with IEEE802.11n and IEEE802.11b/g stands, offering feature-rich wireless connectivity at high standards, and delivering reliable, cost-effective throughput from an extended distance.
Optimized RF architecture and baseband algorithms provide superb performance and lower power consumption. Intelligent MAC design deploys a high efficient DMA engine and hardware data processing accelerators which offloads the host processor.
W14 is designed to support standard based features in the areas of security quality of service and international regulations, giving end users the greatest performance anytime and in any circumstance.
2. The range of applying
Desk-Top Pc ;Note-book ;TV; Blue-ray Disk；Tablet Pc; Set-top box
3. Features
Feature | Implementation |
Power supply | VCC_3.3V +-0.2V |
Clock source | 40MHz |
Temperature range | Work temperature: -20ºC---70°C Storage temperature -55°C ~ +125°C |
Package | SMT 6 pins |
■IEEE 802.11b/g/n client ■Embedded high-performance 32-bit RISC microprocessor ■Highly integrated RF with 55nm COMS technology ■1T1R mode with support of 150Mbps PHY rate ■Integrate high efficiency switching regulator ■Best-in-class power consumption performance ■1/2/3/4-wire PTA Wi-Fi/Bluetooth coexistence support ■IEEE 802.11d/h/k compliant ■Security support for WFA WPA/WPA2 personal, WPS2.0 ,WAPI ■Support 802.11w protected managed frames ■QOS support of WFA,WMM,WMM PS ■Support Wi-Fi Direct ■Fully compliance with USB v2.0 High-Speed mode ■Per packet transmit power control ■Antenna persity ■Auto-calibration | |
4. Electrical Characteristics
