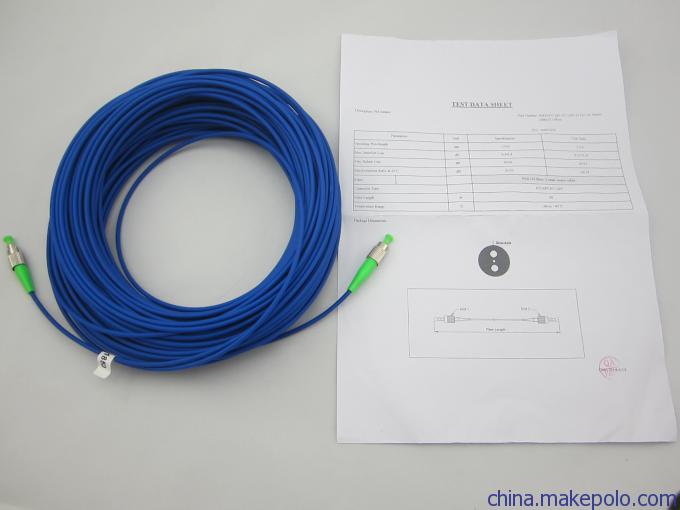

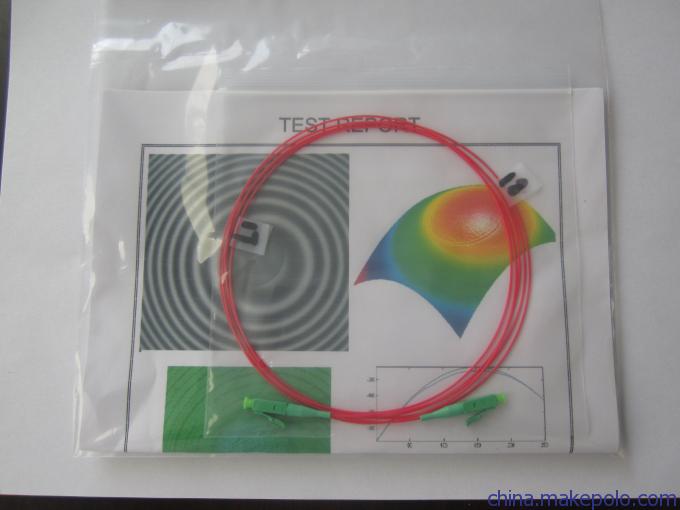

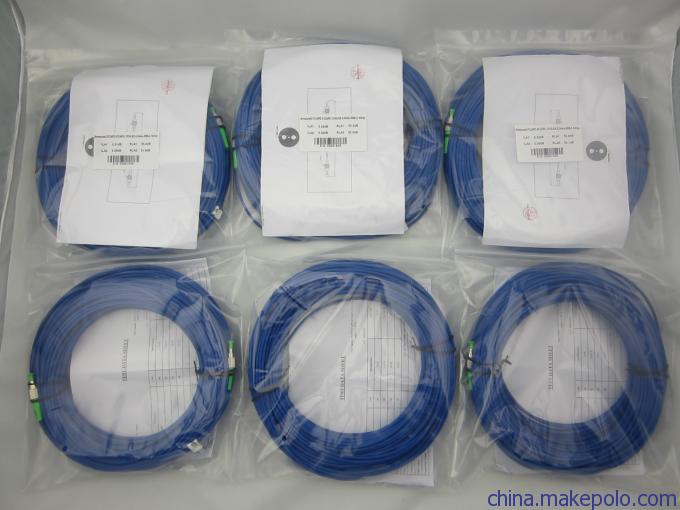

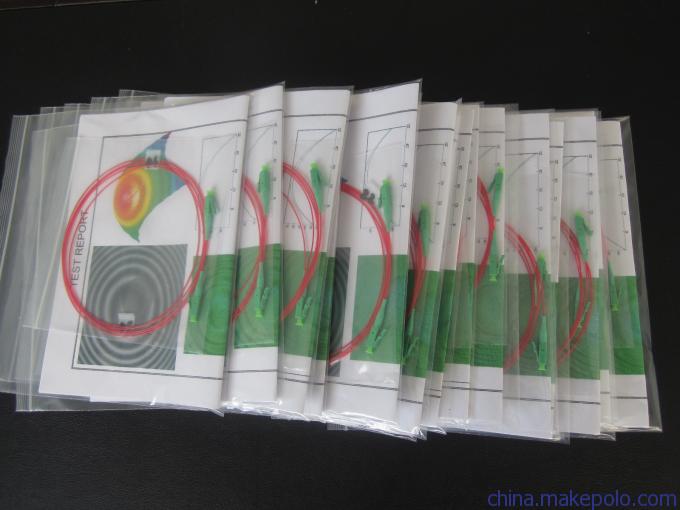

Polarization maintaining (PM) patch cord / jumper leads are built with polarization maintaining panda fiber and connectorise using FC/UPC, FC/APC, SC/UPC, SC/APC and LC connectors. FC connectors can be supplied with wide key (2.14mm, N type) or narrow key (2.02mm, R key) width. Patchcords can be supplied in 250um bare fiber, 900um buffered fiber or 3mm cable. PMP features low insertion loss, high extinction ratio and high return loss. The slow or fast axis can be aligned to the connector key.
Ordering Examples | |
Part Number | Description |
PMP-15-R-C-0.5-22 | Polarization maintaining patchcord, 1550nm, 2.02mm connector key (R key), 3mm |
PMP-15-R-C-1-11 | PM patch cord, 1550nm, 2.02mm connector key (R key), 3mm jacket, 1m fiber length, |
PMP-15-R-L-2-22 | Polarization maintaining patchcord, 1550nm, 2.02mm connector key (R key), 900micron |
PMP-64-R-C-2-20 | PM patchcord, 1064nm, 2.02mm key width (R type), 3mm cable, 2m fiber length, 980nm |
PMP-13-R-C-1-12 | Polarization maintaining patch cord,1310nm, 2.02mm narrow key connector (R type), |
PMP-13-R-L-1-22 | Polarization maintaining patchcord, 1310nm, 2.02mm narrow key connector (R type), |
PMP-15-B-1-22 | Polarization maintaining patchcord, 1550nm, 250um bare fiber, PM panda fiber, 1m fiber |
PMP-15-R-C-0.5-12 | PM patchcord, 1550nm, 2.02mm narrow key connector (R type), 3mm cable, 0.5m |
PMP-15-R-C-1-22 | PM patchcord, 1550nm, 2.02mm narrow key connector (R type), 3mm cable, 1m length, |
PMP-15-R-C-2-11 | PM patchcord, 1550nm, 2.02mm narrow key connector (R type), 3mm jacket |
PMP-15-R-C-3-12 | PM patchcord, 1550nm, 2.02mm narrow key connector (R type), 3mm cable jacket, |
PMP-15-R-C-7-22 | Polarization maintaining patchcord, 1550nm, 2.02mm narrow key connector (R type), |
PMP-15-R-L-3-12 | PM patch cord,1550nm , 2.02mm narrow key connector (R type), 900micron jacket, 1m |
PMP-64-R-3-2-P-20 | Polarization maintaining patch cord, 1064nm, 2.02mm narrow key connector (R type), |
PMP-64-R-L-0.5-22 | PM patch cord, 1064nm, 2.02mm narrow key connector (R type), 900micron jacket, 1m |
PMP-98-R-C-3-11 | Polarization maintaining patchcord, 980nm, 2.02mm narrow key connector (R type), |
PMP-98-R-C-5-20 | PM patchcord, 980nm, 2.02mm narrow key connector (R type), 3mm cable jacket |
PMP-98-R-L-10-22 | Polarization maintaining patch cord, 980nm, 2.02mm narrow key connector (R type), |
