供应河北970nmSLD蝶形封装激光器，10mW
970nmSLD蝶形封装激光器，10mW
产品特点：
1、高功率，宽辐射范围，钟形曲线，较低的脉冲光谱

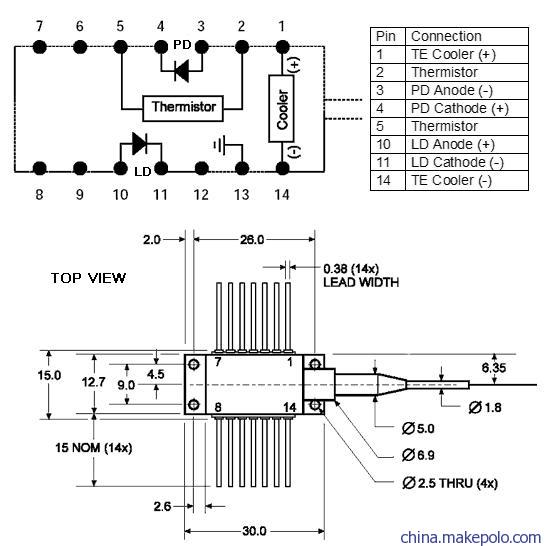

2、蝶形封装内置半导体制冷器，电热调节器和激光二极管检测
3、连续光或者脉冲光工作，转换时间为10ns
4、单模光纤输出，可选择保偏光纤或者多模光纤输出，FC/APC光纤连接头
5、应用于相干断层扫描，光纤传感，光学测量等
产品说明：
Parameter | Symbol | Min | Typ | Max | Unit |
Optical power from pigtail | Pf | | | 10 | mW |
Wavelength | lc | 945 | 960 | 970 | nm |
Residual spectral modulation depth(ripples) | | | 2.5 | 5 | % |
Spectral linewidth (FWHM) | Dl | | 35 | | nm |
Forward current | If | | 130 | 200 | mA |
Forward voltage | Vf | | | 2.8 | V |
Secondary coherence subpeaks | - | | -25 | | dB |
Spectral Flatness | VrPD | | | 2 | dB |
Slow/fast polarization ratio (in PM modules) | | | 7 | | dB |
TEC current | ITEC | | | 1.5 | A |
TEC voltage | VTEC | | | 3.5 | V |
Storage temperature | Tstg | -55 | | 85 | oC |
Operating case temperature | Tc | 0 | | 65 | oC |
