日本MIKIPULLEY/德国CENTA橡胶树脂联轴器

CENTA FLEX A型号由富有弹性的橡胶传动。能出色地吸收振动和冲击，减少机械装置的噪音。弹性体的橡胶部分由多角形橡胶及填入其顶点的铝构成，各被坚固地硫化粘结在一起。将此橡胶体分别与圆筒衬套和法兰盘衬套用螺栓沿径向和轴向连接，通过橡胶体进行传动。特别是径向的螺栓连接，因是将预先变形的橡胶体与圆筒衬套连接，所以为预压缩结构，具有出色的柔性，可进行出色地吸收振动和冲击的传动。橡胶体有用螺栓固定安装在轴向上的O0 (Ｏ零) 型和不固定，利用插入安装用的S螺栓进行传动的S0 (Ｓ零) 型两种，可根据装卸要求选购。

传动扭矩 10N.m～5000N.m
额定扭矩时的扭转量 3°～6°
可工作温度 -30oC～+95oC

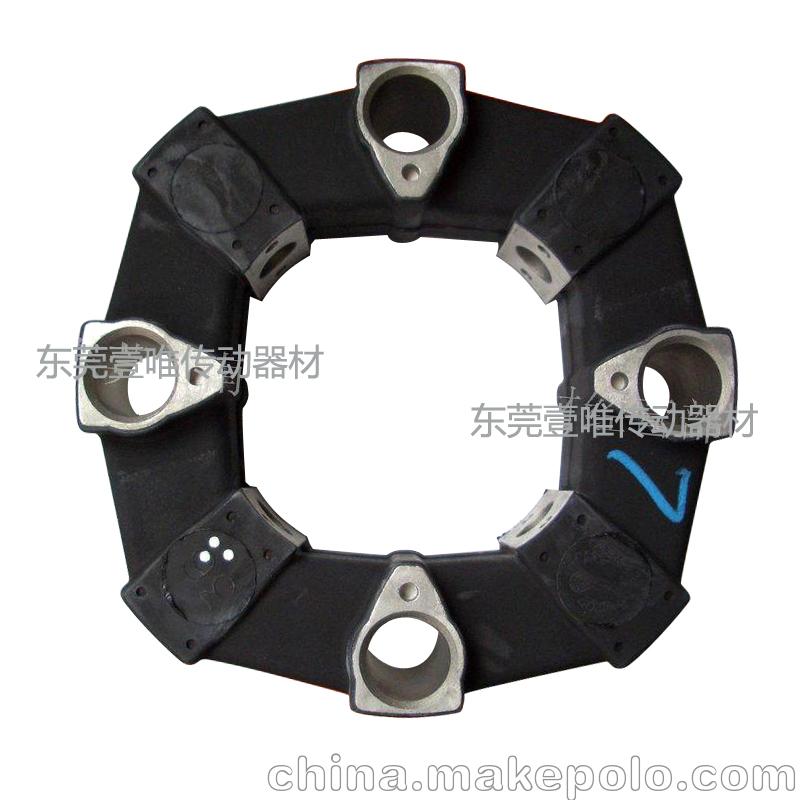

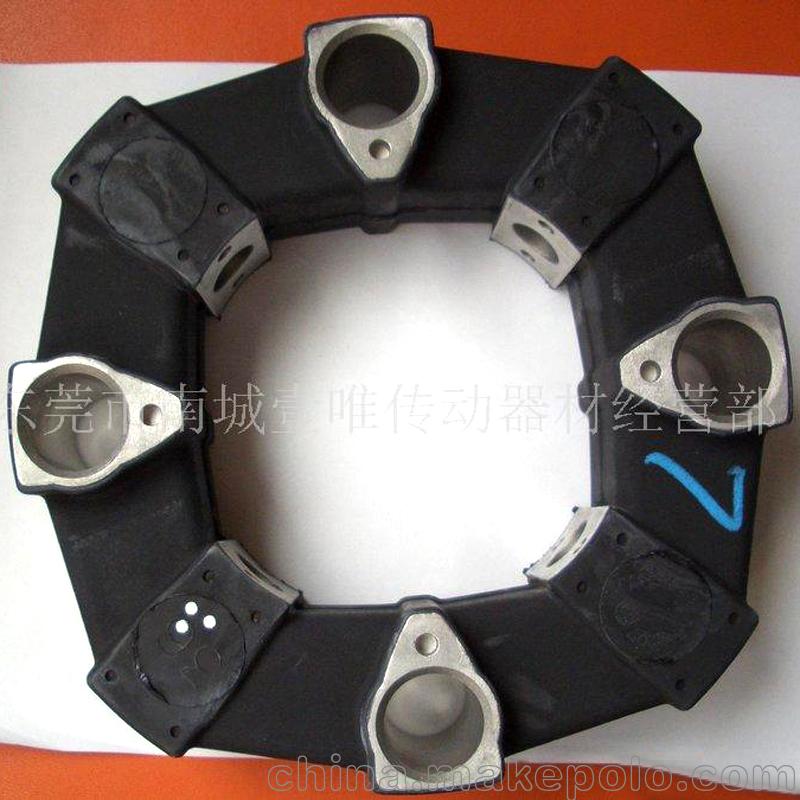

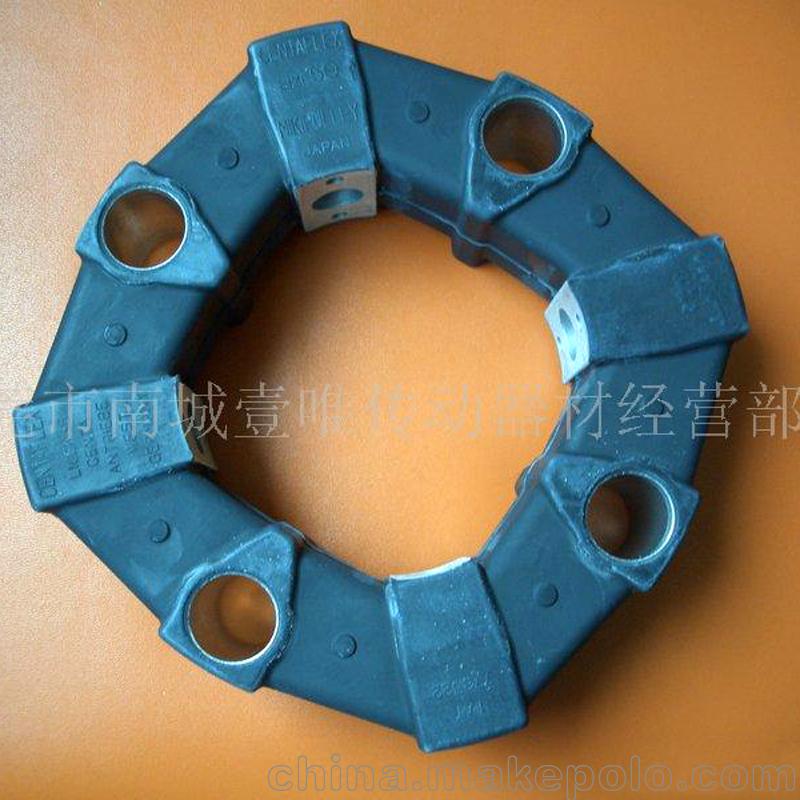

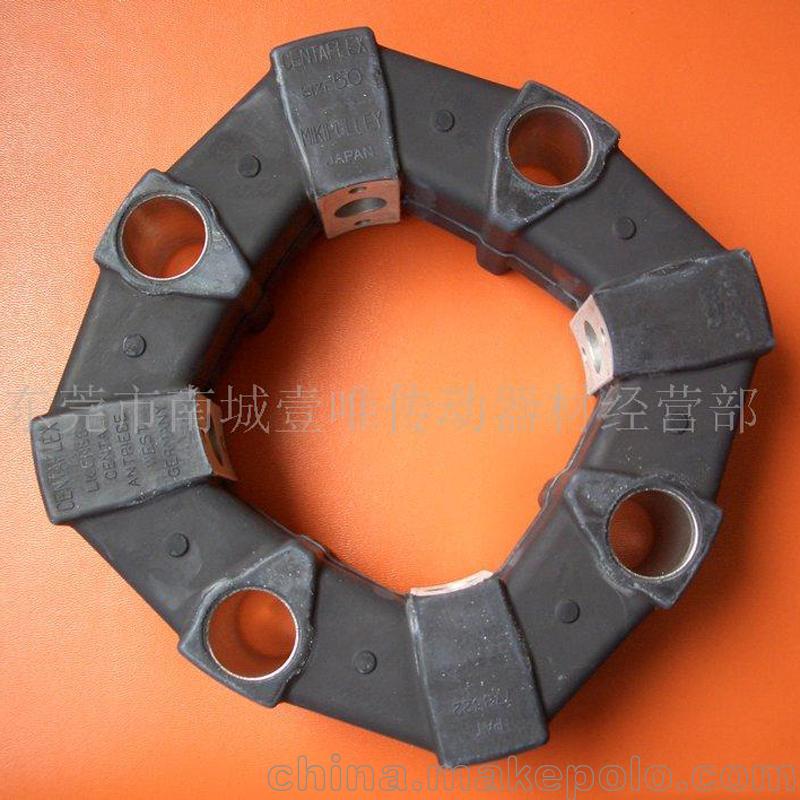

CF-A-（）-SO实拍图

CF-A型号如下，价格优惠，欢迎询价洽谈：

 CF-A-050-O0-1360 CF-A-090-O0-1360 CF-A-250-O0-1360
 CF-A-050-OP-1360 CF-A-090-OP-1360 CF-A-250-OP-1360
 CF-A-050-OB-1360 CF-A-090-OB-1360 CF-A-250-OB-1360
 CF-A-050-OC-1360 CF-A-090-OC-1360 CF-A-250-OC-1360
 CF-A-050-O1-1360 CF-A-090-O1-1360 CF-A-250-O1-1360
 CF-A-050-O2-1360 CF-A-090-O2-1360 CF-A-250-O2-1360
 CF-A-050-S0-1360 CF-A-090-S0-1360 CF-A-250-SO-1360
 CF-A-050-SP-1360 CF-A-090-SP-1360 CF-A-250-SP-1360
 CF-A-050-SB-1360 CF-A-090-SB-1360 CF-A-250-SB-1360
 CF-A-050-SC-1360 CF-A-090-SC-1360 CF-A-250-SC-1360
 CF-A-050-S1-1360 CF-A-090-S1-1360 CF-A-250-S1-1360
 CF-A-050-S2-1360 CF-A-090-S2-1360 CF-A-250-S2-1360
 CF-A-080-O0-1360 CF-A-140-O0-1360 CF-A-400-O0-1360
 CF-A-080-OP-1360 CF-A-140-OP-1360 CF-A-400-OP-1360
 CF-A-080-OB-1360 CF-A-140-OB-1360 CF-A-400-OB-1360
 CF-A-080-OC-1360 CF-A-140-OC-1360 CF-A-400-OC-1360
 CF-A-080-O1-1360 CF-A-140-O1-1360 CF-A-400-O1-1360
 CF-A-080-O2-1360 CF-A-140-O2-1360 CF-A-400-O2-1360
 CF-A-080-S0-1360 CF-A-140-S0-1360 CF-A-400-SO-1360
 CF-A-080-SP-1360 CF-A-140-SP-1360 CF-A-400-SB-1360
 CF-A-080-SB-1360 CF-A-140-SB-1360 CF-A-400-S1-1360
 CF-A-080-SC-1360 CF-A-140-SC-1360 CF-A-400-S2-1360
 CF-A-080-S1-1360 CF-A-140-S1-1360
 CF-A-080-S2-1360 CF-A-140-S2-1360
CF-A-200-O0-1360
CF-A-200-OP-1360
CF-A-200-OB-1360
CF-A-200-OC-1360
CF-A-200-O1-1360
CF-A-200-O2-1360
CF-A-200-S0-1360
CF-A-200-SP-1360
CF-A-200-SB-1360
CF-A-200-SC-1360
CF-A-200-S1-1360
CF-A-200-S2-1360

​
