VZ系列袖珍型 / 标准型 适合大强度作业,使用无变压器方式电动螺丝刀。
特点:
●为内置控制器的无变压器形式。
●可以直接插在交流插座上使用(220V或者110V)。
●壳体为轻便匀称的紧凑型,可以减轻劳动强度。
●标准型可适用HIOS H5刀头和对边距5mm的六角刀头两用头。(VZ-4504,VZ-4506除外)
●获得海外安全标准认证(U.S.A CCC)
好握速HIOS VZ系列电批电动螺丝刀的参数如下
VZ series pocket type / standard type is suitable for high-intensity operation, using electric screwdriver without transformer.
Characteristic:
● transformer free form with built-in controller.
● it can be directly inserted into the AC socket (220V or 110V).
● the shell is light and symmetrical compact, which can reduce labor intensity.
● the standard type can be applied to the dual-purpose head of hios H5 cutter head and the hexagon cutter head with the edge distance of 5mm. (except for vz-4504)
● obtain overseas safety standard certification (U.S.A CCC)
The parameters of a good grip speed hios VZ series electric screwdriver are as follows
电压 | 100V | 220V | 100/120V | 220V | 100V/120V | 220V | 100V/120V |

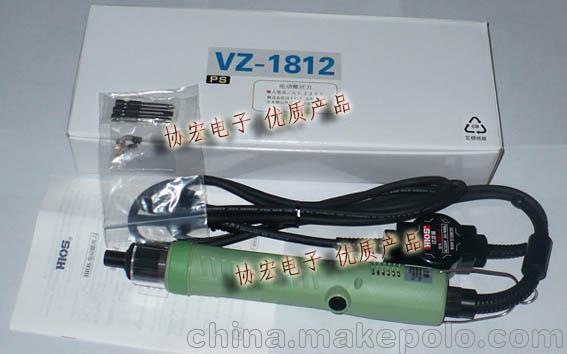

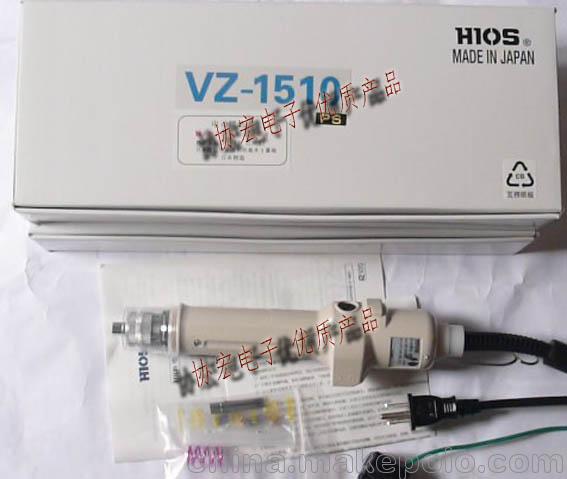

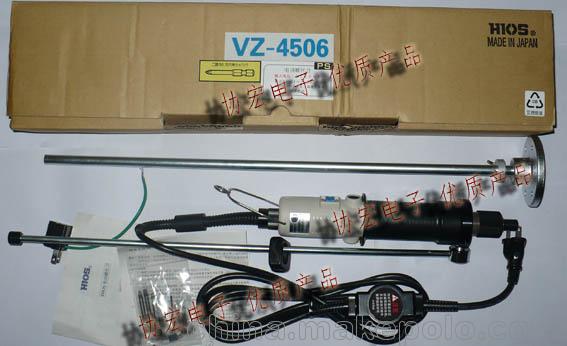

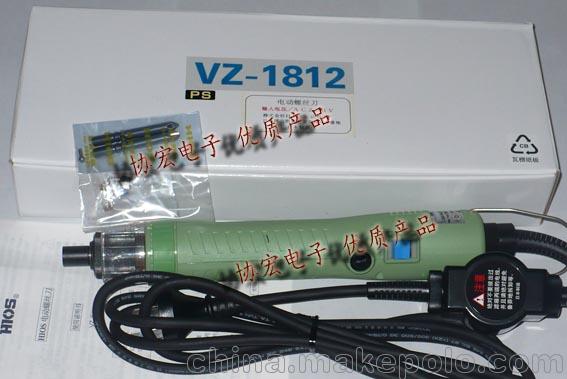

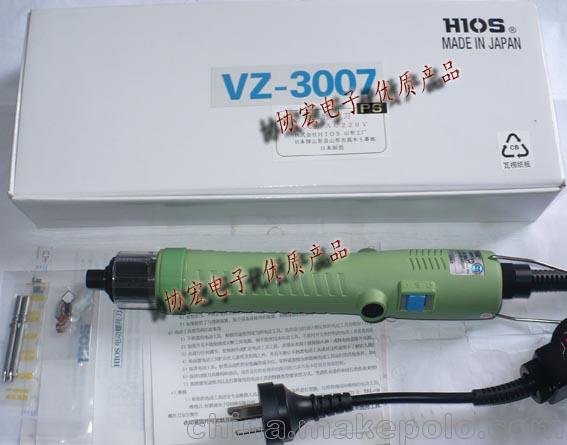

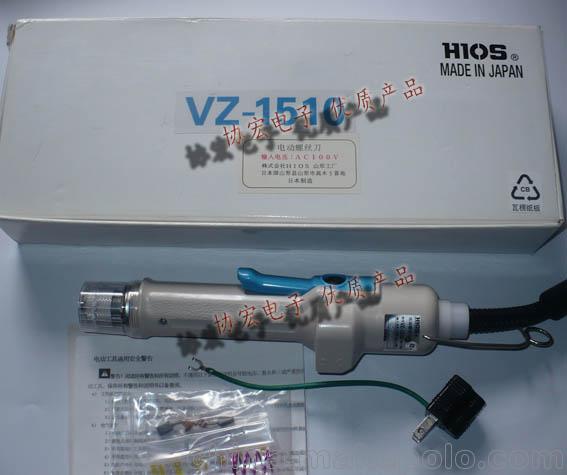

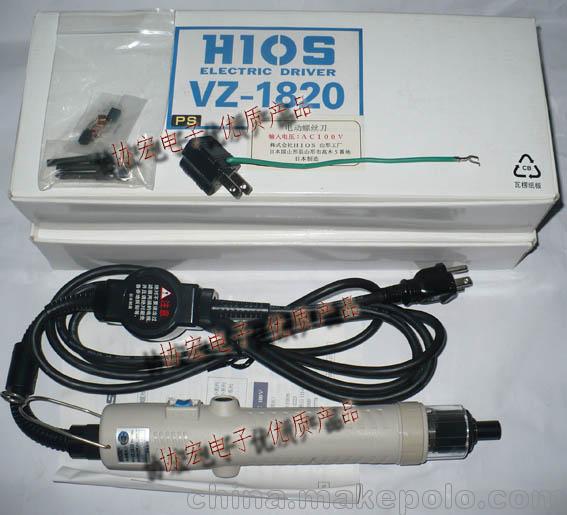

拉杆起动式型号 | VZ-1510 | VZ-1812 | VZ-1 820 | VZ-3007 | VZ-3012 | VZ-4504 | VZ-4506 |

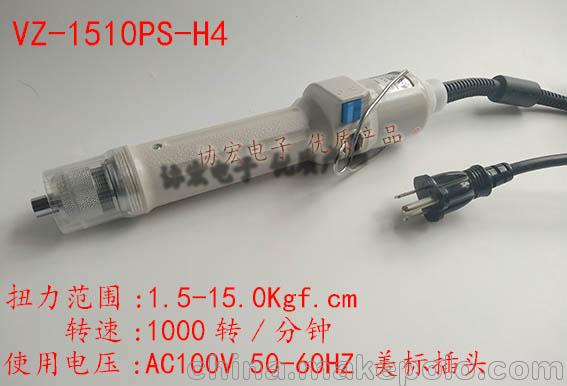

按压起动型号 | VZ-1510PS | VZ-1812PS | VZ-1820PS | VZ-3007PS | VZ-3012PS | VZ-4504PS | VZ4506PS |
扭力大小N.M | 0.15-1.5 | 0.4-1.8 | 0.4-1.8 | 0.9-3.0 | 0.9-3.0 | 1.0-4.5 | 1.0-4.5 |
扭力大小KGF.CM | 1.5-15 | 4-18 | 4-18 | 9-30 | 9-30 | 10-45 | 10-45 |
转速 | 1000 | 1200 | 2000 | 700 | 1200 | 400 | 600 |
适用螺丝 | 2.0-4.0 | 2.6-4.0 | 2.6-4.0 | 3.0-5.0 | 3.0-5.0 | 3.0-5.0 | 3.0-5.0 |
自攻螺丝 | 2.0-3.0 | 2.6-3.0 | 2.6-3.0 | 3.0-4.0 | 3.0-4.0 | 2.6-4.0 | 2.6-4.0 |
适用刀头 | H4 | H5/5HEX 1/4 HEX | H5/5HEX 1/4 HEX | H5/5HEX 1/4 HEX | H5/5HEX 1/4 HEX | 1/4HEX | 1/4HEX |
