H-13型激光切割机
H-13Laser Engraving Cutting Machine
本系列机型采用DSP数字控制技术，采用一体化设计的框架结构，工作稳定可靠，最新软件支持与AutoCAD、CorelDRAW等CAD、CAM及各类图形处理软件无缝对接，直接原图输出。业内首家采用USB数据接口，支持热插拔，数据传输瞬间完成，雕刻时不占用计算机资源，大大提高用户工作效率。中文液晶显示，人机界面友好，操作更方面。
This serial models adopted DSP digital control technology, integrated frame-structure to ensure the work stability .The latest software can supportAutoCAD、CorelDRAW、 CAD、CAM and other graphical software, and make it available to directly output pictures, The USB data interface can support heat play & plug. Quick data transit ting without taking up computer resource. Chinese edition liquid display can make it easy for user to operate.
技术指示 Technical Index
雕刻面积/Engraving area:900×1300mm
雕刻速度/Engraving speed:0-64000mm/min
无级调速/ step less speed regulating
激光功率/Laser power:80w
分 辨 率/Resolution ratio:0.025mm
最小成形文字/Minimum shaping character: 汉字/Chinese Character2mm字母/Letter1mm
重复定位精度/Resetting positioning accuracy:±0.01mm
电源/Power supply:Ac220v±10%,50HZ
总功率/Gross power:<1300w
工作温度/Operating temperture:0℃-45℃
工作湿度/Operating humidity:5%-95%
(无凝水/free of condensed water)
支持图文格式/Graphic format supported:
BMP、GIF、JPEG、PCX、TGA、TIFF、PIT、CDR、DWG、DXF.
整机重量/Net weight:260kg
外形尺寸/Dimension:1800×1400×1000mm

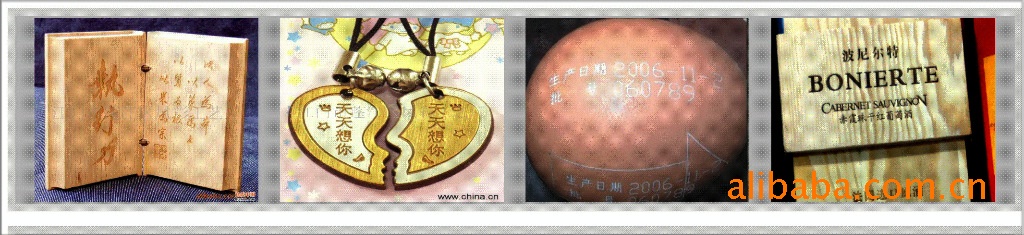

合适材料/Applicable Materials
木制品、纸张、皮革、布料、有机玻璃、环氧树脂、亚克力、毛料、塑料、橡胶、瓷砖、水晶、玉石、竹制品等非金属材料。
Wood、paper、leather、cloth、organic glass、resin、acrylic、wollens、plastic、rubber ceramic tile、crystal、bowlder、bamboo。
适合行业/Applicable industry
服装、刺绣、布置玩具、家饰布艺、手袋、手套、玩具行业中皮料、皮革裁切及表面雕花、工艺品、模型、广告、装饰、电器、塑胶行业的亚克力板、刀模、电子版面和音响面版、中密度装饰板等非金属薄板的精密切割
Cloth、embroide、fabric toy、furniture、 reticule 、glove、bag、leather、engraving cutting。model、advertising、decoration、electric、product、rubber、acrylic product、middle density、board etc nonmetal sheet precision cutting。
本类型激光雕刻切割机配置高精度步进电机作为驱动部件，以及X、Y轴三条台湾进口直线导轨，四块专业激光镜片，可以使机器速度和精度发挥到淋漓尽致；针对光路系统的工程设计，可以提高激光光束的使用效率，是专业雕刻和切割用户的理想选择。
This series of laser engraving cutting machine adopts high precision step-by-step motor as drive part, utilizes three original straight tine guide tracks in axis X and Y imported from Taiwan, uses four pieces of specialized laser lens and enables the machine speed and accuracy incisive
The engineering design to the path of rays system improves the regulating
Accuracy of the flight path of rays and the laser use efficiency this series of cutting machine is an ideal choice for professional user.
