GR-508 Shileding BOX
一、Applications :
1、VSWR : < 1.7, 400MHz ~ 3GHz (TC-5060A); < 1.7, 100MHz ~ 3GHz (GR-508)
2、Path Loss : 22dB Typical
3、 Effective Shielding : > 80dB up to 2GHz, > 70dB 2GHz ~ 3GHz
4、 Effective Cell Height : 220 mm
5、Field Strength at Test Point : 13 dBuV/m at 1 uV input
6、 Data Connector : DB25(p) outside, DB25(s) inside
7、 RF Connector : N(f) outside, SMA(f) outside and SMA(f) inside
8、 Dimension : 344(W) x 380(D) x 675(H) [mm]
9、 Door Size : 176(W) x 130(H) [mm]
10、 Weight : 19 Kg
11、 Accessories Supplied : N(m) to N(m) cable, 1m, 1pc.
?二、Applications:
1、 Receiver sensitivity testing, Transmitter radiated power testing
2、 EMI and EMS tests for small UHF devices
3、 Mobile Phones, W-LAN, PDA, Bluetooth, DAB/DMB

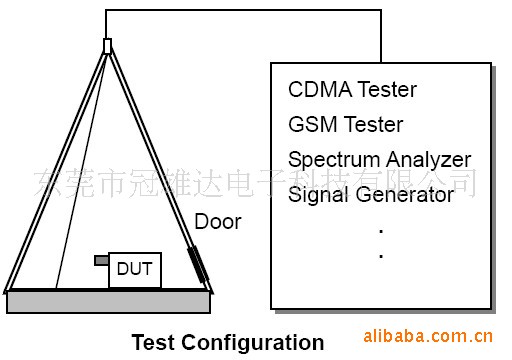

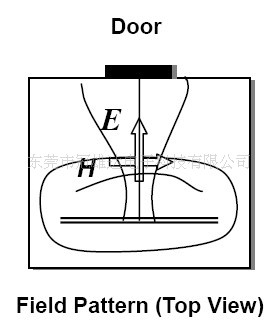

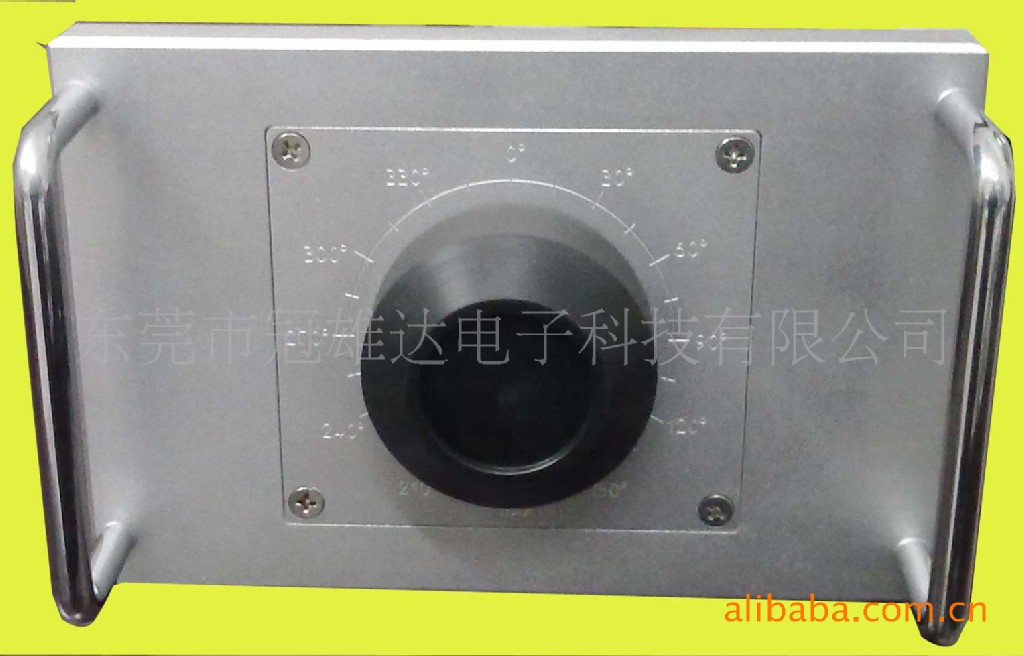

三、PICTURE:
