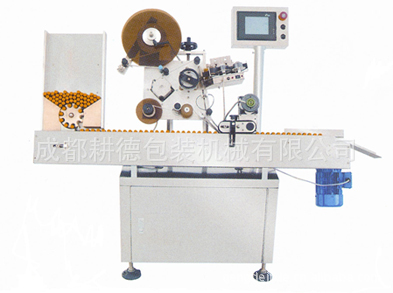

GDTW型卧式贴标机
GDTW Horizontal Labeling Machine
用途与简介:本机适用于直径小瓶身长的瓶子,整机结构紧凑,合理,是理想的贴标设备。
Brief Introduction:GDTW is specially designed to paste labels for small diameter and long body bottles ,.This machine with compact and reasonable construction is an ideal labelling device
特点: Characteristic:
专用于圆形瓶的贴标使用 Be suitable for round bottle.
使用螺杆分瓶机构,保证瓶子的间距准确 With screw separating system, guarantee the exact distance of bottle
使用水平方向送瓶,入料平稳, With level direction for conveying bottles stably, operate conveniently
在即将完成一批次瓶子贴标时, Being about to finish labeling a lot, machine机器可自动减速 can slow down automatically
主要技术参数: Main Technical Parameters:
适用规格:ф5-ф125mm Bottle Diameter Range:ф5-ф25mm
生产能力:250bot/min Productivity:250bot/min
贴标精度:≤±0.3mm Labeling Precision:≤±0.3mm
标签长度:10-150mm Length:10-150mm
标签宽度:10-80mm Width 10-80mm
电源:220V/50Hz Power Supply:220V/50Hz
功率:1.2kw Power:1.2kw
机器净重:250kg Weight:250kg
外形尺寸:2000×600×1600mm Dimension:2000×600×1600mm
