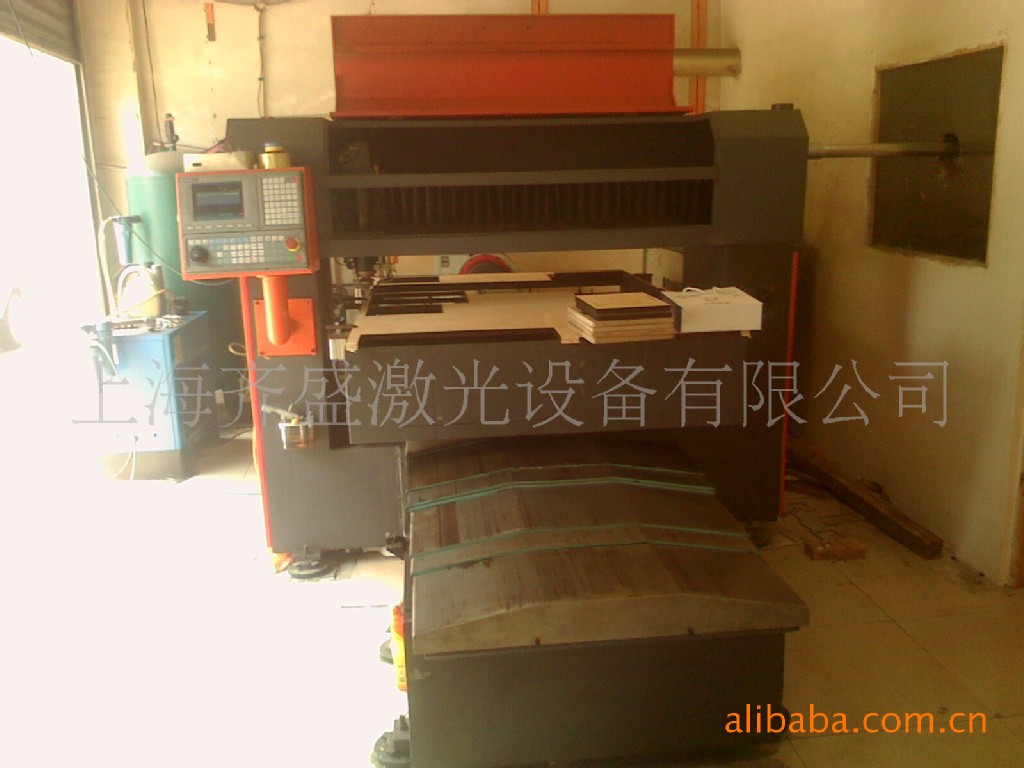

QS-2500轴流激光切割机
QS-2500 Fast Axis Laser Cutting Machine

      彩色LCD触摸显示操作屏

Color LCD touch-screen display

自动对焦跟踪切割头

Autofocusing following cutting head

相关参数/Product Parameters

2500瓦CO2轴流激光器

2500W CO2 fast axis laser device

单向滑动平台

Unidirectional sliding worktable

产品描述/Product Description

QS-1200轴流激光切割机是金强激光为刀模板及各种重型板材切割加工行业量身定做的。机器采用混合光路设计和单向滑动平台，减小了切割功率受光程远近的影响，增加了切割加工过程中的运动稳定性和可靠性。稳定的机身设计、灵活的执行机构、配套的激光切割专用软件，使加工手段游刃有余，其效率和质量远胜于传统的切割方法。

   QS-1200 fast axis laser cutting machine is tailored for die board/plywood and heavy sheet material cutting industry. We adopt mix optical path and unidirectional sliding table, which minimize the impact of optical path length on laser power, enhance movement stability and reliability during cutting. Stable machine body, agile performance and software special for laser cutting will enable you to accomplish the machining with ease, whose efficiency and quality are far beyond the traditional cutting processing.

技术特点/technical features

?QS轴流式CO2激光器是金强激光在引进意大利技术的基础上，加以改进和优化的最新一代轴流大功率CO2激光器。
 QS fast axis CO2 laser device is an optimized version of the latest laser generator, adopting Italian technology.

?采用“混合光路”的原理进行设计制造，数控激光切割机床工作台的运行方式为单向滑台式。
  Designed and built with principle of mix optical path; Movement pattern of worktable is Unidirectional sliding.

?平行平面激光谐振腔，谐振腔采用稳定殷钢结构化设计，并采用快速轴流冷却配合高效率热交换器，工作气体温度恒定，激光功率稳定度达到±1%。
  Parallel-plane laser resonance cavity is structured with stable invar steel, adopts fast axial flow cooling and high-efficiency heat exchanger, so that gas temperature is constant, and lasser power stability reaches ±1%.
?全自动激光切割头高度跟踪系统，自动对焦、反应灵敏、准确。
 The cutting head equips with automatic tracking system, focusing automatically, responding quickly and accurately.

?电光转换效率高达30%以上，优于同类产品20%以上。
  Photoelectric conversion ratio is up to 30%, which is more than 20% beyond that of similar machines.

?工作气体采用稳定比例的混合气体方式，快速轴流速度智能可调。多重高真空度密封技术，保持激光工作气体的纯度，减小工作气体耗和运行成本。
 Working gases is mixed according to certain ratio, whose fast axial flow speed could be intellectually adjustable. Multi- seal vacuum technology ensures the gas purity and lowers the operation cost.

?丝杆及导轨采用全封闭式防护。
  Ball screws and guide rails are fully enclosed and protected.

?X、Y、Z三轴均采用日本松下伺服电机驱动。
X, Y, Z three axises all are built with servo motor-drivens made by Japanese Panasonic.

?箱型结构底座，经退火时效、300天自然时效、振动时效等多重去应力处理，确保日后的应用稳定可靠。

  After the annealing aging, 300 days' of natural aging, and vibration, and other multi processing of stress relief, the stable running of the box-structured base can be assured during the machine operation and working.

?国际指名光学组件和镜片，同时采用同光路反射保护功能。
  World famous pneumatic parts and optical lens, laser path reflection control function as well are adopted.

?彩色LCD、接触屏人机操作界面，操作简便，设备运行状态及参数一目了然。

  Color LCD touch-screen display is convenient for operation. All the running states and parameters are clear at a glance.

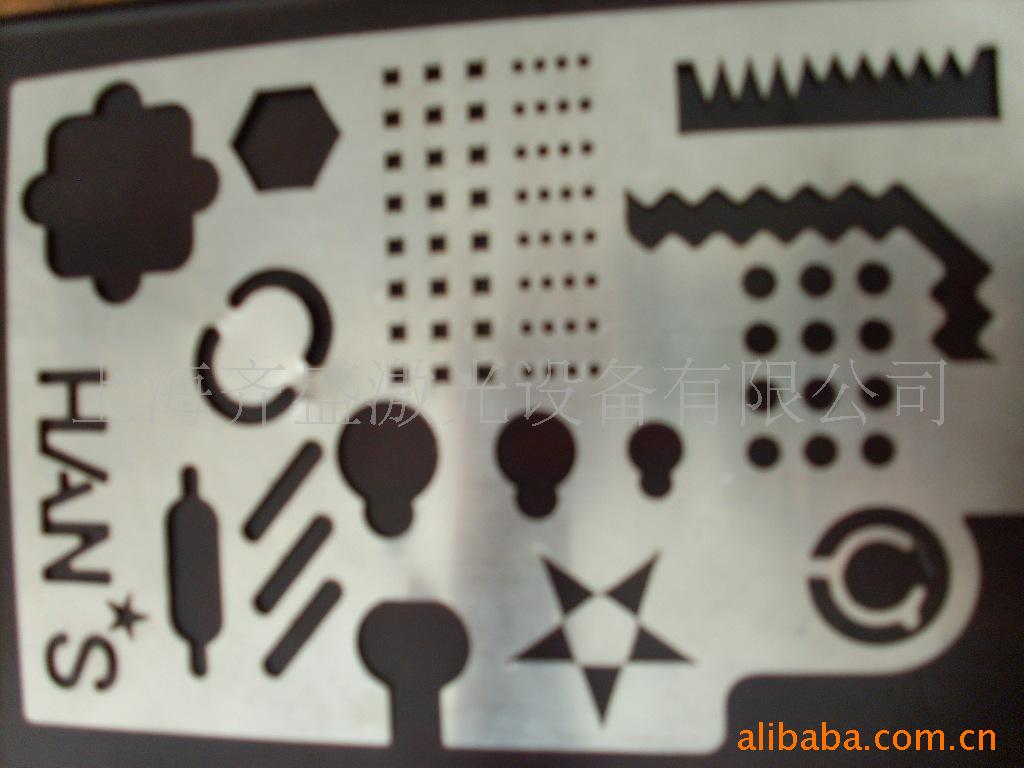

适用材料/Applicable Materials

刀模板，密度板，木板，亚克力，塑料，及其他非金属板材。铁，钢等金属板材。

Die board, MDF, wood plates, acrylic, plastic, and many other non-metals. Iron, steel and some other metals.

适用行业/Applicable Industries

刀模加工，广告装饰，家具，木制玩具, 部分金属制品加工，模型行业等。

Die processing, advertising decoration, furniture, wooden toys, some metal processing products industry, molding, etc.
