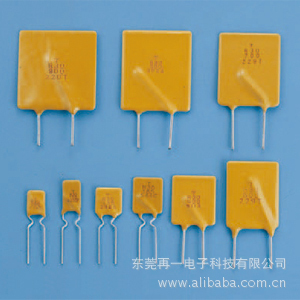

CONQUER  Resettable Fuse  可回覆式保險絲

Agency File Number
UL E201504/E319079
TUV 43486
Electrical Characteristic
Operating/Storage Temperature
-40°C to +85°C
Maximum Device Surface Temperature
In Tripped State 125°C
Passive Aging
+85°C, 1000Hours, ±5% Typical Resistance Change
Humidity Aging
+85°C, 85%R.H., 1000Hours, ±5% Typical
Resistance Change
Thermal Shock:
+85°C to -40°C, 20 times, ±10% Typical Resistance
Change
10 Times, ±5% Typical Resistance Change
Vibration
MIL-STD-202, Method 201, 1 No Change
Physical Chacteristic
Material
R30-030-250: Tin Plated Copper-Clad Steel,0.205mm2 (24AWG),ø0.51mm (0.020 in).
R30-300-900: Tin Plated Copper, 0.52mm2 (20AWG),ø0.81mm (0.032 in ).
