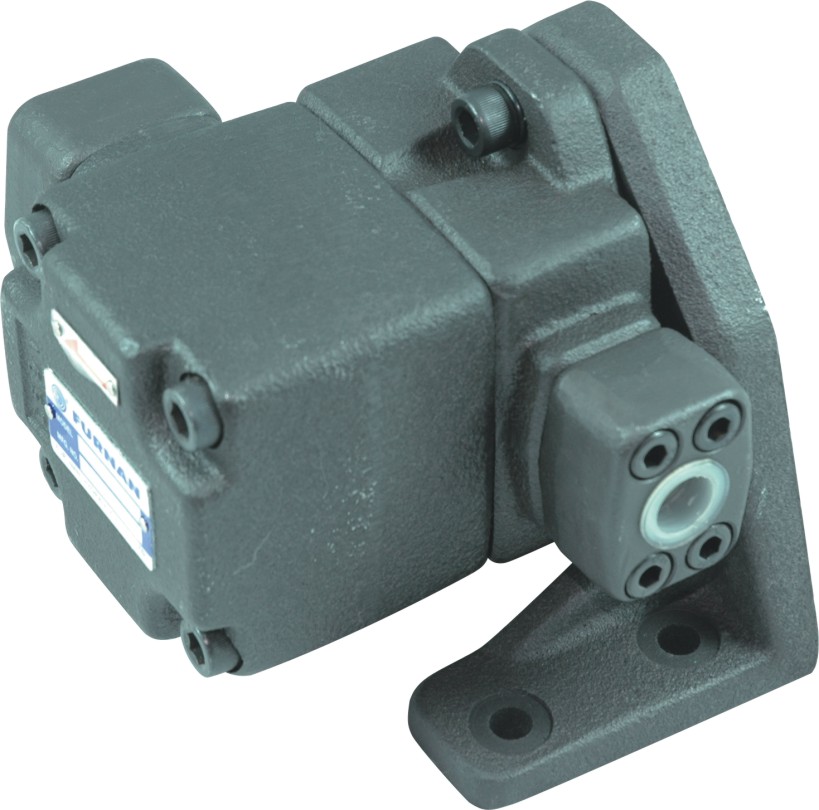

TAICIN河南办供洛阳PV2R1、PV2R2高压叶片泵
品牌/型号
TAICIN/PV2R1-23-F-R
|
 |
| |
◆低騷音，高效率，省馬力 ，高壓輪葉型幫浦，適用於塑膠射出成型機、壓鑄機、壓床、褶床、擠型機、工作母機、單能機等油壓機械。 ◆型式號碼表示法 / MODEL NUMBER DESIGNATON PV2R1──25── L──R ① ② ③ ④ ① 系列號碼Serial Nunber ②吐出量Dilivery capacity ③裝配型式Assemble model L:腳座型Foot Type F:法蘭型Frange Type ④ 回轉方向(自軸側觀之) Direction of Revolving R:順時針方向Clock wise Direction L:反時針方向counter-clockwise direction ◆性能表 / SPECIFICATION型式 號碼 MODEL | 吐出容積 cc/rev DELIVERY CAPACITY | 使用壓力kg/cm2 OPERATNG PRESS | 回轉速度 SPEED r.p.m | 配管尺寸PT PORTS SIZE | 重量 WEIIGHT (kg) | 迴轉速度SPEED( r.p.m) | 最高 MAX | 定格 RATED | 最高 MAX | 最低 MIN | 出口 OUT | 入口 IN | 腳座型 FOOT TYPE | 法蘭型 FLANGE TYPE | 1000 | 1200 | 1500 | 1800 | PV2R1-06 | 6.1 | 7.3 | 9.2 | 11.3 | 210 | 175 | 1800 | 950 | 1” | 1/2” | 11.2 | 9 | PV2R1-08 | 8.0 | 9.5 | 12.0 | 14.5 | PV2R1-10 | 10.1 | 12.2 | 15.4 | 18.4 | PV2R1-12 | 12.2 | 14.2 | 18.1 | 21.8 | PV2R1-14 | 13.7 | 17.0 | 21.5 | 25.6 | PV2R1-17 | 16.6 | 20.5 | 25.6 | 30.7 | PV2R1-19 | 18.6 | 23.0 | 28.8 | 34.5 | PV2R1-23 | 22.7 | 27.9 | 34.9 | 41.9 | PV2R1-25 | 25.3 | 30.0 | 37.3 | | PV2R1-26 | | | | | | | | | PV2R1-31 | 31.0 | 37.3 | 46.06 | | *175 | *160 | | | PV2R2-33 | 33.0 | 38.5 | 48.1 | 57.7 | 210 | 175 | 1800 | 950 | 1 1/4” | 3/4” | 23.3 | 19 | PV2R2-41 | 41.3 | 49.2 | 61.5 | 73.8 | PV2R2-47 | 47.2 | 57.8 | 71.3 | 86.6 | PV2R2-53 | 53.1 | 63.5 | 79.7 | 95.8 | PV2R2-59 | 59.2 | 71.0 | 88.8 | 106.9 | PV2R2-65 | 65.2 | 78.0 | 97.8 | 117.5 | PV2R3-76 | 76.4 | 91.5 | 114.4 | 137.2 | 210 | 175 | 1800 | 950 | 2” | 1 1/4” | 46.7 | 36.7 | PV2R3-94 | 93.8 | 113.5 | 141.6 | 169.8 | PV2R3-116 | 115.6 | 139.2 | 174.0 | 208.8 | *175 | *160 |
|
"
