我公司是生产硬质合金产品的专业厂家，主要生产硬质合金焊接刀片，机夹刀片、数控刀片、精磨铣刀片、地质矿山、拉丝模具、合金板、合金条、合金圆棒、合金金圆盘及各种非标异型产品。

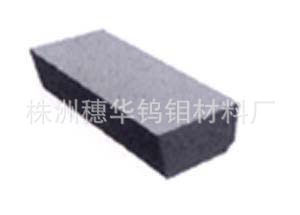

硬质合金焊接刀片
牌号 | ISO Code | 密度
g/cm3 | 硬度 HRA | 抗弯强度
MPa | |
YG3 | K05 | 15.10 | 92.0 | 1400 | |
YG6X | K10 | 14.95 | 91.5 | 1800 | |
YG6 | K15 | 14.95 | 90.5 | 1900 | |
YG8 | K20 | 14.80 | 89.5 | 2200 |
YW1 | M10 | 13.10 | 91.6 | 1600 | |
YW2 | M20 | 13.00 | 90.6 | 1800 | |
YT15 | P10 | 11.4 | 91.5 | 1600 | |
YT14 | P20 | 11.6 | 90.8 | 1700 | |
YT5 | P30 | 12.9 | 90.5 | 2200 | |
| TYPE A |
 | Type | 规格 (mm) | L | t | S | r | a° | A5 | 5 | 3 | 2 | 2 | - | A6 | 6 | 4 | 2.5 | 2.5 | - | A8 | 8 | 5 | 3 | 3 | - | A10 | 10 | 6 | 4 | 4 | 18 | A12 | 12 | 8 | 5 | 5 | 18 | A16 | 16 | 10 | 6 | 6 | 18 | A20 | 20 | 12 | 7 | 7 | 18 | A25 | 25 | 14 | 8 | 8 | 18 | A32 | 32 | 18 | 10 | 10 | 18 | A40 | 40 | 22 | 12 | 12 | 18 | A50 | 50 | 25 | 14 | 14 | 18 |
|
|
| TYPE B |
 | Type | 规格(mm) | L | t | S | r | a° | B5 | 5 | 3 | 2 | 2 | - | B6 | 6 | 4 | 2.5 | 2.5 | - | B8 | 8 | 5 | 3 | 3 | - | B10 | 10 | 6 | 4 | 4 | 18 | B12 | 12 | 8 | 5 | 5 | 18 | B16 | 16 | 10 | 6 | 6 | 18 | B20 | 20 | 12 | 7 | 7 | 18 | B25 | 25 | 14 | 8 | 8 | 18 | B32 | 32 | 18 | 10 | 10 | 18 | B40 | 40 | 22 | 12 | 12 | 18 | B50 | 50 | 25 | 14 | 14 | 18 |
|
|
| TYPE C |
 | Type | 规格 (mm) | L | t | S | a° | C5 | 5 | 3 | 2 | - | C6 | 6 | 4 | 2.5 | - | C8 | 8 | 5 | 3 | - | C10 | 10 | 6 | 4 | 18 | C12 | 12 | 8 | 5 | 18 | C16 | 16 | 10 | 6 | 18 | C20 | 20 | 12 | 7 | 18 | C25 | 25 | 14 | 8 | 18 | C32 | 32 | 18 | 10 | 18 | C40 | 40 | 22 | 12 | 18 | C50 | 50 | 25 | 14 | 18 |
|
|
| TYPE D |
 | Type | 规格 (mm) | L | t | S | D3 | 3.5 | 8 | 3 | D4 | 4.5 | 10 | 4 | D5 | 5.5 | 12 | 5 | D6 | 6.5 | 14 | 6 | D8 | 8.5 | 16 | 8 | D10 | 10.5 | 18 | 10 | D12 | 12.5 | 20 | 12 |
|
|
| TYPE E |
 | Type | 规格 (mm) | L | t | S | a° | E4 | 4 | 10 | 2.5 | - | E5 | 5 | 12 | 3 | - | E6 | 6 | 14 | 3.5 | 9 | E8 | 8 | 16 | 4 | 9 | E10 | 10 | 18 | 5 | 9 | E12 | 12 | 20 | 6 | 9 | E16 | 16 | 22 | 7 | 9 | E20 | 20 | 25 | 8 | 9 | E25 | 25 | 28 | 9 | 9 | E32 | 32 | 32 | 10 | 9 |
|
|
| |
