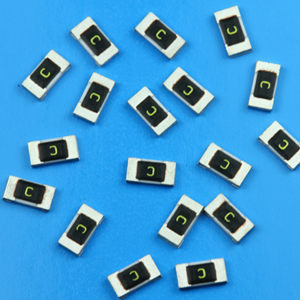

CONQUER Thin Film Chip Fuse 薄膜晶片保險絲
3.1mmx1.6mm
產品說明資訊(Product Description Information) |
| 產品特色 | 薄膜晶片保險絲為陶瓷基底及以銅錫合金之線路設計
額定電流 0.2A-7A， 額定電壓 63VDC & 32VAC
特殊的多膜層結構使熔斷特性穩定
高防爆性與表面耐刮特性
適用於含鉛與無鉛之回焊爐和波焊製程
無鹵素元件,符合RoHS要求
-55℃至+125℃工作溫度範圍 |
| Features | Thin Film structure design with ceramic body and copper & tin alloy element
Offer wide range of current ratings from 0.2A-7 A & voltage up to 63 VDC and 32 VAC
Special multi-layer construction makes the fusing characteristics stable
Good explosion-proof & Scratch durable characteristics
Suitable for both lead / lead-free reflow and wave soldering process
Products meet 100% RoHS, HF & REACH requirement
Operating temperature range: -55°C to +125°C |
| 安裝方式 | 貼片 |
| Installation | SMD |
