技术参数：
太阳能功率： 0.7W
市电输入： AC 100V-240V
输出电压： DC 5V
输出电流：DC 500mA
内置锂电池： 2500mA   可选择

充电方法：
方法1：用市电（AC100V-240V）给内置锂电池充电时，
指示灯亮绿色，约4小时左右可以充满，指示灯熄灭表
示电池已充满。
方法2：将太阳能充电器放置与阳光下就可给内部自带
的电池充电了，绿灯亮表示正在充电，在阳光下约10-
14小时可以充满。因阳光强弱而异。

使用方法：
内置电池充满后，就可以给手机、数码相机、MP3、
MP4等数码产品充电了。用充电连接线将太阳能充电器
与手机或数码相机、MP3、MP4等数码产品连接好就可
以充电。充电时，指示灯亮红色，表明充电正常。

建议：第一次使用，用市电将内置电池充满，有利于延
长电池的使用寿命。

注意事项：
内部设有保护电路，当出现过载、短路时保护电路
动作，输出就没电压了。解除保护的方法有二：
1.用自带充电器或者电脑USB口给充电器充电数秒。
2.在强阳光下晒一会，到绿灯亮。

特色亮点:
完美显示内部电量

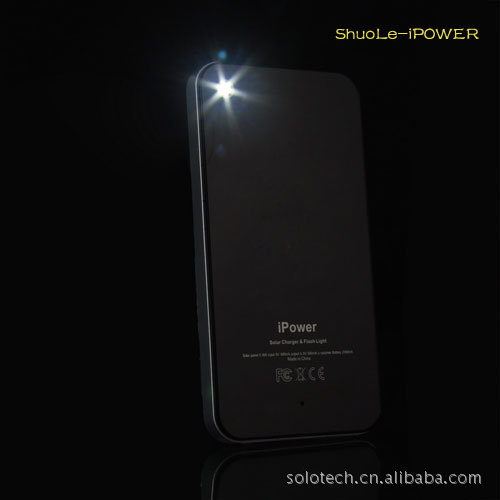

带手电筒功能

Tech factors：
 Solar panel: 0.4W – 0.7W
 AC input: AC100V-240V
 DC output: DC5.5V
 Max output current: DC 500mA-800mA
 Li-ion battery: 1500mA-2600mA/h

Charge:
Method I
 When charge the lithium battery by (AC100V-240V),
Indicator light turn green, and it take abut 4 hours to fully
Charge the battery, when battery is fully charge the indicator
Light go out.
Method 2
 Put the charger toward the sun, the solar panel begin to
Charge the Lithium battery and green indicator light turn on
It takes about 10-14 hours for fully charge.

Instruction:
 When Lithium battery is fully charged, it can charge
Mobile phone, digital camera, Mp3,Mp4, and other digital
Products. Choose the suitable DC output level, connect the
Charger with mobile phone and other digital products, the
It begins to charge. When charging mobile phone and other
Digital products, indicator light turn red,

Accessories:
 Solar charger 1pc, AC adapter 1pc, Convertible into
Input Line charge output line 1pc, plug adaptors 5pc
(For Motorola, Samsung, Nokia, Siemens, Sony Ericson),
Instruction sheets share, neutral package box 1pc.

Trouble shooting:
 Protection circuit is designed, when overload and short
Circuits happen the output voltage will be cut down.

Solution:
1 Charge the charger by (AC 100-240V) for several seconds.
2 Put the charger under sunlight then it will revive the output
