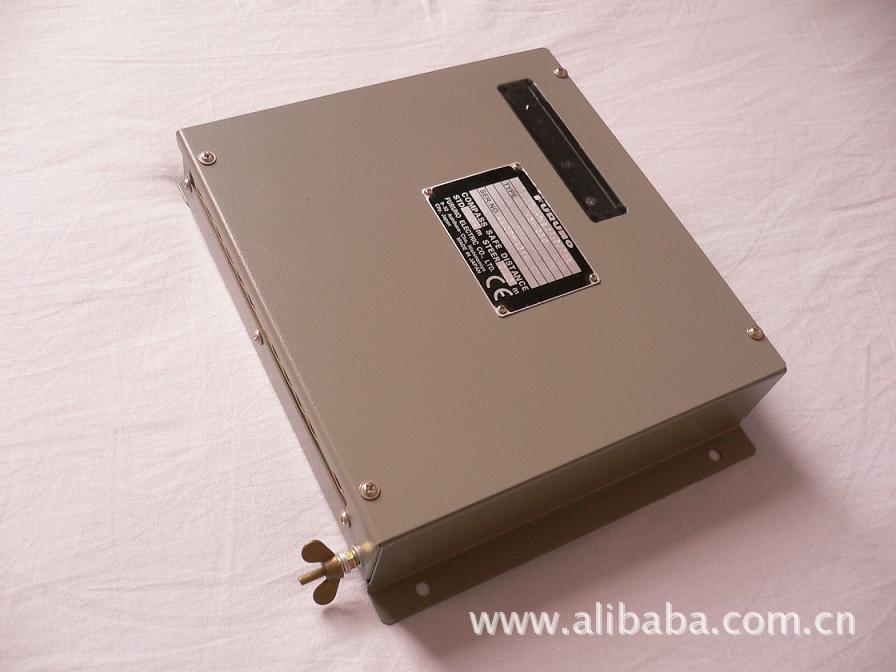

日本古野（MD－550型）分配器使用方法
接法1：作为两路独立分配器使用（一路接GPS信号，另一路接航向HDT信号，各路分别输出8路RS－422和RS－232信号）时，J1：1－3，2－4 相连接，J2：空。
INPUT |
DISTRIBUTION |
1 3 5 RS422×6, RS232×1, NMEA×1
IIN1 (DATA) J1
INPUT |
DISTRIBUTION |
2 4 6 RS422×6, RS232×1, NMEA×1
IN2 (SHIFT)
IN2 (SHIFT) | OUT7 (SHIFT) | OUT8 (SHIFT) | OUT9 (SHIFT) | OUT10 (SHIFT) | OUT11 (SHIFT) | OUT12 (SHIFT) | RS232 (SHIFT) | NMEA (SHIFT) | 24VDC | |||||||||||||||
RD2-H/A | RD2-C/B | TD7-A | TD7-B | FG | TD8-A | TD8-B | FG | TD9-A | TD9-B | FG | TD10-A | TD10-B | FG | TD11-A | TD11-B | FG | TD12-A | TD12-B | FG | TD14-H | TD14/16-C | TD16-H | ╋ | |
2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | 46 | 48 | |
1 | 3 | 5 | 7 | 9 | 11 | 13 | 15 | 17 | 19 | 21 | 23 | 25 | 27 | 29 | 31 | 33 | 35 | 37 | 39 | 41 | 43 | 45 | 47 | |
RD1-H/A | RD1-C/B | TD1-A | TD1-B | FG | TD2-A | TD2-B | FG | TD3-A | TD3-B | FG | TD4-A | TD4-B | FG | TD5-A | TD5B | FG | TD6-A | TD6-B | FG | TD13-H | TD13/15-C | TD15-H | ━ | |
IN1 (DATA) | OUT1 (DATA) | OUT2 (DATA) | OUT3 (DATA) | OUT4 (DATA) | OUT5 (DATA) | OUT6 (DATA) | RS232 (DATA) | NMEA (DATA) | 0V | |||||||||||||||
接法2：作为分配器和航向发生器使用（1、2路同时接GPS信号，第1线路输出8路GPS信号，第2线路输出8路航向HDT和ROT旋转率信号）时，J1：1－3，J2：1－2相连接。
INPUT |
DISTRIBUTION |
1 3 5 RS422×6, RS232×1, NMEA×1
IIN1 (DATA) J1
INPUT |
DISTRIBUTION |
2 4 6 RS422×6, RS232×1, NMEA×1
IN2 (SHIFT)
HDT，ROT |
J2
接法3：作为单一路放大分配器时，输出16路信号。（J1：1－3，5－6相连接或J1：2－4，5－6相连接，J2：空）
INPUT |
DISTRIBUTION |
1 3 5 RS422×6, RS232×1, NMEA×1
IIN1 (DATA) J1
INPUT |
DISTRIBUTION |
2 4 6 RS422×6, RS232×1, NMEA×1
IN2 (SHIFT)
INPUT |
DISTRIBUTION |
1 3 5 RS422×6, RS232×1, NMEA×1
IIN1 (DATA) J1
INPUT |
DISTRIBUTION |
2 4 6 RS422×6, RS232×1, NMEA×1
IN2 (SHIFT)
输入电源：24VDC，48脚接＋，47脚接－。
