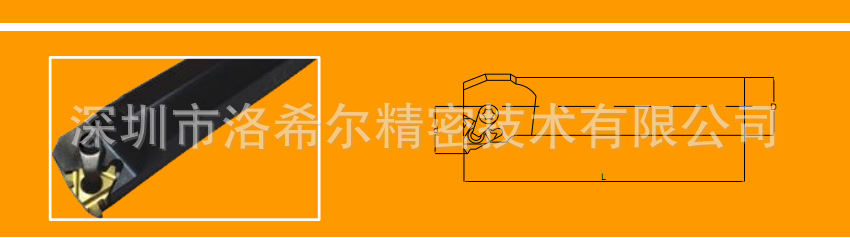

ALEX螺纹车刀 螺纹车刀杆 螺纹牙刀杆 梯形螺纹刀杆 CNR/L0020
Ordering code | Dimensions mm | Insert | Screw | Wrench | Shim | Screw |
D | L | L1 | d |
| | | | | | | | | |
CNR/L0010 K11 | 10 | 125 | 25 | 7.4 | 11NR/L | M2.5*8 | T8 | X | X |
CNR/L0012 K11 | 12 | 125 | 32.5 | 8.4 |
CNR/L0013 M16 | 16 | 150 | 32 | 10.2 | 16NR/L | M3.5*9 | T15 | GXE16 GXN16 | M3*6N |
CNR/L0016 M16 | 16 | 150 | 40 | 11.7 |
CNR/L0020 Q16 | 20 | 180 | 40 | 13.7 |
CNR/L0020 R16 | 20 | 200 | 40 | 13.7 |
CNR/L0025 R16 | 25 | 200 | 45 | 16.2 |
CNR/L0032 S16 | 32 | 250 | 50 | 19.7 |
CNR/L0040 T16 | 40 | 300 | 55 | 23.7 |
CNR/L0050 U16 | 50 | 350 | 60 | 28.7 |
CNR/L0020Q22 | 20 | 18- | 45 | 15.6 | 22NR/L | M4*16 | T20 | X | X |
CNR/L0025 R22 | 25 | 200 | 47 | 18.1 | GXE22 GXN22 | M4*8N |
CNR/L0032 S22 | 32 | 250 | 55 | 21.6 |
CNR/L0040 T22 | 40 | 300 | 60 | 25.6 |
CNR/L0050 U22 | 50 | 350 | 70 | 30.6 |
CNR/L0040 T27 | 40 | 300 | 65 | 26.6 | 27NR/L | M5*16 | T20 | GXE27 GXN27 | M5*8N |
CNR/L0050 U27 | 50 | 350 | 75 | 31.6 |
