产品规格参数
No | 项目 | 性能指标 | No | 项目 | 性能指标 |
1 | 使用温度范围Temperature | -25～+65℃ | 6 | 动作力Actuating Force | 200±100 gf |
2 | 额定负荷Rated Load | DC12V 2A | 7 | 寿命Mechanical Life | 500,000 cycles |
3 | 拉触电阻Contact Resistance | ≤100mΩ | 8 | 电器寿命Electrical life | 300,000 cycles |
4 | 绝缘电阻Insulation Resistance | ≥100MΩ DC500V | 9 | Ambient Humidity: | ＜85%RH |
5 | 耐压Withstand Voltage | AC500V 1min | 10? | | |
Mechanical life：500,000 cycles min
Electrical life：300,000 cycles min
Contact Rating：0.2Amps @60 VDC
Insulation Resistance：＞100M Ω DC500V
Withstand Voltage：AC500V 1 minute
Contact Resistance：＜100m Ω
Ambient Humidity：＜85%RH
Operating Temper.：-25℃to 65℃
Operating Force：200gf
Soldering process：Hand Soldering：Use a soldering ironof 30 watts，controlled at 380℃approximately 3
seconds while applying solder。

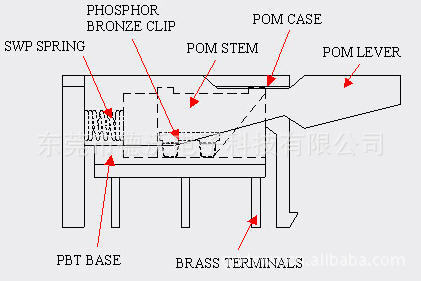

Lever：POM
Case：POM
Stem：POM
Clip：Phosphor bronze?
Spring：SWP
Base：PBT
Terminals：Brass?
?
?
