All you need to do is adjusting the fold plates and press the START key and paper will be folded into four different folding patterns. High folding speed up to 170 A4/min offering high productivity.
Paper Size | A4 Actual paper width: 100mm to 220mm Actual paper length: 125mm to 360mm |
Paper Type | 40gsm to 157gsm |
Paper Quality | Coarse paper, fine paper and recycled paper |
Folding Speed | 150 sheets A4/minute |
Folding Patterns | Letter fold, single fold, double fold, Zigzag fold |
Folding Deviations | Horizontal deviation: within+1mm Vertical deviation: within+2mm |
Paper Feed Plate capacity | 150sheets 80gsm paper |
Paper Feeding mode | Automatic by paper feed roller |
Paper Feeding & Ejecting Direction | Left side in left side out |
Control Panel | LCD display, buttons |
Malfunction Detection | Emergency stop, error messages |
Jammed Paper | Automatic emergency stop |
Removing Jammed Paper | Manually |
Dimensions | 480 (W)×356 (D)×296(H)mm |
Weight | 18.5Kg |
Voltage | AC 220V /50Hz |
Power | 25W/ 0.25A |
序 号 | 项 目 | 规 格 |
1 | 适用纸张大小 | A4进纸宽度：100mm~220mm进纸长度：125mm~360mm |
2 | 适用纸张重量 | 30gsm～157gsm |
3 | 适用纸质 | 粗纸、优质纸、再生纸 |
4 | 折页速度 | 150张A4纸/分钟 |

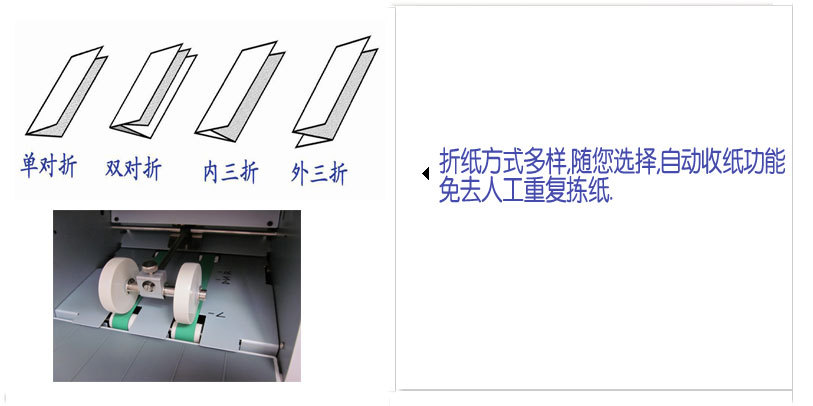

5 | 折页类型 | 单对折、双对折、内三折、外三折四种折法 |
6 | 允许折页偏差 | 横向偏差：±1mm以内 纵向偏差：±2mm以内 |
7 | 进纸台承纸量 | 150张80gsm纸 |
8 | 进纸方式 | 搓纸轮自动搓纸 |
9 | 进纸与出纸方向 | 左进左出 |
10 | 折纸速度 | 均速120张/分钟（80gsm） |
11 | 折纸挡板移动 | 手动移位 |
12 | 操作面板 | LCD显示，按键操作 |
13 | 异常检测功能 | 联锁停机装置，检测有显示 |
14 | 卡纸处理 | 自动停机 |
15 | 卡纸清除方式 | 手动清除 |
16 | 机器体积 | 使 用 时：360mm(W)×685mm(D)×452mm(H) 非使用时：360mm(W)×324mm(D)×272mm(H) |
17 | 机器净重 | 19kg |
18 | 电 压 | AC 220V /50Hz |
19 | 功 率 | 25W / 0.25A |
十字折视频操作请拷贝以下网址:
/id_XMTU3ODM1NDEzMg==.html
