ESIGNATION 品名:PHONE JACK		MODEL 型號：PJ	EDITION 版本：01 PAGE 頁碼：1 of
1	RATING 額定值:		DC 30V 0.2A
2	OPERATION TEMPERATURE RANGE 使用溫?範圍：		-30~+70℃
3	PRESERVATIVE TEMPERATURE RANGE：保存溫?範圍：		-40~+85℃

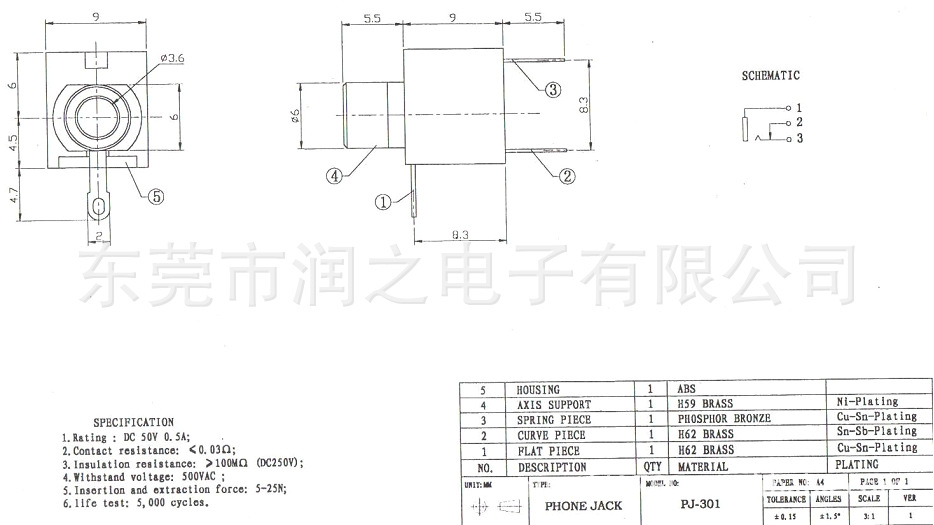

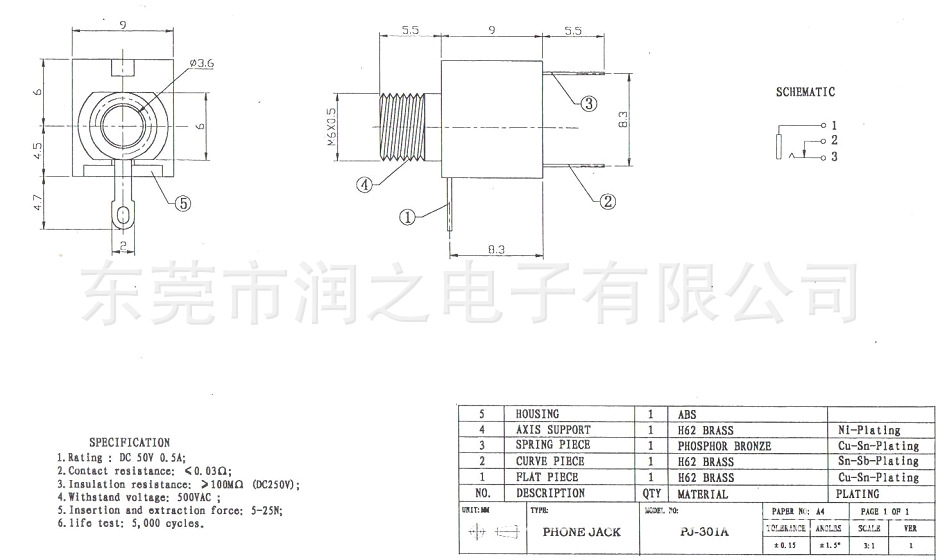

4	CONSTRUCTION DIMENSION 結構尺寸：		Apply to the appended drawing：符合附加圖紙
	ITEM 项目	TEST CONDITION 測試條件	SPECIFICATION 規格
5	ELECTRONICAL CHARACTERISTICS.電氣性能.
5A	CONTACT RESISTANCE 接觸阻抗	Being measured at 1KHz small current contact resistance meter在 1KHZ 小電?下測?	30mΩ max30 毫歐以下.
5B	NSULATION RESISTANCE絕緣阻抗	Measurements shall be made following application of DC500V potential across terminals and across terminals and frame for 1 minute.在端子之間和端子與殼之間加 DC 500V 條件下,持續 1 分鐘測?.	100MΩ min.100 兆歐以上.
5C	WITHSTAND VOLTAGE耐電壓	AC 500V (50Hz or 60Hz) shall be applied across terminals and across terminals and frame for one minute在端子之間和端子與殼之間加 AC 500V(50HZ 或60HZ)條件下,持續 1 分鐘測?	There shall be no breakdown.無擊穿現象出現
6	MECHANICAL CHARACTERISTICS.機械性能
6A	INSERTION AND WITHDRAW FORCE插拔?	Being measure at across spring piece and across matching plug for ergometer用測?計在插頭與彈片之間進?測?	Insertion and extraction force 3-20N,插拔?3-20N
6B	TERMINALSTRENGTH端子強?	A static force of 500gf being applied in one direction on the tip of terminal for 1 minute.一個 500 克之靜負荷施加於端子頂部的一個方向持續 1 分鐘	There shall be no sign of damage mechanically and electrically無任何迹象顯示機械及電氣性能之損壞.
7	DURABILITY.耐久性
7A	SOLDERING TEST.可焊性試驗	The tip of the terminals shall be dipped 2mm in the solder bath at a temperature of 230±5℃ for 3±0.5sec端子頂部被浸入焊錫池 2mm 深,溫? 230±5℃時間 3 ±0.5 秒	A new uniform coating of solder shall cover a minimum of 90 of the surface being immersed浸入的部分 90%以上表面將被錫覆蓋
7B	RESISTANCE TO SOLDERING HEAT 耐焊接熱	Soldering area:t/2 of P.C.B thickness.temperature:250 ±5℃ Sinking time: 5±1S焊接面積：印刷基板的 1/2 厚?處.焊接溫?：250±5℃，焊接時間：5±1 秒。	No damage (electrical and mechanical)無?常。（電氣、機械特性）
7C	LIFETEST壽命試驗	5,000 cycles of operation at a rate of 20-30 cycles per minute with unloading無負載條件下,每分鐘 20-30 次的速?操作 5,000 次	(1). Contact resistance . 40mΩ max 接觸阻抗 40 毫歐以下. (2). Insertion and withdraw force 30 initial value 插拔?變化範圍初始值 30% (3). ITEM 專案-5B (4). ITEM 專案-5C (5). ITEM 專案-6B
7D	HEATTEST耐熱試驗	85 ± 2℃ for 48 hours after test keep in normal condition for 30 minutes.在 85±2℃環境中放 48 小時,再放在正常環境中 30 分鐘後進?測試	(1). Contact resistance 50m Ω max.接觸電阻 50 毫歐以下 (2). Insulation resistance. 50MΩ min. 絕緣電阻 50 兆歐以上 (3). There shall be no sign of damage mechanically and electrically. 無任何迹象顯示機械及電器性能之損壞.
7E	HUMIDITYTEST耐濕試驗	The condition of temperature 40±2℃ and humidty 90-95% for 48 hrs. after test keep in normal condition for 30 min.在溫? 40±2℃，濕? 90-95%環境中放 48 小時,再放在正常環境中 30 分鐘後進?測試。
7F	COLD TEST.耐?試驗	At –40±2℃ for 48 hrs. after test keep in normal condition for 30 min. 在-40±2℃環境中放 48 小時,再置於正常環境中 30 分鐘後進?測試。
7G	SALT SPRAY TEST鹽霧試驗	At 5% Nacl liquor for 24 hours, after washing, keep in normal condition for 30 min. 浸入 5%的 Nacl 溶液中 24 小時，用水清洗並在室溫下放置 30 分鐘	Without excessive Corrosion or crack in appearance 表面無明顯腐蝕或?紋
8	STANDARD CONDITION 試驗、測定?態
	Unless otherwise specified, the test and measurements shall be carried out as follows: Ambient temperature 溫?： 5-35℃ Relative humidity 相對濕?：45~85% Air pressure 氣壓：86~106kPa(860~1060mbar) However if doubt arises on the decision based on the measured values under the above-mentioned conditions, the following condition shall be employed:但在對判定産生疑義時，按下述?態實施： Ambient temperature 溫?：20±2℃ Relative humidity 相對濕?：65±5% Air pressure 氣壓：86~106kPa(860~1060mbar)
