型式 | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) |
CH105A-3T | 2000 | 900 | 400 | 840 | 750 | 550 |
CH105A-5T | 2000 | 1000 | 400 | 840 | 750 | 550 |
CH105A-10T | 2150 | 1100 | 520 | 960 | 750 | 550 |
CH105A-15T | 2150 | 1100 | 520 | 960 | 750 | 550 |
CH105A-20T | 2150 | 1100 | 520 | 980 | 750 | 550 |
CH105A-30T | 2300 | 1200 | 520 | 990 | 900 | 550 |
CH105A-50T | 2300 | 1200 | 520 | 1000 | 900 | 550 |
规范
规格 | CH105A-3 | CH105A-5 | CH105A-10 | CH105A-15 | CH105A-20 | CH105A-30 | CH105A-50 |
理论出力 | 3T | 5T | 10T | 15T | 20T | 30T | 50T |
行程范围 | 250mm | 350mm | 350mm | 350mm | 350mm | 350mm | 350mm |
马达功率 | 2HP(1.5kw) | 2HP(1.5kw) | 3HP(2.2kw) | 5HP(3.7kw) | 5HP(3.7kw) | 7.5HP(5.5kw) | 7.5HP(5.5kw) |
工作面积 | 460×310 | 500×350 | 500×350 | 500×350 | 550×350 | 550×400 | 550×400 |
下压速度 | 100mm/sec | 100mm/sec | 80mm/sec | 80mm/sec | 80mm/sec | 80mm/sec | 80mm/sec |
上升速度 | 100mm/sec | 100mm/sec | 100mm/sec | 100mm/sec | 100mm/sec | 100mm/sec | 100mm/sec |
落料孔尺寸 | 200*200 | 200*200 | 200*200 | 300*230 | 300*230 | 300*230 | 300*230 |
操作压力 | 6Mpa | 6Mpa | 13Mpa | 9.5Mpa | 13Mpa | 17Mpa | 16Mpa |
电源 | AC380V三相 | AC380V三相 | AC380V三相 | AC380V三相 | AC380V三相 | AC380V三相 | AC380V三相 |
操作种类 | 自动/手动 | 自动/手动 | 自动/手动 | 自动/手动 | 自动/手动 | 自动/手动 | 自动/手动 |
操作方式 | 双手操作 | 双手操作 | 双手操作 | 双手操作 | 双手操作 | 双手操作 | 双手操作 |
本机重量 | 350Kg | 350Kg | 500Kg | 800Kg | 900Kg | 1200Kg | 1500Kg |

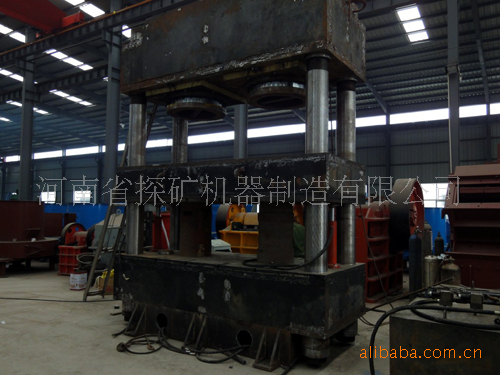

CH105A系列
设计特点d;l;l;sdl f;f;sld
1.四柱三板式,中板为工作板,运行平稳,中板装有精密
自调轴承套,下压精密度高,运行平稳，其工作高度
及有效工作台可根据客户实际要求订制.
2.中、底板设有“﹟”字T型槽。配有落料孔及
吹气装置,提高生产之效率.
3.耗电少,保养方便.双手操作,加长型光电保护,安全性高。
4.适用于各种压铸件,铝制品,铅,塑胶件,冲边整形等.
5.出力3T-50T供选用.
Features of Design j
1.Three plate-type , median plate charge
four post for board , operation working
are stable , the route or distance of
2.Middle , bottom board are set up having
"﹟" character T type slot.
3.Consume an electricity stopping taking .
Bimanualness , photoelectricity prote
ction , security are high.
4.Apply to lead , plastic cement , iron
towards the edge using , there is a pro
duct in the side machine.
5.3 T-50T confession selects and uses
an output power electricity stopping
taking . Bimanualness , photoelectricity.
